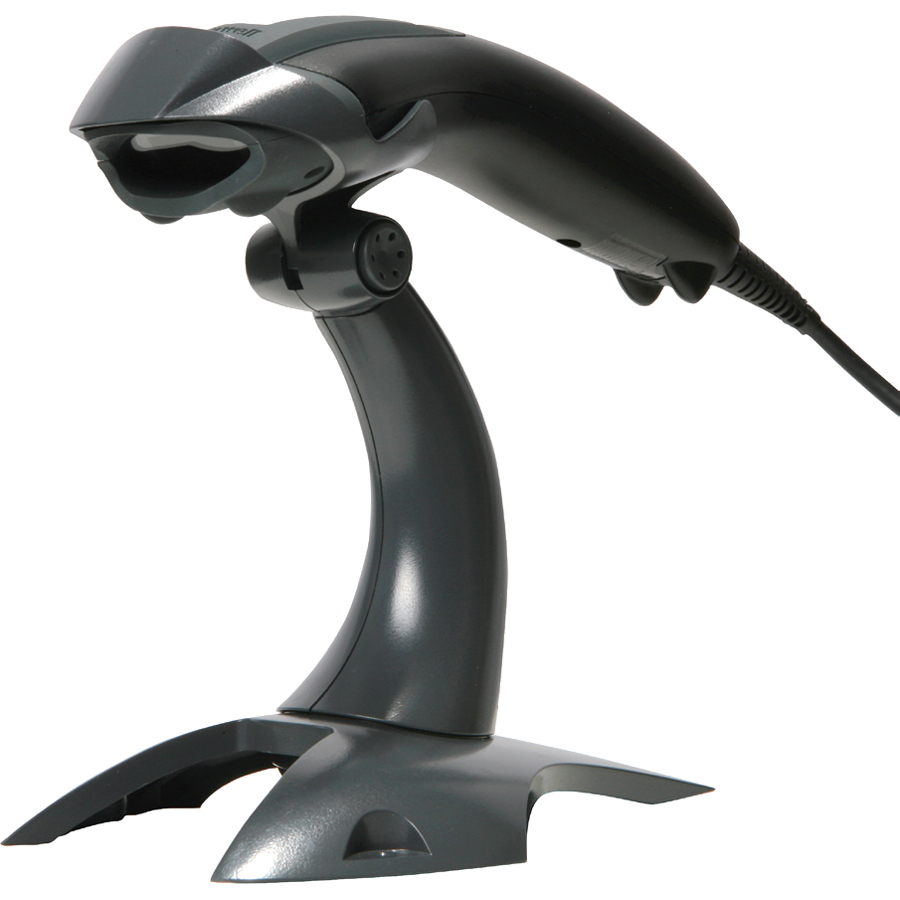

Honeywell 1400g – Barcode Scanner – Corded – 2D

The Honeywell Voyager 1400g Area-Imaging Scanner is designed to adapt to the evolving needs of businesses, providing exceptional performance for reading 2D and linear bar codes. This reliable scanner combines versatility with affordability, enabling users to capture vast amounts of data with ease, whether from printed bar codes or mobile screens. With the ability to upgrade scanning capabilities as requirements change, the Voyager 1400g is an investment that ensures top-notch performance without the need for expensive additional hardware.

Key Features

• Reliable Data Collection: Omnidirectional scanning of virtually all linear and 2D bar codes, including mobile and low-quality bar codes.
• Remote MasterMind™ Ready: Significantly lowers ownership costs with a turnkey remote management solution.
• Future Proof: Affordable scanning for current and future barcode needs all in one device.
• Flexible Licensing Solution: Basic functionality with the option to purchase software licenses for advanced features as needed.

Specifications

• Mechanical:
  • Dimensions: 43 mm x 180 mm x 66 mm (1.7" x 7.1" x 2.6")
  • Weight: 119 g (4.2 oz)
• Electrical:
  • Input Voltage: 4.0 to 5.5 VDC
  • Operating Power: 2 W (400mA @ 5 VDC)
  • Standby Power: 0.45 W (90mA @ 5 VDC)
• Environmental:
  • Operating Temperature: 0°C to 40°C (32°F to 104°F)
  • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
  • Humidity: 0% to 95% relative, non-condensing
  • Drop: Withstands 30 drops from 1.5 m (5 ft) onto concrete
  • Environmental Sealing: IP42
  • Light Levels: 0 to 100,000 lux (9,290 foot-candles)
• Scan Performance:
  • Scan Pattern: Area Image (640 x 480 pixel array)
  • Motion Tolerance: Up to 10 cm/s (4 in/s) for 13 mil UPC at optimal focus
  • Scan Angle: Horizontal 42.4°; Vertical 30.8°
  • Symbol Contrast: 35% minimum reflectance difference
  • Pitch, Skew: 60°, 70°
  • Decode Capability:
    • 1400g1D: All standard 1D symbologies
    • 1400gPDF: All standard 1D and PDF417 symbologies
    • 1400g2D: All standard 1D, PDF417 and 2D symbologies
• Warranty: 5 year factory warranty
