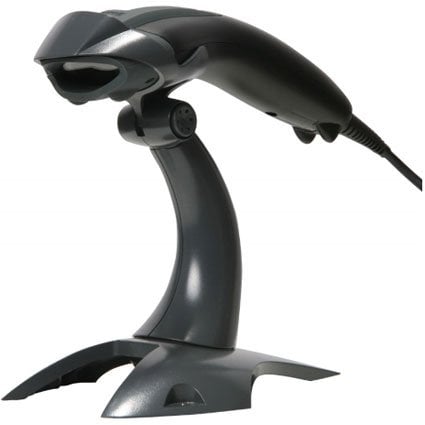

Honeywell 1400g – Barcode Scanner – 1D – Scanner with Cable and Stand

Part Number: 1400G2D-2USB-1-N
Model: 1400g
to get Free Ground Shipping on your order.
3-year Premium Plus ($100.28)
3-year Premium ($45.58)
No Support
$285.28
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  USB Kit: Omni-directional 1D, PDF417, 2D, black, rigid presentation stand (STND-19R02-002-4), USB Type A 1.5m straight cable (CBL-500-150-S00), assembled in Mexico

Honeywell 1400g Barcode Scanner Model Overview

The Honeywell Voyager 1400g Area-Imaging Scanner is designed to adapt to the evolving needs of businesses, providing exceptional performance for reading 2D and linear bar codes. This reliable scanner combines versatility with affordability, enabling users to capture vast amounts of data with ease, whether from printed bar codes or mobile screens. With the ability to upgrade scanning capabilities as requirements change, the Voyager 1400g is an investment that ensures top-notch performance without the need for expensive additional hardware.


Key Features

  • Reliable Data Collection: Omnidirectional scanning of virtually all linear and 2D bar codes, including mobile and low-quality bar codes.
  • Remote MasterMind™ Ready: Significantly lowers ownership costs with a turnkey remote management solution.
  • Future Proof: Affordable scanning for current and future barcode needs all in one device.
  • Flexible Licensing Solution: Basic functionality with the option to purchase software licenses for advanced features as needed.

Specifications

  • Mechanical:
    • Dimensions: 43 mm x 180 mm x 66 mm (1.7" x 7.1" x 2.6")
    • Weight: 119 g (4.2 oz)
  • Electrical:
    • Input Voltage: 4.0 to 5.5 VDC
    • Operating Power: 2 W (400mA @ 5 VDC)
    • Standby Power: 0.45 W (90mA @ 5 VDC)
  • Environmental:
    • Operating Temperature: 0°C to 40°C (32°F to 104°F)
    • Storage Temperature: -40°C to 60°C (-40°F to 140°F)
    • Humidity: 0% to 95% relative, non-condensing
    • Drop: Withstands 30 drops from 1.5 m (5 ft) onto concrete
    • Environmental Sealing: IP42
    • Light Levels: 0 to 100,000 lux (9,290 foot-candles)
  • Scan Performance:
    • Scan Pattern: Area Image (640 x 480 pixel array)
    • Motion Tolerance: Up to 10 cm/s (4 in/s) for 13 mil UPC at optimal focus
    • Scan Angle: Horizontal 42.4°; Vertical 30.8°
    • Symbol Contrast: 35% minimum reflectance difference
    • Pitch, Skew: 60°, 70°
    • Decode Capability:
      • 1400g1D: All standard 1D symbologies
      • 1400gPDF: All standard 1D and PDF417 symbologies
      • 1400g2D: All standard 1D, PDF417 and 2D symbologies
  • Warranty: 5 year factory warranty
Honeywell 1400G2D-2USB-1-N Barcode Scanner Overview

2D bar codes are becoming increasingly popular across a wide range of industries for a number of reasons. Some enterprises have a desire to capture large amounts of data, despite space constraints, while others are being required to read 2D bar codes due to government regulations or supplier mandates. And an even larger group of enterprises simply have the desire to leverage emerging trends that require area-imaging technology, today or in the future, without needing to purchase additional scanning hardware. Enterprises that recognize the importance of upgrading to area-imaging scanners are generally unwilling to accept a decline in scan performance. They are also looking for a solution that is capable of reading traditional paper-based bar codes, as well as bar codes found on alternative mediums, such as mobile phone screens. Built on the platform of Honeywell's world-renowned Voyager series of hand-held linear scanners, the Voyager 1400g delivers omnidirectional reading of linear bar codes, plus the ability to affordably upgrade the device to enable PDF and 2D bar code scanning-at the time of purchase or as scanning needs evolve. Performing at speeds that are comparable to laser-based scanners, the versatile and reliable Voyager 1400g can be customized to meet current and future scanning needs, lowering the total cost of ownership. With no need for additional functionality beyond linear and 2D bar code scanning, many enterprises are unwilling to pay for fully-featured areaimaging scanners. The Voyager 1400g enables PDF and 2D bar code scanning without extra value-added features, such as advanced image capture and processing applications, allowing Honeywell to offer 2D scanning at an attractive price. The Voyager 1400g offers an exceptional value for enterprises that require the versatility of area-imaging technology today or may need it in the future. Produced by a company with more than 15 years of experience in engineering quality area-imaging solutions, Honeywell's Voyager 1400g area-imaging scanner is a smart investment.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • 1400g1D: all standard 1D symbologies
  • 1400gPDF: all standard 1D and PDF417 symbologies
  • 1400g2D: all standard 1D, PDF417 and 2D symbologies
Image Sensor Type:
Imager
Scan Pattern:
  • Omni-directional
  • Area
Scanning Distance:
13.70"
Field of View (Horizontal):
42°
Field of View (Vertical):
31°
Reading Angle (Skew):
70°
Reading Angle (Pitch):
60°
Maximum Ambient Light:
100000 lux
Drop Specification:

Designed to withstand 30 1.5 m (5´) drops to concrete

Minimum Print Contrast:
35%
Minimum Element Resolution (Code 39):
5 mil
Maximum Element Resolution (Code 39):
20 mil
Minimum Element Resolution (DataMatrix):
10 mil
Minimum Element Resolution (PDF417):
6.7 mil
Interfaces/Ports
Host Interface:
  • USB
  • Keyboard Wedge
  • Serial
  • IBM 46XX
Power Description
Maximum Operating Power Consumption:
2 W
Input Current:
400 mA
Standby Current:
90 mA
Environmental Conditions
Operating Temperature:
32°F (0°C) to 104°F (40°C)
Storage Temperature:
-40°F (-40°C) to 140°F (60°C)
Humidity (Non-condensing):
0% to 95%
Physical Characteristics
Form Factor:
Handheld
Color Family:
Black
Product Color:
Black
Height:
2.6"
Width:
7.1"
Length:
1.7"
Weight (Approximate):
4.20 oz
Miscellaneous
Ingress Protection (IP) Rating:
IP42
Environmentally Friendly:
Yes
Environmental Compliance:
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701

Recommended Accessories

Category

  • Batteries (1)
  • Cables, Connectors, and Adapters (19)
  • Computer Accessories (1)
  • Docks and Cradles (3)
  • General Software (3)
  • Miscellaneous (7)
  • Mounting Hardware and Stands (1)
  • Power Device (2)
  • Scanner Accessories (10)
