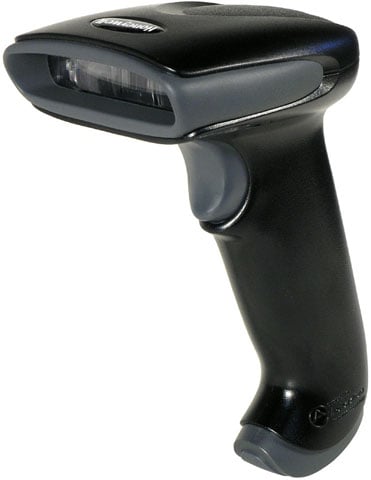

Honeywell Hyperion 1300g Barcode Scanner Model Overview
The Hyperion 1300g Linear-Imaging Scanner combines exceptional performance with unrivaled durability and ergonomic design, making it the perfect choice for businesses requiring hassle-free scanning in scan-intensive or light industrial settings. With its robust construction and user-friendly capabilities, this scanner delivers lightning-fast barcode reading up to 18 inches away, ensuring you can handle a variety of scanning needs without the need for additional specialized equipment. Its resilience is unmatched, designed to withstand tough environments, providing reliability that keeps your operations running smoothly. Key Features
Superior Hand-Held Scanning: Offers intuitive and aggressive scanning to increase throughput.
Highly Versatile: Reads out to 18 inches (457mm) on 13 mil bar codes and high-density bar codes.
Class-Leading Durability: No moving parts and impact-resistant bumpers enhance uptime and minimize service costs.
Comfortable, Ergonomic Design: Gun-shaped form factor optimized for comfortable, extended scanning.
Automatic Interface Detection: Supports popular interfaces, streamlining integration and configuration.
Remote MasterMind® Scanner Management Software: Simplifies management of multiple scanners from a single location.
Specifications
Dimensions: 150 mm x 112 mm x 79 mm (5.9" x 4.4" x 3.1")
Weight: 160 g (5.6 oz)
Input Voltage: 5V ± 5%
Operating Power: 1000mW; 200 mA (typical)
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Drop/Tumble: Designed to withstand 50 drops onto concrete from 1.5m
Environmental Sealing: IP41
Scan Rate: Up to 270 scans per second
Decode Capabilities: Reads standard 1D and GS1 DataBarTM symbologies
Warranty: 5 year factory warranty
Honeywell 1300GWEM-2 Barcode Scanner Overview
Honeywell's Hyperion 1300g linear-imaging barcode scanner features an ideal balance of performance, best-in-class durability and ergonomics to provide years of hassle-free scanning, especially in scan-intensive or light industrial applications. Fast intuitive reading of 13 mil barcodes out to 18 inches (457 mm), as well as reading of high density barcodes as small as 3 mil are both enabled in a single linear imager, eliminating the need to purchase specialty scanners. Get the most out of the Hyperion linear imager with compatible Remote MasterMind® scanning management software.
RS-232 (+5V signals), black, DB-9 Male, 3m (9.8'), coiled, external power with option for host power on pin 9 for connection to Wincor Beetle. Non-Cancelable/Non-Returnable.
Remote MasterMind - 1D or 2D Scanning Device Maintenance & Support Extension - one year term maintenance and support extension per managed scanner (must be ordered with matching new client license) to obtain this special pricing.
What are the key improvements of the Zebra DS5502 compared to the DS457?
The Zebra DS5502 features a megapixel sensor that delivers 184% higher resolution than the previous generation DS457, enabling it to read damaged and poorly printed barcodes with significantly better accuracy. Additionally, the DS5502's adjustable beeper is 16dB (26%) louder than the DS457, making scan confirmations clearer in noisy warehouse and retail environments. These enhancements make the DS5502 ideal for high-volume scanning operations where barcode quality varies.
What mounting options are available for the DS5502 fixed scanner?
The Zebra DS5502 comes with a versatile 3-in-1 mount accessory that supports computer display mounting, wall mounting, and presentation stand configurations. The scanner is also compatible with standard ¼-20 camera mounts, giving you flexibility to integrate it into existing infrastructure. This adaptability makes it suitable for retail counters, manufacturing lines, and self-service kiosks.
How compact is the Zebra DS5502, and will it fit in tight spaces?
The Zebra DS5502 is extremely compact at just 1.2 inches in height, 2.2 inches in width, and 2.8 inches in depth (3.0 cm H x 5.6 cm W x 7.2 cm D). This small footprint allows it to fit seamlessly into tight spaces at checkout counters, conveyor systems, and other constrained installations without sacrificing scanning performance.
What barcode types can the DS5502 read, and how does it handle damaged barcodes?
The Zebra DS5502 is an area imager with a megapixel sensor that excels at reading both standard and damaged or poorly printed barcodes. The 184% higher resolution compared to the DS457 enables reliable decoding even when barcode quality is compromised, making it ideal for environments where barcode condition cannot be guaranteed.
What are the illumination and feedback features of the DS5502?
The Zebra DS5502 features white illumination for clear barcode visibility and includes decode LEDs that provide visual confirmation of successful scans. The adjustable beeper is 16dB (26%) louder than the DS457, ensuring users can hear scan confirmations even in high-noise warehouse and retail environments.
What industries and applications is the Zebra DS5502 designed for?
The Zebra DS5502 is purpose-built for retail counters, light manufacturing environments, and self-service kiosks where reliable, compact fixed-mount scanning is essential. Its combination of high-resolution imaging, small size, and flexible mounting options makes it versatile across logistics, warehousing, and point-of-sale applications. Contact us today to discuss how the DS5502 can optimize your scanning workflow.
Get help from a Barcoding Expert!
The Honeywell 1300GWEM-2 Barcode Scanner is also known as
HSM-1300GWEM-2
or 1300GWEM2.
IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.
Full specifications (PDF)
