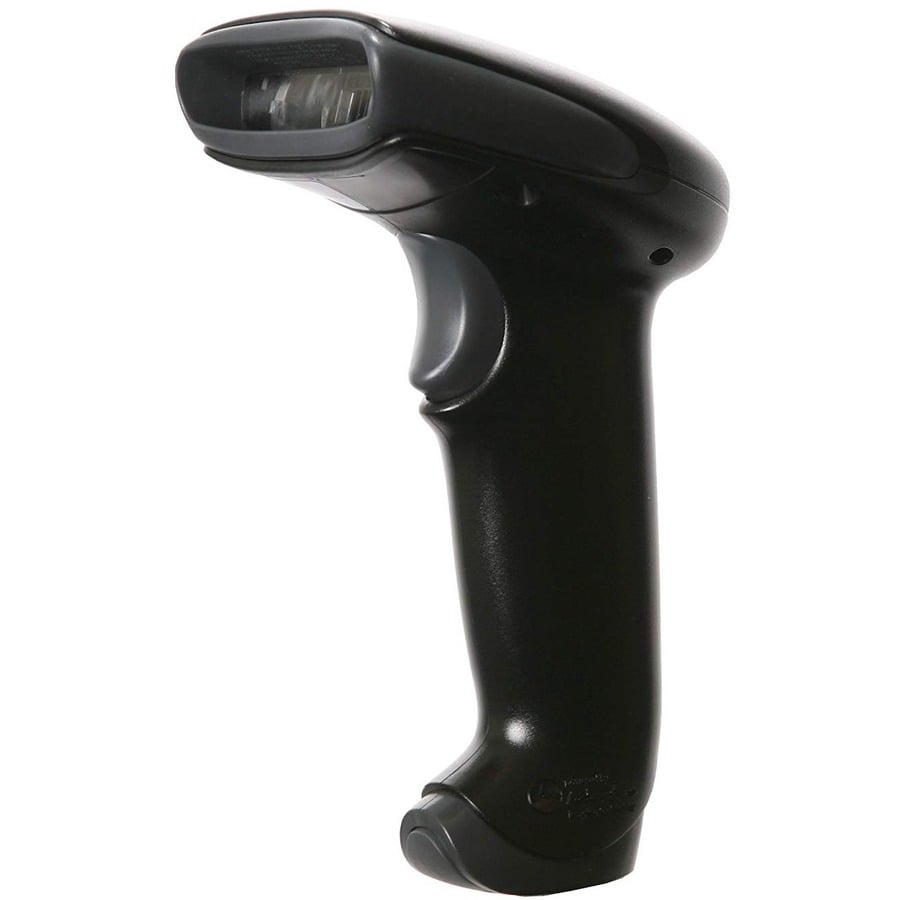

Honeywell Hyperion 1300g Barcode Scanner Model Overview
The Hyperion 1300g Linear-Imaging Scanner combines exceptional performance with unrivaled durability and ergonomic design, making it the perfect choice for businesses requiring hassle-free scanning in scan-intensive or light industrial settings. With its robust construction and user-friendly capabilities, this scanner delivers lightning-fast barcode reading up to 18 inches away, ensuring you can handle a variety of scanning needs without the need for additional specialized equipment. Its resilience is unmatched, designed to withstand tough environments, providing reliability that keeps your operations running smoothly. Key Features
Superior Hand-Held Scanning: Offers intuitive and aggressive scanning to increase throughput.
Highly Versatile: Reads out to 18 inches (457mm) on 13 mil bar codes and high-density bar codes.
Class-Leading Durability: No moving parts and impact-resistant bumpers enhance uptime and minimize service costs.
Comfortable, Ergonomic Design: Gun-shaped form factor optimized for comfortable, extended scanning.
Automatic Interface Detection: Supports popular interfaces, streamlining integration and configuration.
Remote MasterMind® Scanner Management Software: Simplifies management of multiple scanners from a single location.
Specifications
Dimensions: 150 mm x 112 mm x 79 mm (5.9" x 4.4" x 3.1")
Weight: 160 g (5.6 oz)
Input Voltage: 5V ± 5%
Operating Power: 1000mW; 200 mA (typical)
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Drop/Tumble: Designed to withstand 50 drops onto concrete from 1.5m
Environmental Sealing: IP41
Scan Rate: Up to 270 scans per second
Decode Capabilities: Reads standard 1D and GS1 DataBarTM symbologies
Warranty: 5 year factory warranty

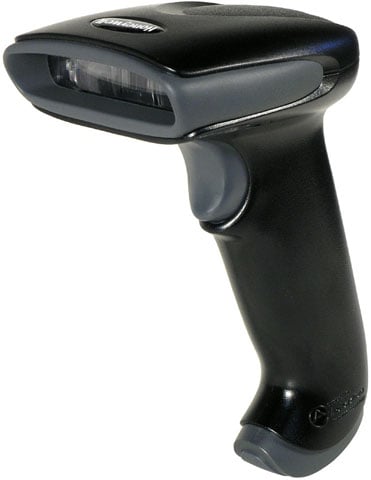

Honeywell 1300G-2KBW-N Barcode Scanner Overview
The Hyperion™ 1300g linear-imaging barcode scanner is ideal for scan-intensive and light industrial applications. It features an ideal balance of performance, ergonomics and best-in-class durability (as in tough-enough-to-hammer-nails durable). For years of hassle-free, getting-the-job-done performance, the Hyperion 1300g scanner is the one.
Aggressive Handheld Scanning
Increases throughput with intuitive and aggressive scanning of standard 1D and GS1 DataBar™ symbols.
Highly Versatile
Reads out to 45.7 cm (18 in) on 13 mil barcodes and reads high density barcodes as small as 3 mil.
Outstanding Durability
Increases up time and reduces service costs thanks to a reliable design that has no moving parts and features full impact resistant bumpers.
Comfortable, Ergonomic Design
Ensures operator comfort and productivity with a gun-shaped form factor optimized for intensive handheld scanning.
Automatic Interface Detection
Supports all popular interfaces in one device, replacing the time-consuming process of scanning programming barcodes.
RS-232 (+5V signals), black, DB-9 Male, 3m (9.8'), coiled, external power with option for host power on pin 9 for connection to Wincor Beetle. Non-Cancelable/Non-Returnable.
Remote MasterMind - 1D or 2D Scanning Device Maintenance & Support Extension - one year term maintenance and support extension per managed scanner (must be ordered with matching new client license) to obtain this special pricing.
The Honeywell 1300G-2KBW-N Barcode Scanner is also known as
HSM-1300G2KBWN
