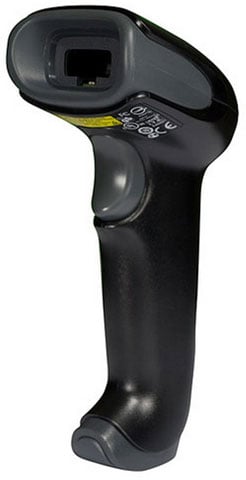

The Honeywell Voyager 1250g single-line laser scanner is a powerful tool designed to enhance productivity in scanning operations. Its advanced technology ensures reliable reading of linear bar codes, even those that are poorly printed or damaged. With an impressive depth of field, users can scan bar codes from up to 23 inches away, making it ideal for busy retail environments. The ergonomic design promotes comfort during long scanning sessions, reducing fatigue for cashiers and inventory takers. Built with a multi-interface capability and automatic configuration, the Voyager 1250g delivers a seamless out-of-box experience, ensuring quick installation and operation.
Key Features
Extended Depth of Field: Scans items from up to 17.6 inches away with ease.
Automatic Interface Detection: Supports all popular interfaces without manual setup.
CodeGate® Technology: Ensures accuracy in scanning by confirming the desired bar code is read.
Ergonomic Design: Comfortable to hold, reducing user fatigue during extended use.
Remote MasterMind Ready: Allows for efficient management and tracking of scanning devices.
Specifications
Mechanical:
Dimensions (LxWxH): 60 mm x 168 mm x 74 mm (2.3" x 6.6" x 2.9")
Weight: 133 g (4.7 oz)
Electrical:
Input Voltage: 5 V ± 5%
Operating Power: 700 mW; 140 mA (typical) @5V
Standby Power: 425 mW; 85 mA (typical) @ 5V
Environmental:
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Humidity: 5% to 95% relative humidity, non-condensing
Drop: Designed to withstand 30 drops on concrete from 1.5 m (5')
Decode Capabilities: Reads standard 1D and GS1 DataBar symbologies
Warranty: 5 year factory warranty
Honeywell 1250G-2USB-1-N Barcode Scanner Overview
Building on the legacy of the world-renowned Voyager™ series of scanners, Honeywell's Voyager 1250g single-line laser scanner provides a superior out-of-box experience and aggressive reading of linear bar codes, including larger bar codes up to 23 inches away.
Optimized for fast scanning of linear bar codes, including poorly printed and damaged codes, the Voyager 1250g allows enterprises to minimize manual data entry, leading to increased productivity and reduction in errors. The ability to read distant bar codes improves worker comfort as cashiers reach to scan items in the bottom of carts, and inventory takers scan out-of-reach products on shelves. This plug and play scanner incorporates a multi-interface design with automatic interface detection. Simply plug the cable into the host system and the Voyager 1250g will automatically configure itself to the appropriate interface, shortening the installation process. For users who require hands-free scanning, the stand can be assembled quickly and easily. Honeywell offers Service Made Simple™ service plans and Remote MasterMind™ for Scanning software to help lower the total cost of ownership for Voyager 1250g users. Service Made Simple is Honeywell's affordable solution for customers who require easy, hassle-free repair service for their scanners, and Remote MasterMind for Scanning provides turnkey remote device management to easily manage and track usage of installed devices. Voyager 1250g provides superior scan performance and extended depth of field, which combine to deliver an ergonomic solution for scan-intensive applications.
RS-232 (+5V signals), black, DB-9 Male, 3m (9.8'), coiled, external power with option for host power on pin 9 for connection to Wincor Beetle. Non-Cancelable/Non-Returnable.
Remote MasterMind - 1D or 2D Scanning Device Maintenance & Support Extension - one year term maintenance and support extension per managed scanner (must be ordered with matching new client license) to obtain this special pricing.
What barcode types can the Honeywell 1250g scanner read?
The Honeywell Voyager 1250g reads standard 1D linear barcodes and GS1 DataBar symbologies, making it ideal for general-purpose scanning applications. Its laser technology is optimized for fast scanning of linear barcodes, including poorly printed and damaged codes. For a complete listing of all supported barcode symbologies, visit www.honeywellaidc.com/symbologies.
What connectivity options does the 1250g barcode scanner support?
The Honeywell 1250g features multi-interface support, including USB (HID Keyboard, Serial, IBM OEM), RS232 (TTL + 5V), Keyboard Wedge, RS-232C (± 12V), and IBM RS485 via adapter cable. This multi-interface design eliminates the time-consuming process of scanning programming barcodes to switch between connection types. We offer this scanner ready for your preferred interface configuration.
Is the Honeywell 1250g durable enough for warehouse environments?
Yes, the Honeywell 1250g is designed to withstand 30 drops on concrete from 1.5 meters (5 feet) and features IP41 environmental sealing for protection against dust and moisture. It operates reliably in temperatures from 0°C to 40°C and humidity levels up to 95% non-condensing, making it suitable for warehouse and industrial settings. The scanner also includes a 5-year factory warranty for added peace of mind.
What is CodeGate Technology and how does it benefit scanning operations?
CodeGate Technology enables users to ensure that the desired barcode is scanned before transmitting data to the host system, making the scanner ideal for menu scanning applications and error-prone environments. This feature reduces accidental scans and improves data accuracy in high-volume scanning operations. Available from us, the 1250g's CodeGate capability helps streamline warehouse and logistics workflows.
What is the depth of field on the Honeywell 1250g scanner?
The Honeywell Voyager 1250g features an extended depth of field, allowing users to scan out-of-reach items with ease. This capability is particularly valuable in warehouse environments where items may be positioned at varying distances or heights. The extended range reduces the need for repositioning products during scanning operations.
What are the power requirements and operating specifications for the 1250g?
The Honeywell 1250g requires 5V ± 5% input voltage and draws 700 mW typical operating power (140 mA) and 425 mW standby power (85 mA). The scanner weighs 133 grams (4.7 oz) and measures 60 mm × 168 mm × 74 mm, with an ergonomic design that reduces user fatigue in scan-intensive applications. Contact us today for detailed specifications or to order this corded scanner with its included flex neck presentation stand.
The Honeywell 1250G-2USB-1-N Barcode Scanner is also known as
HSM-1250G-2USB1N
or 1250G2USB1N.
Full specifications (PDF)
