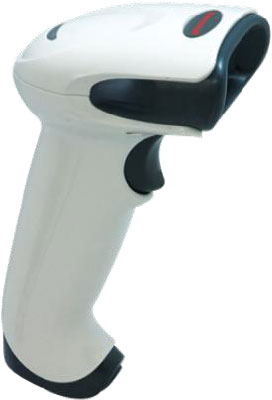

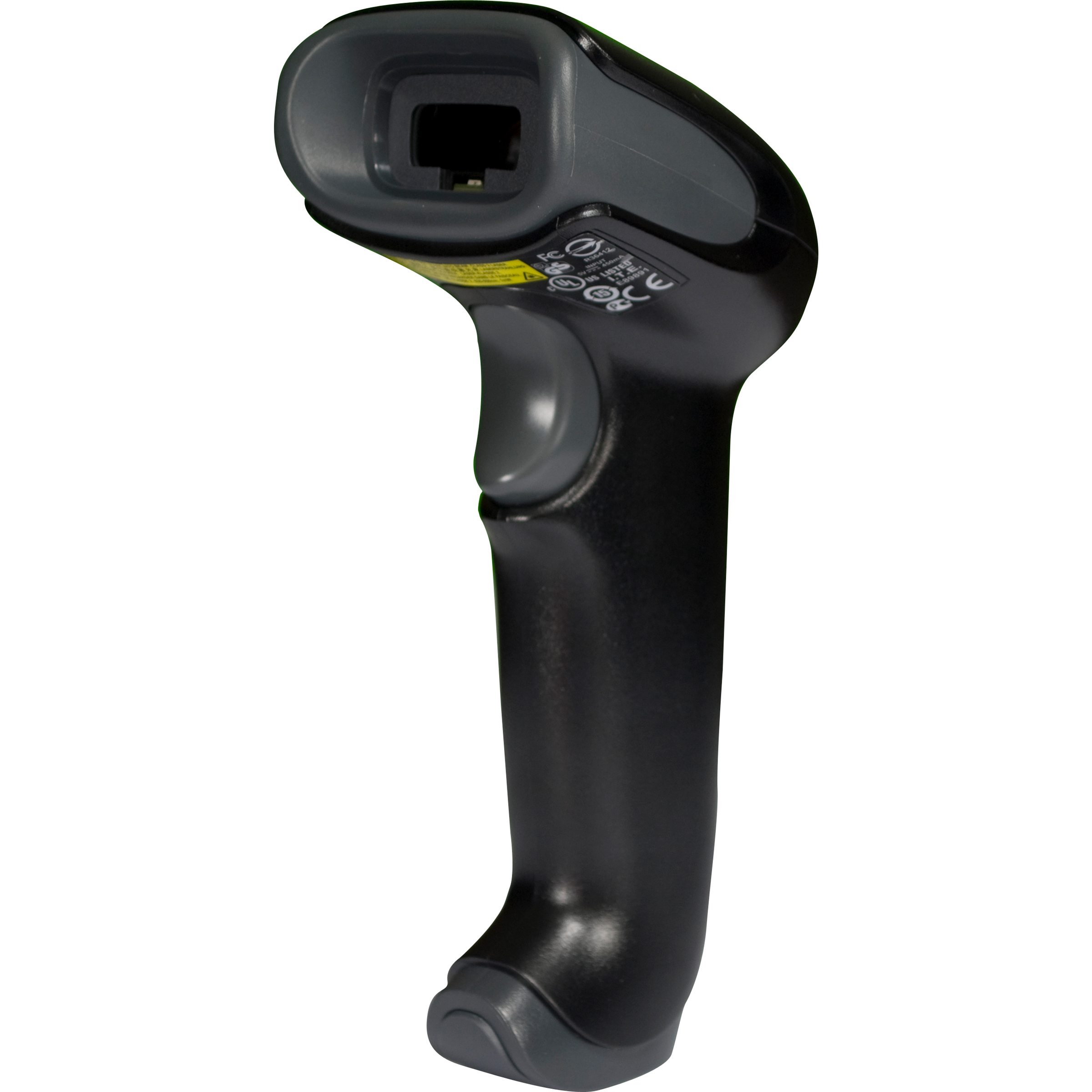

The Honeywell Voyager 1250g single-line laser scanner is a powerful tool designed to enhance productivity in scanning operations. Its advanced technology ensures reliable reading of linear bar codes, even those that are poorly printed or damaged. With an impressive depth of field, users can scan bar codes from up to 23 inches away, making it ideal for busy retail environments. The ergonomic design promotes comfort during long scanning sessions, reducing fatigue for cashiers and inventory takers. Built with a multi-interface capability and automatic configuration, the Voyager 1250g delivers a seamless out-of-box experience, ensuring quick installation and operation.
Key Features
Extended Depth of Field: Scans items from up to 17.6 inches away with ease.
Automatic Interface Detection: Supports all popular interfaces without manual setup.
CodeGate® Technology: Ensures accuracy in scanning by confirming the desired bar code is read.
Ergonomic Design: Comfortable to hold, reducing user fatigue during extended use.
Remote MasterMind Ready: Allows for efficient management and tracking of scanning devices.
Specifications
Mechanical:
Dimensions (LxWxH): 60 mm x 168 mm x 74 mm (2.3" x 6.6" x 2.9")
Weight: 133 g (4.7 oz)
Electrical:
Input Voltage: 5 V ± 5%
Operating Power: 700 mW; 140 mA (typical) @5V
Standby Power: 425 mW; 85 mA (typical) @ 5V
Environmental:
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Humidity: 5% to 95% relative humidity, non-condensing
Drop: Designed to withstand 30 drops on concrete from 1.5 m (5')
Decode Capabilities: Reads standard 1D and GS1 DataBar symbologies
Warranty: 5 year factory warranty
Honeywell 1250G-1 Barcode Scanner Overview
Honeywell's Voyager 1250g single-line laser scanner provides a superior out-of-box experience and aggressive reading of linear bar codes, including those up to 23 inches away. For users that require hands-free scanning, the easy-to-assemble Voyager 1250g stand increases throughput by incorporating automatic in-stand detection.
RS-232 (+5V signals), black, DB-9 Male, 3m (9.8'), coiled, external power with option for host power on pin 9 for connection to Wincor Beetle. Non-Cancelable/Non-Returnable.
Remote MasterMind - 1D or 2D Scanning Device Maintenance & Support Extension - one year term maintenance and support extension per managed scanner (must be ordered with matching new client license) to obtain this special pricing.
What barcode types does the Honeywell 1250G-1 scanner read?
The Honeywell Voyager 1250g reads standard 1D linear barcodes and GS1 DataBar symbologies. It's optimized for fast scanning of linear barcodes, including poorly printed and damaged codes, making it reliable for warehouse and retail environments. For a complete listing of all supported barcode symbologies, visit the Honeywell AIDC compliance documentation.
What connectivity options are available on the 1250G-1?
The Honeywell 1250g supports multiple interfaces in a single device, including USB (HID Keyboard, Serial, IBM OEM), RS232 (TTL + 5V), Keyboard Wedge, RS-232C (± 12V), and IBM RS485 via adapter cable. This multi-interface design eliminates the need for separate programming barcodes and simplifies integration into existing systems. We offer this scanner ready to integrate with your warehouse management or point-of-sale infrastructure.
Is the Honeywell 1250G-1 durable enough for warehouse use?
Yes, the Honeywell Voyager 1250g is designed for industrial durability, withstanding 30 drops on concrete from 1.5 meters (5 feet) and featuring IP41 environmental sealing. It operates reliably in temperatures from 0°C to 40°C and handles light levels up to 75,000 Lux in direct sunlight, with a 5-year factory warranty included. This makes it suitable for demanding warehouse and logistics applications.
What is CodeGate Technology and why does it matter?
CodeGate Technology is a Honeywell feature that enables users to ensure the desired barcode is scanned before transmitting data to the host system. This capability makes the 1250g ideal for menu scanning applications and environments where scan accuracy is critical, reducing data entry errors and improving workflow efficiency.
What are the physical dimensions and weight of the 1250G-1?
The Honeywell Voyager 1250g measures 60 mm x 168 mm x 74 mm (2.3" x 6.6" x 2.9") and weighs 133 grams (4.7 ounces). Its compact, ergonomic design fits comfortably in most hands, reducing user fatigue during scan-intensive applications in warehouses and distribution centers.
What is the extended depth of field feature on the 1250G-1?
The extended depth of field on the Honeywell Voyager 1250g allows users to scan barcodes on out-of-reach items with ease, providing greater flexibility in warehouse and retail scanning operations. This feature, combined with a 30° horizontal scan angle and 60° pitch/skew tolerance, enables reliable scanning from various distances and angles without requiring precise positioning.
The Honeywell 1250G-1 Barcode Scanner is also known as
MET-1250G-1
or 1250G1.
Full specifications (PDF)
