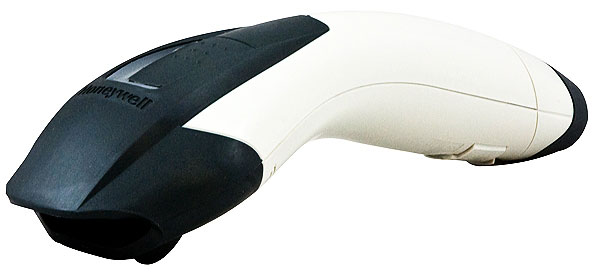

The Honeywell Voyager 1200g Single-Line Laser Scanner is designed for superior performance, easily decoding linear barcodes, including low-quality and damaged ones. As a market leader, it features advanced object detection and automatic stand configuration, maximizing scanning efficiency. The ergonomic and robust design ensures comfort and durability, with a resilient structure that withstands accidental drops and harsh conditions. With its versatile capabilities, the Voyager 1200g is perfect for various applications, simplifying operations for any business. Key Features
Class-Leading Presentation Scanning: Enhances efficiency with automatic object detection and configuration.
Multi-Interface Support: Compatible with USB, keyboard wedge, and RS232 interfaces, minimizing additional costs.

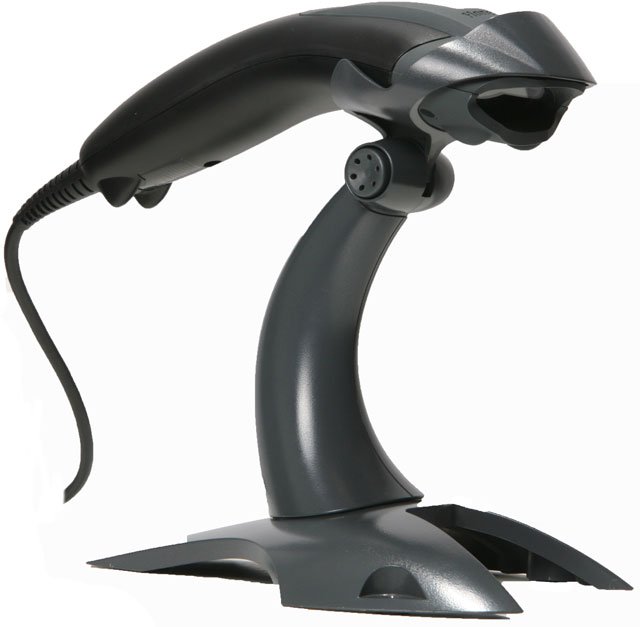

Superior Out-of-Box Experience: Tool-free stand assembly and automatic detection simplify setup.
Contemporary, Ergonomic Design: Lightweight, comfortable grip for extended use.
CodeGate® Technology: Ensures the correct barcode is scanned before transmitting data.
Specifications
Dimensions: 66 mm (3.0'') x 180 mm (7.1'') x 97 mm (3.8'')
Weight: 125 g (4.4 oz)
Input Voltage: 5 V +/- 5%
Operating Power: 700mW; 140 mA (typical) @ 5V
Standby Power: 350mW; 70 mA (typical) @ 5V
Operating Temperature: 0°C to 50°C (32°F to 122°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Humidity: 0% to 95% non-condensing
Drop Rating: Withstands 30 drops to concrete from 1.5 m
Environmental Sealing: IP42
Scan Performance: Single scan line, Horizontal angle: 30°
Decode Capabilities: Reads standard 1D and GS1 DataBar symbologies
Warranty: 5 year factory warranty
Honeywell 1200G-1 Barcode Scanner Overview
The intuitive Voyager 1200g provides fast and reliable scanning of linear bar codes across its full working range, minimizing the need for user training. Whether poorly printed, smudged or faded, the Voyager 1200g decodes diffcult-to-read bar codes with ease. The Voyager 1200g also excels at scanning high density bar codes with resolution down to 3.5 mil, eliminating the need to purchase specialty scanners.
RS-232 (+5V signals), black, DB-9 Male, 3m (9.8'), coiled, external power with option for host power on pin 9 for connection to Wincor Beetle. Non-Cancelable/Non-Returnable.
Remote MasterMind - 1D or 2D Scanning Device Maintenance & Support Extension - one year term maintenance and support extension per managed scanner (must be ordered with matching new client license) to obtain this special pricing.
What barcode types can the Honeywell 1200G-1 scanner read?
The Honeywell Voyager 1200g reads standard 1D linear barcodes and GS1 DataBar symbologies across its full working range. It excels at decoding difficult-to-read barcodes—including poorly printed, smudged, or faded labels—and handles high-density barcodes with resolution down to 3.5 mil, eliminating the need for specialty scanners.
Is the Honeywell 1200G-1 durable enough for warehouse environments?
Yes, the Voyager 1200g is built for durability with a shock-mounted PCB that delivers greater impact resistance and is designed to withstand 30 drops to concrete from 1.5 meters. It features a protected, scratch-resistant glass window, a recessed trigger button with integrated rubber comold, and an IP42 environmental sealing rating for reliable performance in demanding warehouse conditions.
What connectivity options does the Honeywell 1200G-1 offer?
The Voyager 1200g includes multi-interface connectivity with USB (HID Keyboard, Serial, IBM OEM), RS232 (TTL +5V), and KBW support. Additional host system interfaces including RS-232C (+/-12V) and IBM RS485 are available via adapter cable, making it compatible with most warehouse management and POS systems.
What are the operating temperature and humidity specifications for the 1200G-1?
The Honeywell Voyager 1200g operates reliably in temperatures from 0°C to 50°C (32°F to 122°F) with humidity levels up to 95% non-condensing. It can also handle light levels from 0 to 100,000 lux, including direct sunlight, making it suitable for both indoor and outdoor warehouse scanning applications.
How much power does the Honeywell 1200G-1 consume?
The Voyager 1200g requires 5V +/- 5% input voltage and draws 700mW typical operating power (140 mA @ 5V) or 350mW in standby mode (70 mA @ 5V). This efficient power consumption makes it ideal for extended warehouse operations and reduces overall system power requirements.
What warranty does the Honeywell 1200G-1 include?
The Honeywell Voyager 1200g comes with a comprehensive 5-year factory warranty, providing extended protection for your investment. Contact us today at barcodesinc.com to learn more about our warranty coverage and support options available from our team.
The Honeywell 1200G-1 Barcode Scanner is also known as
MET-1200G-1
or 1200G1.
Full specifications (PDF)
