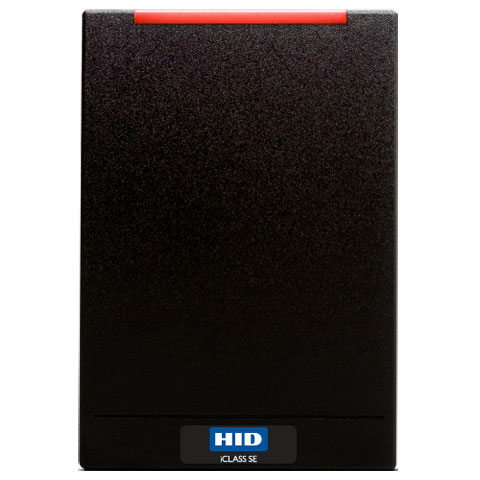

HID iCLASS RPK40 Access Control Equipment Model Overview
The multiCLASS™ family of readers from HID is the ideal solution for organizations looking to upgrade their security systems. Designed to facilitate a seamless transition from popular proximity technologies to advanced iCLASS® credentials, models RP15, RP40, and RPK40 support multiple card technologies in one comprehensive system. These readers offer enhanced security features such as mutual authentication, data encryption, and dual-factor authentication (RPK40 only) – reducing the risk of compromised data while ensuring easy integration with existing access control panels.
Key features:
Simple Migration: Effortlessly transition from proximity to iCLASS® technologies.
GSA-approved: Included in the U.S. General Services Administration FIPS 201 Approved Products List.
Dimensions: 3.3" x 4.8" x 0.95" (8.4 cm x 12.2 cm x 2.4 cm)
Weight: 8.8 oz (249.5 g)
Power Supply: 12 VDC
Current Requirements: 55 mA AVG, 141 mA PEAK
Operating Temperature: -31° to 150° F (-35° to 65° C)
Operating Humidity: 5% to 95% relative humidity non-condensing
Housing Material: UL94 Polycarbonate
Warranty: Lifetime warranty against defects in materials and workmanship.

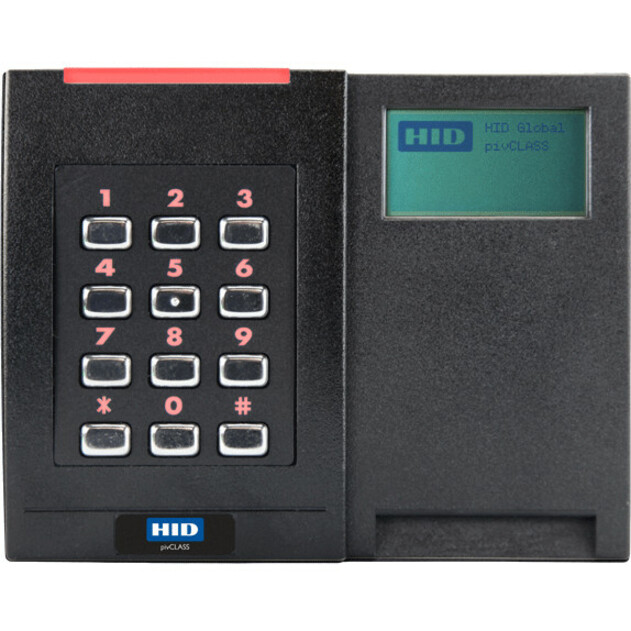

HID 923NPRTEK00333 Access Control Reader Overview
HID Global's pivCLASS RKCL40 contact, plus contactless dual interface reader is suitable for use in security areas meeting the FIPS-201 criteria for both "Controlled" and "Limited" access. When used in conjunction with HID Global's pivCLASS Authentication Module (PAM), the pivCLASS RKCL40 reader provides strong authentication ensuring that the card being presented is genuine; the data on the card has not been changed or manipulated; the card is not a copy or clone of another card; and the card has not been lost or stolen. When used in Card Authentication Key (CAK) mode, it supports reading any PIV-based card with a contactless interface and containing a CAK certificate. When used in PIV+PIN mode, the reader supports on-card-matching of a PIN, reading and validating the PIV Authentication Key certificate.
The HID 923NPRTEK00333 Access Control Reader is also known as
HID-923NPRTEK00333
