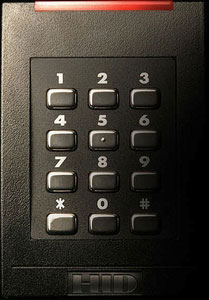

HID 923NPPNEK000P3 Access Control Reader

The HID iCLASS® RK40 and RWK400 Readers are cutting-edge 13.56 MHz contactless smart card readers designed for superior access control and user convenience. Featuring dual-factor authentication, these readers enhance security by combining secure PINs with iCLASS® card verification. The elegant, rugged design includes a weatherproof keypad with backlit numbers, ensuring functionality in any lighting condition. These versatile readers are simple to integrate with new and existing systems using Wiegand output, making them ideal for various applications, from corporate facilities to secure transit environments.

Key features:

• Dual-Factor Authentication: Combines secure PINs with iCLASS® card authentication.
• Flexible Configuration: Compatible with various PIN pad outputs.
• Backlit Keypad: Facilitates operation in low-light conditions.
• Read/Write Capability: RWK400 model supports data storage and retrieval.
• Robust Design: Weather-resistant polycarbonate housing for durability.

Specifications:

• Power Supply: 5-16 VDC
• Current Requirements: 85mA AVG / 116mA PEAK (RK40); 85mA AVG / 132mA PEAK (RWK400)
• Operating Temperature: -31° to 150° F (-35° to 65° C)
• Humidity: 5% to 95% relative, non-condensing
• Dimensions: 3.3" x 4.8" x 1.1" (8.5 cm x 12.2 cm x 2.8 cm)
• Environmental Rating: IP55
• Compatibility: iCLASS, MIFARE, DESFire credentials
