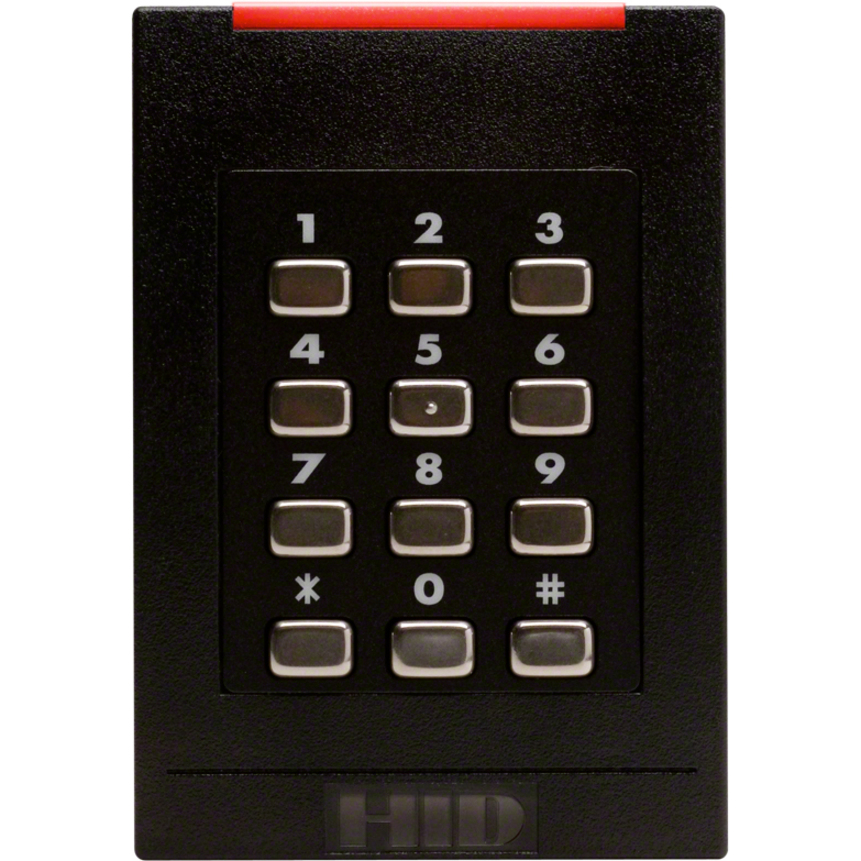

HID 921NTNTEK0002T Access Control Card Reader
Using 13.56 MHz contactless smart card technology, the iCLASS RK40 6130 provides a powerful solution. Combine a contactless card presentation with a personal identification number (PIN) to support dual authentication of identity or configure the panel for single-factor authentication, using only a card or a PIN. The PIN can be verified either at the access control panel or locally by the keypad reader. When verified locally, the PIN must be programmed into the iCLASS card. Featuring crisp architectural styling, the keypad reader has an elegantly curved faceplate. The 12-position weatherproof keypad uses discrete switches to provide positive tactile response, optionally reinforced by an audible tone. The keypad also features a waterproof silicone rubber boot, vandal-resistant metal keycaps, and backlit numbering.
Technical Information
- Connectivity Technology: Cable
- Media Supported: Smart Card
- Operating Range: 1.25" to 4"
- Features:
- 64-bit authentication keys
- Elite Custom Keys
- Audiovisual Indication
- Rugged, Weatherized Polycarbonate Enclosure
- Easily Interfaced
- Dual-Factor Authentication
- Backlit - Use lighted Numbers
General Information
- Product Type: Smart Card Reader
- Product Series: RK40
- Brand Name: HID
- Manufacturer: HID Global Corporation
- Product Model: 6130C
- Product Name: Wall Switch Keypad Smart Card Reader
- Product Line: iCLASS
Physical Characteristics
- Height: 4.8"
- Width: 3.3"
- Depth: 1.1"
- Color: Black
Interfaces/Ports
- Interfaces: Wiegand
Other
- Green Compliant: Yes
- Green Compliance Certificate/Authority:
- RoHS
- WEEE
Warranty
- Limited Warranty: Lifetime
Full specifications (PDF)| Brand | HID |
| Model | iCLASS RK40 6130 |
The HID 921NTNTEK0002T is also known as HID-921NTNTEK0002T .
