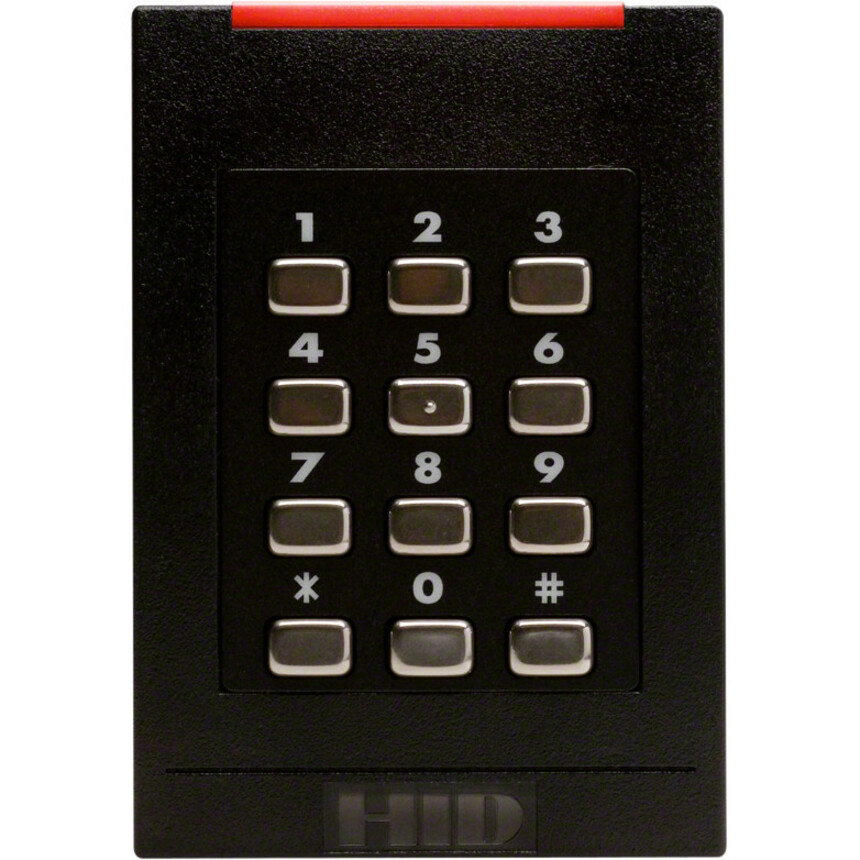

HID 921NTNNEK0007R Access Control Card Reader

HID - ICLASS RK40 6130C Smart Card Reader - Cable - 4" Operating Range - Black
$417.09

Full specifications (PDF)

Auto-tuning feature automatically adjusts the reader for optimal read range performance on any mounting surface.
Using 13.56 MHz contactless smart card technology, the iCLASS RK40 6130 provides a powerful solution. Combine a contactless card presentation with a personal identification number (PIN) to support dual authentication of identity or configure the panel for single-factor authentication, using only a card or a PIN. The PIN can be verified either at the access control panel or locally by the keypad reader. When verified locally, the PIN must be programmed into the iCLASS card. Featuring crisp architectural styling, the keypad reader has an elegantly curved faceplate. The 12-position weatherproof keypad uses discrete switches to provide positive tactile response, optionally reinforced by an audible tone. The keypad also features a waterproof silicone rubber boot, vandal-resistant metal keycaps, and backlit numbering.
HID 921NTNNEK0007R Overview

Using 13.56 MHz contactless smart card technology, the iCLASS® RK40 provides a powerful solution. Combine a contactless card presentation with a personal identification number (PIN) to support dual authentication of identity. Or, configure the panel for single-factor authentication, using only a card or a PIN.

The PIN can be verified either at the access control panel or locally by the keypad reader. When verified locally, the PIN must be programmed into the iCLASS card.

Featuring crisp architectural styling, the keypad reader has an elegantly curved faceplate. The 12-position weatherproof keypad uses discrete switches to provide positive tactile response, optionally reinforced by an audible tone. The keypad also features a waterproof silicone rubber boot, vandal-resistant metal keycaps, and backlit numbering.


Full specifications (PDF)

Technical Information
Connectivity Technology:
Cable
Maximum Operating Range:
4"
Features:
  • 64-bit authentication keys
  • Elite Custom Keys
  • Audiovisual Indication
  • Rugged, weatherized polycarbonate enclosure
  • Easily Interfaced
  • Dual-Factor Authentication
  • Backlit - Use lighted numbers
Physical Characteristics
Color:
Black
Height:
4.8"
Width:
3.3"
Depth:
1.1"
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC: 43201815


The HID 921NTNNEK0007R is also known as HID-921NTNNEK0007R .
