HID 921NNNNEK2037R Access Control Reader

HID iCLASS RK40 6130 - RK40 IClass Reader (SE Keypad Reader, VAR Bit Output)
  • With its convenient operational technology as well as user-friendly operational capability, this Card Reader/Keypad Access Device provides optimal keypad access device function productivity
  • By using proximity technology this card reader/keypad access device provides robust and affordable security
  • An ideal choice for door security
  • Card Reader/Keypad Access Device can be mounted as wall mountable
Read More
$593.85
Add to Quote
HID iCLASS RK40 6130 Access Control Reader Model Overview

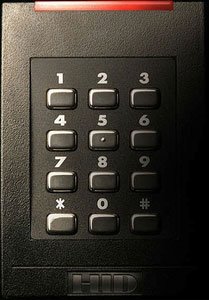

Using 13.56 MHz contactless smart card technology, the iCLASS RK40 6130 provides a powerful solution. Combine a contactless card presentation with a personal identification number (PIN) to support dual authentication of identity or configure the panel for single-factor authentication, using only a card or a PIN. The PIN can be verified either at the access control panel or locally by the keypad reader. When verified locally, the PIN must be programmed into the iCLASS card. Featuring crisp architectural styling, the keypad reader has an elegantly curved faceplate. The 12-position weatherproof keypad uses discrete switches to provide positive tactile response, optionally reinforced by an audible tone. The keypad also features a waterproof silicone rubber boot, vandal-resistant metal keycaps, and backlit numbering.
HID 921NNNNEK2037R Access Control Reader Overview

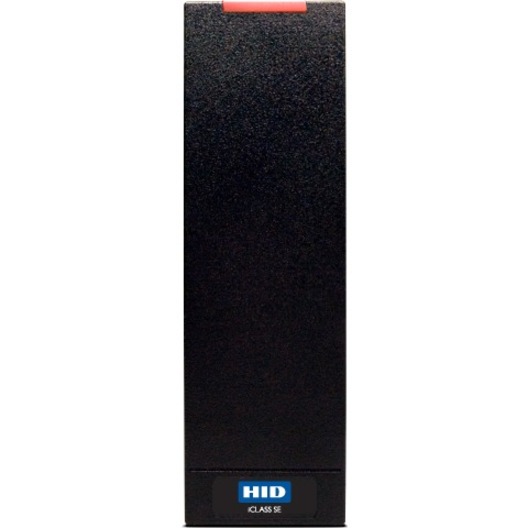

The iCLASS SE® RK40 is part of HID Global's iCLASS SE platform for adaptable, interoperable access control. Designed for multi-factor authentication door applications requiring standard wall switch mounting, iCLASS SE® RK40 supports a broad array of credential technologies and a variety of form factors, including cards, fobs and mobile devices. Configurable to support HID Mobile Access®.

Key Features

  • Adaptable - Interoperable with a growing range of technologies (iCLASS Seos® , iCLASS SE, iCLASS®, MIFARE® Classic, MIFARE DESFire®EV1) and form factors including mobile devices.
  • Powerfully Secure - The iCLASS SE platform's Secure Identity Object® (SIO®) data model provides an extra layer of encryption for additional protection of identity data
  • Standardized Communications (OSDP) - Uses Open Supervised Device Protocol (OSDP) for secure communications between reader and controller.

With a focus on sustainability, iCLASS SE platform readers include intelligent power management that reduces power consumption by as much as 59%. Selected models also have Environmental Product Declaration certification and Green Circle certification, which contributes toward LEED building credits.

Technical Information
Identification Method:
  • Proximity
  • Key Code
Operating Range:
5.51"
Application/Usage:
  • Door
  • Indoor
  • Outdoor
Ingress Protection (IP) Rating:
IP55
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Serial:
Yes
Wiegand:
Yes
Power Description
Input Voltage:
16 V DC
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Gang Box Mount
Product Color:
Black
Height:
4.8"
Width:
3.3"
Depth:
1.1"
Weight (Approximate):
9.03 oz
Miscellaneous
Compatibility:
  • Secure Identity Object (SIO) on iCLASS Seos,
  • iCLASS SE/SR,
  • MIFARE DESFire EV1
  • MIFARE Classic
  • MIFARE DESFire EV1
  • standard iCLASS Access Control Application
  • ISO14443A (MIFARE) CSN
  • ISO14443B CSN
  • ISO15693 CSN - FeliCa4 CSN
  • CEPAS4 CSN
  • CAN - MIFARE DESFire EV2 via EV1 backward compatibility
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC: 46171600
Questions? Get help from
an ID Expert!

How many IDs will you
print per year?

The HID 921NNNNEK2037R Access Control Reader is also known as HID-921NNNNEK2037R
