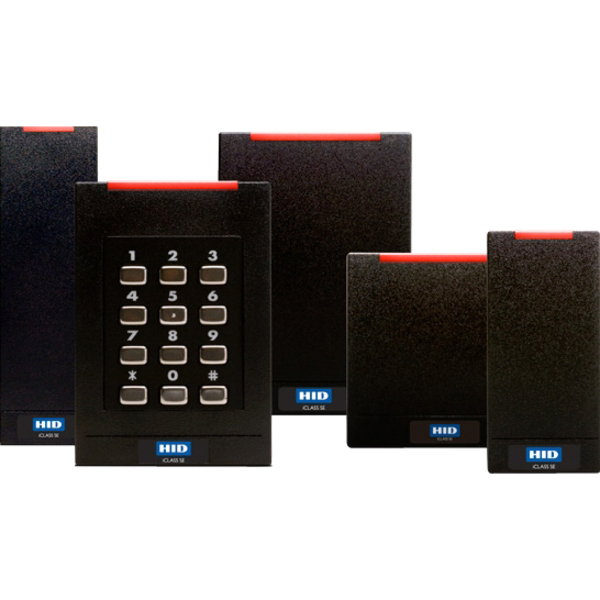

HID iCLASS RPK40 Access Control Equipment Model Overview
The multiCLASS™ family of readers from HID is the ideal solution for organizations looking to upgrade their security systems. Designed to facilitate a seamless transition from popular proximity technologies to advanced iCLASS® credentials, models RP15, RP40, and RPK40 support multiple card technologies in one comprehensive system. These readers offer enhanced security features such as mutual authentication, data encryption, and dual-factor authentication (RPK40 only) – reducing the risk of compromised data while ensuring easy integration with existing access control panels.
Key features:
Simple Migration: Effortlessly transition from proximity to iCLASS® technologies.
GSA-approved: Included in the U.S. General Services Administration FIPS 201 Approved Products List.
Dimensions: 3.3" x 4.8" x 0.95" (8.4 cm x 12.2 cm x 2.4 cm)
Weight: 8.8 oz (249.5 g)
Power Supply: 12 VDC
Current Requirements: 55 mA AVG, 141 mA PEAK
Operating Temperature: -31° to 150° F (-35° to 65° C)
Operating Humidity: 5% to 95% relative humidity non-condensing
Housing Material: UL94 Polycarbonate
Warranty: Lifetime warranty against defects in materials and workmanship.

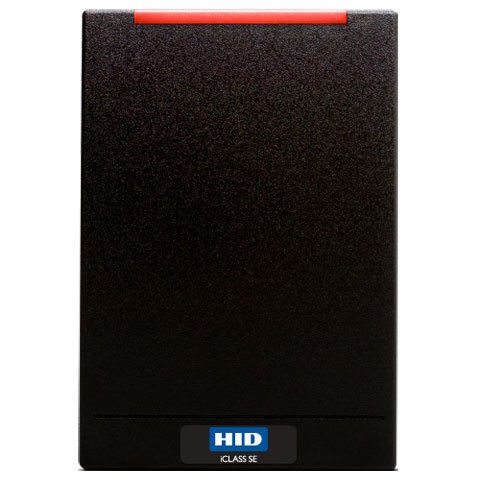

HID 920NTNNEK00029 Access Control Reader Overview
HIGHLY ADAPTABLE AND SECURE HIGH FREQUENCY ACCESS CONTROL SOLUTION
Powerfully Secure - Provides layered security beyond the card media for added protection to identity data using SIOs.
Adaptable - Interoperable with a growing range of technologies (iCLASS® Seos™ and iCLASS SE® credential platforms, standard iCLASS®, MIFARE®, and MIFARE DESFire® EV1 with custom data models) and form factors including mobile devices utilizing Seos™.
Interoperable - Open Supervised Device Protocol (OSDP) for secure, bidirectional communication.
HID Global's iCLASS SE® platform goes beyond the traditional smart card model to offer a secure, standards-based and fexible platform that has become the new benchmark for highly adaptable, interoperable and secure access control solutions.
Ideal for new and existing installations, iCLASS SE readers provide customers the assurance that their existing investments can be leveraged to enhance their system as business requirements change. The technology-independent readers also support iCLASS Seos and iCLASS SE credential platforms, as well as standard iCLASS, MIFARE and MIFARE DESFire EV1 supporting custom data models.
The HID 920NTNNEK00029 Access Control Reader is also known as
HID-920NTNNEK00029
