Connectivity Technology:
Cable

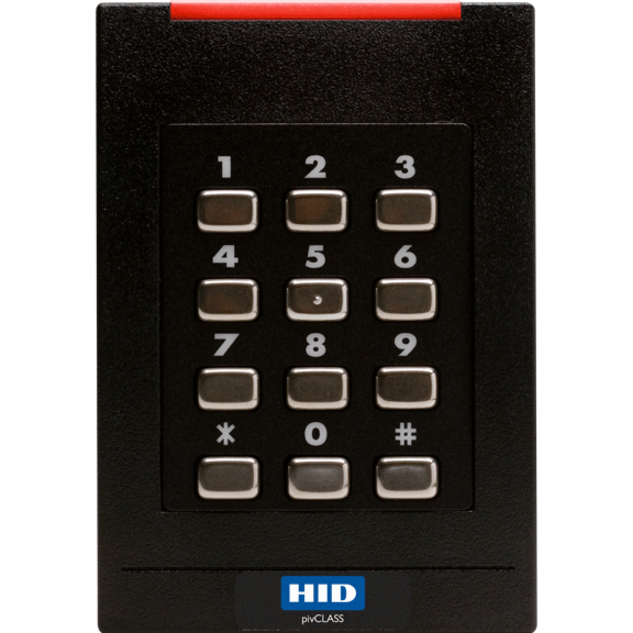

HID 920LHRNEK0001R Access Control Equipment
Part Number:
920LHRNEK0001R
Model:
iClass R40 6120
HID iClass R40 6120 Access Control Equipment Model Overview
The HID iCLASS® 13.56 MHz Contactless Smart Card Readers deliver advanced access control technology with seamless integration into existing systems. Engineered for performance, these readers boast user-friendly features that enhance security and versatility. With built-in support for various card technologies, the iCLASS series facilitates easy upgrades from Prox technology and ensures robust data encryption and mutual authentication. The readers are suitable for diverse applications, providing a reliable solution for organizations seeking an efficient transition to enhanced security standards.
Key features include encrypted communication, format portability, and field upgradeability ensuring a secure and versatile experience. Additionally, these readers are designed to withstand harsh environments, making them ideal for both indoor and outdoor use.
Specifications:
Key features include encrypted communication, format portability, and field upgradeability ensuring a secure and versatile experience. Additionally, these readers are designed to withstand harsh environments, making them ideal for both indoor and outdoor use.
Specifications:
- Power Supply: 5-16 VDC
- Current Requirements: 55mA AVG, 116mA PEAK
- Operating Temperature: -31° to 150° F (-35° to 65° C)
- Operating Humidity: 5% to 95% relative humidity non-condensing
- Transmit Frequency: 13.56 MHz
- Environmental Certifications: UL294, FCC, CE, RoHS
- Housing Material: UL94 Polycarbonate
- Warranty: Lifetime warranty against defects
HID 920LHRNEK0001R Access Control Equipment Overview
The pivCLASS® solutions portfolio includes a broad selection of contact, contactless and biometric pivCLASS® Readers for agencies to meet to meet the requirements for any assurance level and the NIST SP 800-116 guidelines. The readers work with the pivCLASS® Authentication Module (PAM) to meet requirements at any assurance level. pivCLASS readers also provide fully functional backward compatibility with existing iCLASS® and HID Prox readers, easing the transition from legacy cards to PKI-based credentials. Up to two pivCLASS readers can connect to a PAM via four-wire RS-485 connections, typically enabling facilities to re-use much of their existing wiring. Key Features:
- Contactless reader solution meets NIST's "Controlled" security area assurance level requirements with a single-factor authentication mode: CHUID or CAK.
- Contact reader solution meets NIST's "Limited" security area assurance level requirements with two-factor authentication mode: PIV + PIN.
- Contact biometric (BIO) reader solution meets NIST's "Exclusion" assurance level requirements with three-factor authentication mode: PIV + PIN + BIO.
- FASC-N reads for non-SP800-116 "uncontrolled" areas and the additional TWIC authentication modes, CHUID + BIO and CAK + BIO.
- Supports nearly any card type, contact or contactless, including PIV, PIV-I, CIV (a.k.a., PIV-C), TWIC, FRAC and CAC.
Technical Information
Physical Characteristics
Product Color:
Black
Item Numbers
UNSPSC:
43201815
Questions? Get help from
an ID Expert!
an ID Expert!
The HID 920LHRNEK0001R Access Control Equipment is also known as
HID-920LHRNEK0001R
or 920LHRNEK0001R.
