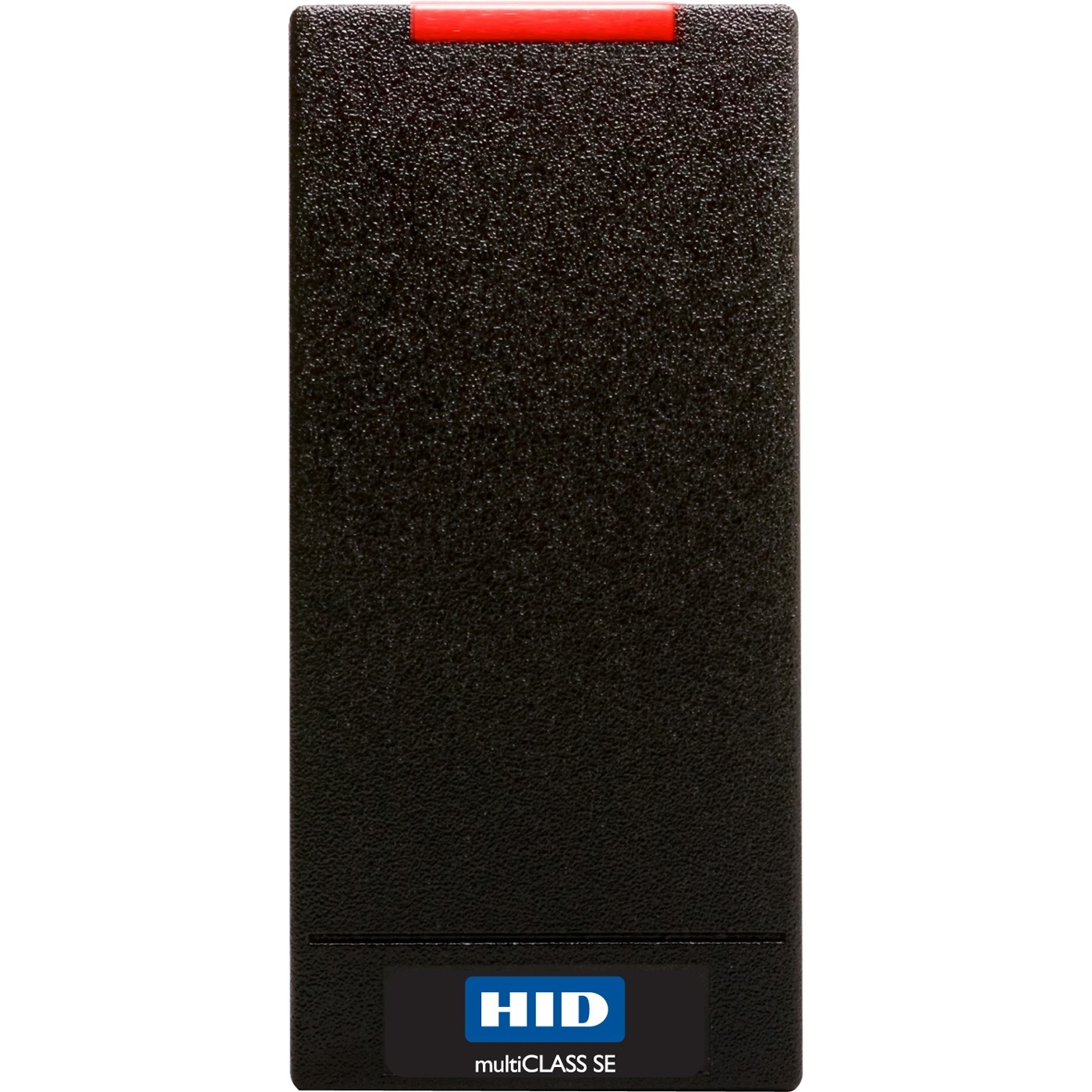

HID 900PTNNEK00000 Access Control Equipment

HID R10 6100 Iclass - HID multiCLASS SE® RP10 Multi-technology Smartcard Reader - Mini-mullion | 13.56 mHz | EAL5+ Certified | OSDP Capable | Mobile Configurable
  • Ensures data authenticity and privacy through the multi-layered security of the Secure Identity Object® (SIO®) data model and Seos® next generation credential technology.
  • EAL5+ certified secure element hardware provides tamper-proof protection of keys/cryptographic operations.
  • Allows all wiegand-based communication readers to expand communication capabilities to OSDP, Hi-O and other bidirectional protocols.
  • Field programmable readers provide secure upgrades, migration and extended lifecycle.
  • Intelligent Power Management (IPM) reduces reader power consumption by as much as 75% compared to standard operating mode. Green Circle Certified.
  • Recycled content contributes toward building LEED credits.
Read More

Need a different version? See all HID R10 6100 Iclass Access Control Equipments

$171.95
Add to Quote
Add to My Shopping List Add to Compare
HID 900PTNNEK00000 Access Control Equipment
HID 900PTNNEK00000 Access Control Equipment HID 900PTNNEK00000 Access Control Equipment
HID 900PTNNEK00000 Access Control Equipment
HID 900PTNNEK00000 Access Control Equipment
Full specifications (PDF)
HID R10 6100 Iclass Access Control Equipment Model Overview
The R10 6100 IClass Reader offers an open architecture design permitting compatibility with many of the most popular cards in the market, which comply with ISO 14443A, 14443B, and 15693 interoperability standards. Regional compatibilities include US Government PIVII (FIPS201), offering one of the most flexibility reader platforms available. R10 6100 IClass Reader are user-friendly, delivering the same convenience and reliability of our Prox technology, for which HID is known worldwide, with state-of-the-art features, driven by evolving industry requirements. Upgrading from Prox to iCLASS technology has never been so simple. All iCLASS readers provide the same wiring connections, low-current consumption, and 5- or 12-volt operation as our Prox readers. Additionally, you can transfer your Prox format and user identification numbers to iCLASS credentials, making the change completely transparent to your access controller.
HID 900PTNNEK00000 Access Control Equipment Overview

The multiCLASS SE® RP10 Multi-technology Smartcard Readers powered by Seos® are designed to facilitate a gradual move from vulnerable legacy 125kHz technologies to today's accepted 13.56 mHz standard. The multiCLASS SE® RP10 model suits door applications requiring a small footprint card reader. This flexible reader supports a variety of high frequency ISO 15693, ISO 14443A/B and low frequency 125kHz credential technologies and applications.

Configurable to support HID Mobile Access® now or in future.

More from the Manufacturer

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Media Supported:
Contactless
Maximum Operating Range:
4.30"
Features:
  • Multi-Layered Security
  • EAL5+ Certified Secure Element Hardware
  • Secured communications using OSDP
  • Upgradeable Hardware Connection
  • Intelligent Power Management (IPM)
Interfaces/Ports
Host Interface:
  • Wiegand
  • Pigtail
Physical Characteristics
Product Color:
Black
Form Factor:
  • Surface Mount
  • Mullion Mount
  • Box Mount
Height:
4.1"
Width:
1.9"
Depth:
0.9"
Weight (Approximate):
4 oz
Miscellaneous
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
Lifetime
Item Numbers
GTIN: 0639399004971, 0999562875709
UPC: 639399004971, 999562875709
EAN: 0639399004971, 0999562875709
UNSPSC: 43201815
Questions? Get help from
an ID Expert!

How many IDs will you
print per year?

The HID 900PTNNEK00000 Access Control Equipment is also known as HID-900PTNNEK00000 or 900PTNNEK00000.
