HID R10 6100 Iclass Access Control Equipment Model Overview
The HID iCLASS® contactless smart card readers are engineered for optimal access control solutions. Operating at 13.56 MHz, these readers provide a seamless user experience, allowing straightforward upgrades from existing Prox readers. They deliver versatile solutions thanks to HID Connect’s extensive network of technology partners, all while ensuring enhanced security through data encryption and mutual authentication. Whether installed in harsh environments or standard back boxes, these durable readers maintain high performance and efficiency with low power consumption.
Key Features
Format Portability: Easy transition from Prox to iCLASS technology with the same user identification numbers.
Secure: Encrypted RF data transmission minimizes risks of data compromise.
Interoperability: Compatible with various card technologies based on ISO standards.
Optimal Read Range Performance: Auto-tuning feature adjusts for best performance on any mounting surface.
Elite Custom Keys: Provides tailored security solutions for specific sites.
Specifications
Operating Voltage: 5-16 VDC
Current Requirements: 55mA average, peak varies by model
Operating Temperature: -31° to 150° F (-35° to 65° C)
Operating Humidity: 5% to 95% relative humidity non-condensing
Warranty: Lifetime against defects in materials and workmanship

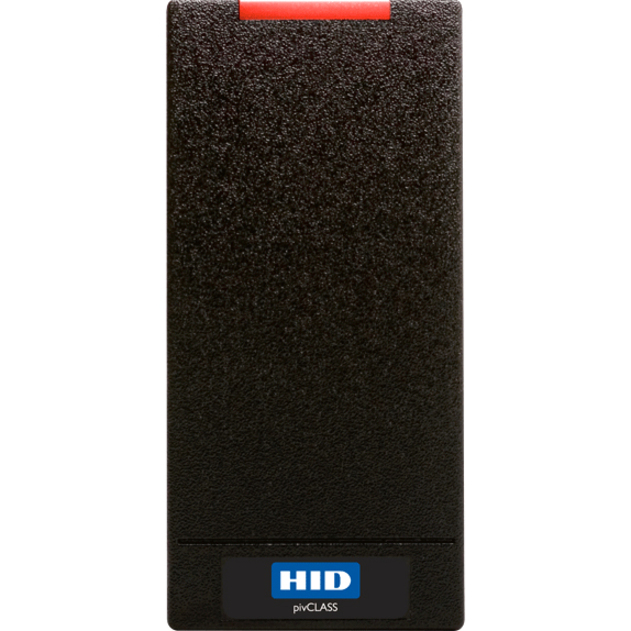

HID 900PHRNEK00007 Access Control Reader Overview
pivCLASS® READERS FOR "CONTROLLED" AREAS ENABLE HIGH SECURITY, INTEROPERABILITY AND COMPLIANCE
Part of an integrated solution from a single, trusted provider - Enables FIPS 201 compliance and follows NIST SP 800-116 guidelines and the TWIC Reader Specifcation.
Contactless reader solution for "Controlled" security areas - Meets NIST's "Controlled" security area assurance level requirements with a single-factor authentication mode: CHUID or CAK.
Supports multiple card types - PIV, PIV-I, CAC, CIV (a.k.a., PIV-C), TWIC and FRAC, as well as iCLASS® and HID Prox cards for easy, phased transitions from legacy technology to new PKI-enabled smart cards.
HID Global pivCLASS® Government Solutions enable facilities to upgrade their existing physical access control system (PACS) to FIPS 201 compliance.
The pivCLASS contactless readers that deliver the "Controlled" assurance level (as defned in NIST SP 800-116) work with the pivCLASS Authentication Module to perform the following single-factor authentication modes:
The HID 900PHRNEK00007 Access Control Reader is also known as
HID-900PHRNEK00007
IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.
Full specifications (PDF)
