HID R10 6100 Iclass Access Control Equipment Model Overview
The HID iCLASS® contactless smart card readers are engineered for optimal access control solutions. Operating at 13.56 MHz, these readers provide a seamless user experience, allowing straightforward upgrades from existing Prox readers. They deliver versatile solutions thanks to HID Connect’s extensive network of technology partners, all while ensuring enhanced security through data encryption and mutual authentication. Whether installed in harsh environments or standard back boxes, these durable readers maintain high performance and efficiency with low power consumption.
Key Features
Format Portability: Easy transition from Prox to iCLASS technology with the same user identification numbers.
Secure: Encrypted RF data transmission minimizes risks of data compromise.
Interoperability: Compatible with various card technologies based on ISO standards.
Optimal Read Range Performance: Auto-tuning feature adjusts for best performance on any mounting surface.
Elite Custom Keys: Provides tailored security solutions for specific sites.
Specifications
Operating Voltage: 5-16 VDC
Current Requirements: 55mA average, peak varies by model
Operating Temperature: -31° to 150° F (-35° to 65° C)
Operating Humidity: 5% to 95% relative humidity non-condensing
Warranty: Lifetime against defects in materials and workmanship
HID 900NMPNEKMA005 Access Control Reader Overview

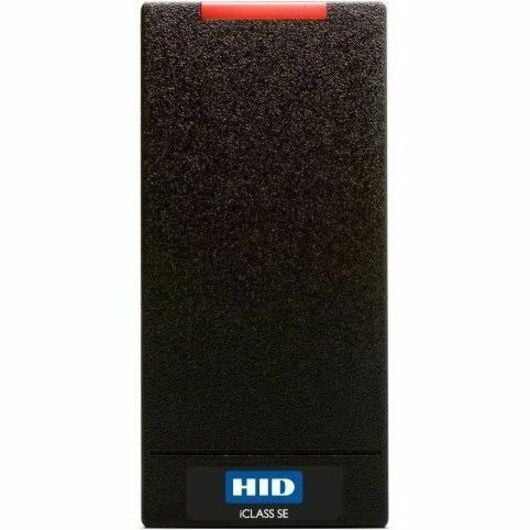

iCLASS SE® R10 is part of HID Global's iCLASS SE platform for adaptable, interoperable access control. Designed for door applications requiring a small footprint card reader, iCLASS SE® R10 supports a broad array of credential technologies and a variety of form factors including cards, fobs and mobile devices. Configurable to support HID Mobile Access®.
Key Features:
Adaptable- Interoperable with a growing range of technologies (iCLASS Seos® , iCLASS SE, iCLASS®, MIFARE® Classic, MIFARE DESFire®EV1) and form factors including mobile devices.
Powerfully Secure- The iCLASS SE platform's Secure Identity Object® (SIO®) data model provides an extra layer of encryption for additional protection of identity data
Standardized Communications (OSDP)- Uses Open Supervised Device Protocol (OSDP) for secure communications between reader and controller.
With a focus on sustainability, iCLASS SE platform readers include intelligent power management that reduces power consumption by as much as 59%. Selected models also have Environmental Product Declaration certification and Green Circle certification, which contributes toward LEED building credits.
The HID 900NMPNEKMA005 Access Control Reader is also known as
HID-900NMPNEKMA005
IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.
Full specifications (PDF)
