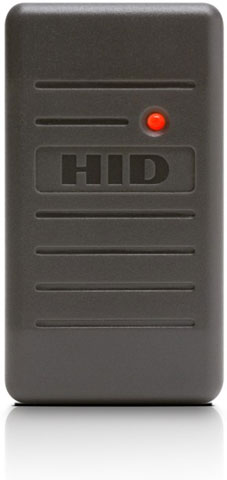

HID 6008BKB00 Access Control Reader

The HID ProxPoint Plus Reader offers a seamless combination of style, affordability, and reliable access control. Designed for both indoor and outdoor applications, this versatile proximity card reader features secure, weatherized electronics suitable for various environments. With a sleek, inconspicuous design available in multiple colors, it will blend effortlessly into any decor. Its audio and visual indicators can be configured to suit the unique needs of your access control system, ensuring efficient and effective security management for your organization.

Key Features

• Beeper and multicolor LED: Host- and/or locally controllable with various configurations.
• Reading Capability: Processes HID cards with formats up to 85 bits.
• Direct Mounting: Suitable for installation on metal surfaces without performance impact.
• Output Options: Available in Wiegand or Clock-and-Data interfaces.
• Compatibility: Works with all standard access control systems.
• Aesthetic Options: Two cover designs and four colors available for customization.

Specifications

• Dimensions: 3.135" x 1.720" x 0.660" (7.96 x 4.37 x 1.68 cm)
• Power Supply: 5-16 VDC; recommended linear power supplies
• Current Requirements: Average 30 mA, Peak 75 mA
• Operating Temperature: -22° to 150° F (-30° to 65° C)
• Humidity: 0-95% relative humidity, non-condensing
• Weight: 2.7 oz. (75 gm)
• Environmental Rating: IP55
• Certifications: UL294/CUL, FCC, IC, CE, and more
• Maximum Read Range: Up to 3" (7.6 cm) for ProxCard® II card
