Full specifications (PDF)
Maximum Operating Range:
3"

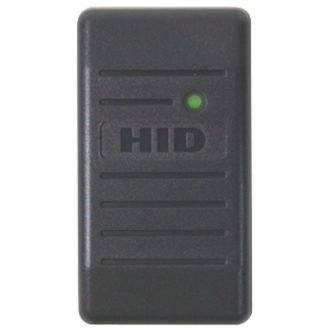

HID 6005BGB06 Access Control Reader
Part Number:
6005BGB06
Model:
6005
HID 6005 Access Control Reader Model Overview
The HID ProxPoint® Plus Reader combines affordable pricing with reliability and security in access control. With a sleek, inconspicuous design, this proximity card reader offers seamless integration for both indoor and outdoor settings. Its robust construction ensures durability, while the secure potted electronics deliver high performance. Compatible with various formats and access control systems, the reader features customizable audiovisual indicators, making it ideal for diverse site requirements.
Key Features
- Multiple Configuration Options: Extensive beeper and multicolor LED settings for customization based on site needs.
- Built for Durability: Rugged, weatherized polycarbonate enclosure ensures reliability in harsh environments.
- Wide Compatibility: Compatible with standard access control systems, reading HID cards with formats up to 85 bits.
- Flexible Mounting: Can be mounted directly onto metal surfaces without affecting read range performance.
- Lifetime Warranty: Comprehensive warranty against defects in materials and workmanship.
Specifications
- Mounting: Directly onto metal surfaces
- Power Supply: 5-16 VDC
- Current Requirements:
- Average: 30 mA
- Peak: 75 mA
- Operating Temperature: -22° to 150° F (-30° to 65° C)
- Operating Humidity: 0-95% relative humidity, non-condensing
- Weight: 2.7 oz. (75 gm)
- Dimensions: 3.135" x 1.720" x 0.660" (7.96 x 4.37 x 1.68 cm)
- Environmental Rating: IP55
- Cable Distance: 500 feet (150 m) for Wiegand or Clock-and-Data interfaces
HID 6005BGB06 Access Control Reader Overview
HID's ProxPoint® Plus reader combines multiple configuration options with an attractive, inconspicuous design and economical price. Its secure potted electronics are ideal for both indoor and outdoor applications.
- Small sized, low cost reader features a beeper and multicolor LED which can be host and/or locally controlled.
- Potted reader suitable for indoor or outdoor use.
- 18" (45 cm) wire pigtail standard; consult factory for 9' (2.7 m) pigtail available by special order.
- Classic Series covers available in black, gray, white or beige. Designer Series covers available in black or gray.
Key Features
- Features a beeper and multicolor LED which can be hostand/ or locally controlled.
- Enables various beeper and LED configurations, depending on individual site requirements.
- Can read HID cards with formats up to 85 bits.
- Designed for mounting directly onto metal with no change in read range performance.
- Available with either Wiegand or Clock-and-Data (magnetic stripe data) output.
- Compatible with all standard access control systems.
- Aesthetic design available in two cover designs and in four colors to match any decor.
- Includes multilingual installation manual.
Technical Information
Interfaces/Ports
Host Interface:
Wiegand
Physical Characteristics
Product Color:
Gray
Height:
3.1"
Width:
1.7"
Depth:
0.7"
Weight (Approximate):
2.70 oz
Miscellaneous
Package Contents:
- 125 kHz Mini Mullion Proximity Reader
- Multilingual Installation Manual
Additional Information:
- Features a beeper and multicolor LED which can be hostand/ or locally controlled
- Enables various beeper and LED configurations, depending on individual site requirements
- Can read HID cards with formats up to 85 bits
- Designed for mounting directly onto metal with no change in read range performance
- Available with either Wiegand or Clock-and-Data (magnetic stripe data) output
- Aesthetic design available in two cover designs and in four colors to match any decor.
- Operating frequency:125 kHz
- Read range Up to 3.0 ? (7.5 cm)
- Power supply:5-16 VDC
- Operating temperature:-22° to 150° F (-30° to 65° C)
- Operating humidity:0-95% relative humidity noncondensing
- Pigtail (18 inches/45.7 cm)
- Beep on, LED normally red, reader flashes green on tag read
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
43201815
