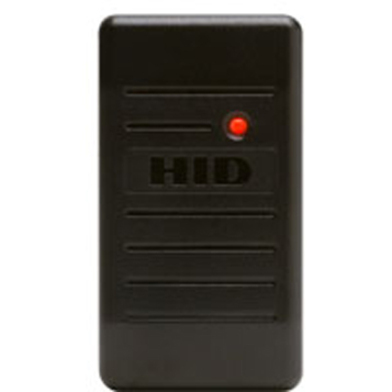

HID 6005B1B07 Access Control Card Reader

HID 6005 - ProxPoint Plus 6005B Card Reader Access Device - Proximity - 3" Operating Range - Wiegand - 16 V DC
$89.75
Temporarily out of stock; available to order
Small sized, low cost reader features a beeper and multicolor LED which can be host and/or locally controlled

HID's 6005 reader combines multiple configuration options with an attractive, inconspicuous design and economical price. Its secure potted electronics are ideal for both indoor and outdoor applications.

General Information

  • Product Type: Card Reader Access Device
  • Product Series: 6005
  • Brand Name: HID
  • Manufacturer: HID Global Corporation
  • Product Model: 6005B
  • Product Name: ProxPoint Plus 6005B Card Reader Access Device
  • Product Line: ProxPoint Plus

Technical Information

  • Identification Method: Proximity
  • Operating Range: 3"

Physical Characteristics

  • Height: 3.1"
  • Width: 1.7"
  • Depth: 0.7"
  • Color: Black
  • Form Factor: Door-mountable
  • Material: Polycarbonate
  • Weight (Approximate): 2.65 oz

Interfaces/Ports

  • Interfaces/Ports: Wiegand

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Package Contents:
    • ProxPoint Plus 6005B Card Reader Access Device
    • Multilingual Installation Manual
    • ProxPoint Plus 6005B Card Reader Access Device
    • Multilingual Installation Manual
  • Certifications & Standards:
    • UL294
    • cUL
    • FCC
    • IC
    • CE
    • C-tick
    • SRRC
    • MIC
    • NCC
    • MIC
    • iDA

Controls/Indicators

  • Indicators & Controls:
    • Beeper
    • LED

Power Description

  • Input Voltage: 16 V DC
  • Input Current: 30 mA

Warranty

  • Limited Warranty: Lifetime

Full specifications (PDF)

Full specifications (PDF)

Brand HID
Model 6005
Color Designer Black
Hardware Option Pigtail
Configuration Setting Beep off, LED normally off, host must flash red and/or green


The HID 6005B1B07 is also known as HID-6005B1B07 .
