HID 5365EKT00 Access Control Reader


(No reviews)

Be the first to

Write a Review

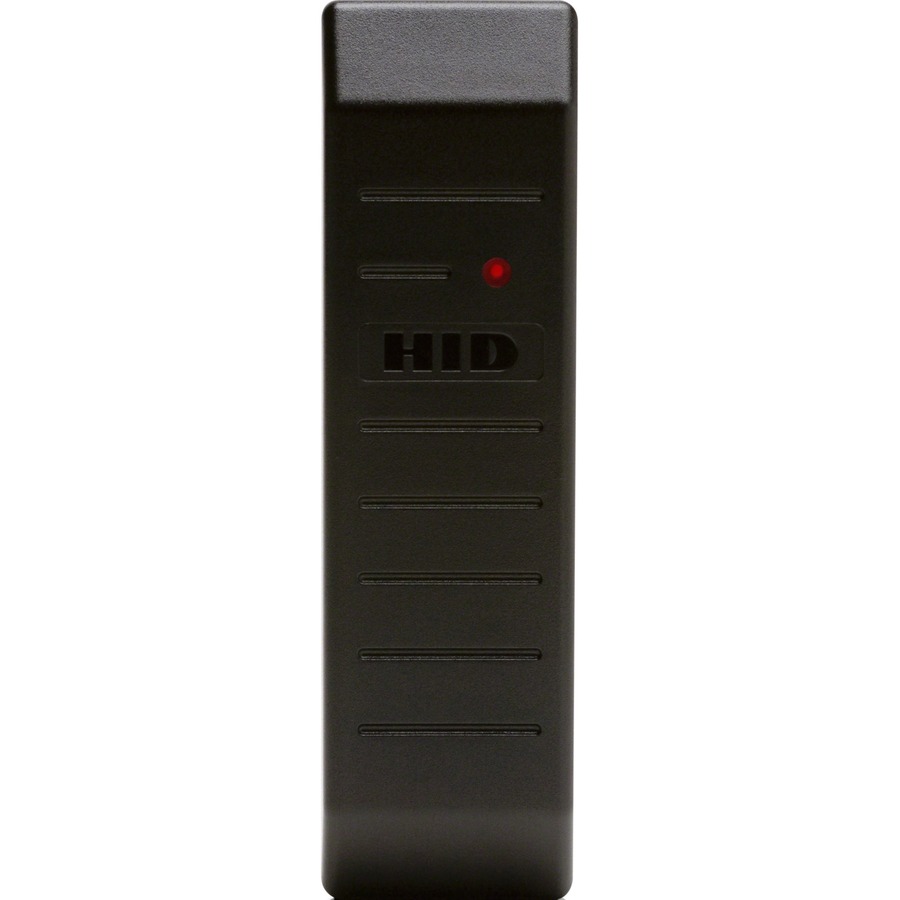

HID 5365 - 125kHz Mullion Mount Proximity Reader (Terminal Strip and Config 00) - Color: Black
Provides multicolor LED, compatibility with all standard access control systems and internal or host control of LED and beeper.

The 5365 proximity card reader's potted electronics and slim, attractive design are ideal for indoor or outdoor mounting. It accepts 5- to 16-volts, meeting most voltage requirements and is available with Wiegand or Clock-and-data interfaces. Allows easy upgrade from magstripe to a proximity reader which means there is no rewiring or pulling of new cable required. The 5365 offers a high reliability, consistent read-range and low power consumption in an easy-to-install package. It also mounts directly onto metal with no change in read range performance.

General Information

  • Product Type: Card Reader Access Device
  • Brand Name: HID
  • Manufacturer: HID Global Corporation
  • Product Model: 5365
  • Product Name: MiniProx 5365 Card Reader Access Device
  • Product Line: MiniProx

Technical Information

  • Identification Method: Proximity

Physical Characteristics

  • Height: 6"
  • Width: 1.7"
  • Depth: 1"
  • Color: Black


  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Certifications & Standards:
    • Canada/UL 294 Listed: Access Control System Units Canada/UL 1604 Listed (with Haz. Loc. junction box only): Hazardous Locations Class I, Div. 2, Groups A,B,C,D.
    • FCC Certification, United States
    • Canada Certification
    • EU and CB Scheme Electrical Safety (EN60950 and IEC60950 ITE Electrical Safety)
    • Fifteen EU Countries under the R&TTE Directive (EN 300330 - SRD, and ETS 300 683 - EMC)
    • CE Mark
    • Australia C-Tick
    • New Zealand
  • Additional Information:
    • Available with Wiegand or Clock-and-Data interface
    • Potted reader suitable for indoor or outdoor use


  • Indicators & Controls:
    • Multicolor LED
    • Host Control of LED
    • Beeper

Power Description

  • Input Voltage: 12 V DC
  • Input Current: 110 mA

Full specifications (PDF)

Full specifications (PDF)

Brand HID
Model 5365
Color Black
Hardware Option Terminal Strip
Configuration Setting Beep on, LED normally red, reader flashes green on tag read
