HID 5365EGH00 Access Control Equipment

The HID Turnstile Wiegand Reader is engineered for high-traffic environments, providing reliable access control solutions used by professionals globally. Its robust construction of high-impact aluminum alloy ensures durability against vandalism, while the epoxy-potted design protects against moisture ingress. With its bi-color LED indicators, this reader quickly signals successful card reads, enhancing user experience as large numbers of individuals move through secure areas efficiently.

• Versatile mounting options: Can be installed horizontally or vertically.
• Weatherized and vandal-resistant: Sealed in a rugged polymeric enclosure.
• Bi-color LED: Provides immediate visual feedback on card status.
• Magnetic field immunity: Ensures stable performance in diverse conditions.

• Power input: 5-12 VDC
• Current: 40 mA (typical)
• Dimensions: 1.75" x 7.0" x 1.75" (4.45 x 17.8 x 4.45 cm)
• Slot width: 0.062" to 0.069" (1.6 mm to 1.75 mm)
• Operating temperature: -40° F to 160° F (-40° C to 70° C)
• Operating humidity: 10 to 90%
• Weight: 20 oz. (567 g)
• Material: Long-wearing Aluminum Alloy 6063
• Certifications: UL 294 listed, CE mark approved
• Cable distance: 500 feet (150 m) using shielded 22 AWG cable

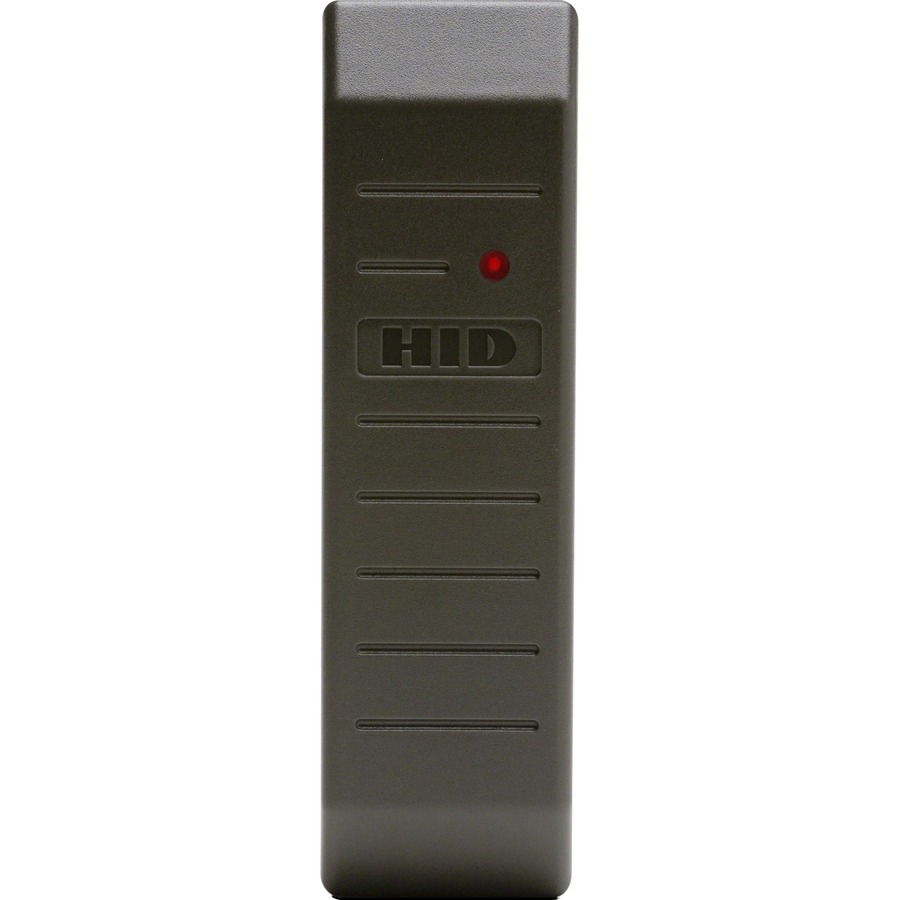

MULLION MOUNT PROXIMITY CARD READER

The MiniProx® proximity card reader's potted electronics enhance the security of the reader. The slim, attractive design is ideal for indoor or outdoor mounting.

• Accepts 5 to 16 volts, meeting most voltage requirements.
• Available with Wiegand or Clock-and-Data interface. ƒ
• Allows easy upgrade from magstripe to a proximity reader; no rewiring or pulling
• of new cable required.
• ƒOffers high reliability, consistent read-range and low power consumption in an
• easy-to-install package. ƒ Mounts directly onto metal with no change in read range performance. ƒ
• Provides multicolor LED, compatibility with all standard access control systems ƒ
• and internal or host control of LED and beeper. ƒ
• Includes multilingual installation manual.
