Full specifications (PDF)
Maximum Operating Range:
5.50"

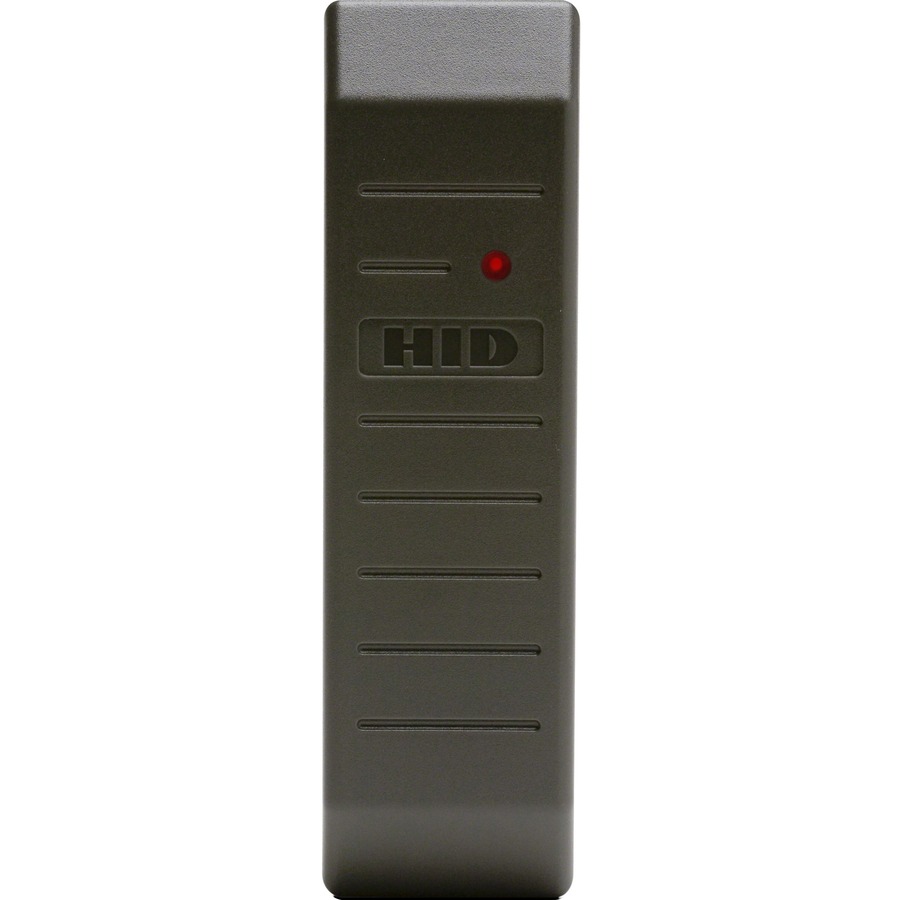

HID 5365E2P00 Access Control Reader
Part Number:
5365E2P00
Model:
5365
HID 5365 Access Control Reader Model Overview
The 5365 proximity card reader's potted electronics and slim, attractive design are ideal for indoor or outdoor mounting. It accepts 5- to 16-volts, meeting most voltage requirements and is available with Wiegand or Clock-and-data interfaces. Allows easy upgrade from magstripe to a proximity reader which means there is no rewiring or pulling of new cable required. The 5365 offers a high reliability, consistent read-range and low power consumption in an easy-to-install package. It also mounts directly onto metal with no change in read range performance.
HID 5365E2P00 Access Control Reader Overview
MULLION MOUNT PROXIMITY CARD READER
The MiniProx® proximity card reader's potted electronics enhance the security of the reader. The slim, attractive design is ideal for indoor or outdoor mounting.
- Accepts 5 to 16 volts, meeting most voltage requirements.
- Available with Wiegand or Clock-and-Data interface. ƒ
- Allows easy upgrade from magstripe to a proximity reader; no rewiring or pulling
- of new cable required.
- ƒOffers high reliability, consistent read-range and low power consumption in an
- easy-to-install package. ƒ Mounts directly onto metal with no change in read range performance. ƒ
- Provides multicolor LED, compatibility with all standard access control systems ƒ
- and internal or host control of LED and beeper. ƒ
- Includes multilingual installation manual.
Technical Information
Interfaces/Ports
Host Interface:
Wiegand
Physical Characteristics
Product Color:
Gray
Height:
6"
Width:
1.7"
Depth:
1"
Weight (Approximate):
7.89 oz
Miscellaneous
Package Contents:
- MiniProx Reader
- Multilingual Installation Manual
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
Lifetime
Item Numbers
UNSPSC:
43201815
Questions? Get help from
an ID Expert!
an ID Expert!
The HID 5365E2P00 Access Control Reader is also known as
HID-5365E2P00
