Identification Method:
- Proximity
- Magnetic Strip
HID 5365E1H00 Access Control Equipment
Part Number:
5365E1H00
Model:
Parts
HID Parts Accessory Model Overview
Products and parts from HID.
HID 5365E1H00 Access Control Equipment Overview

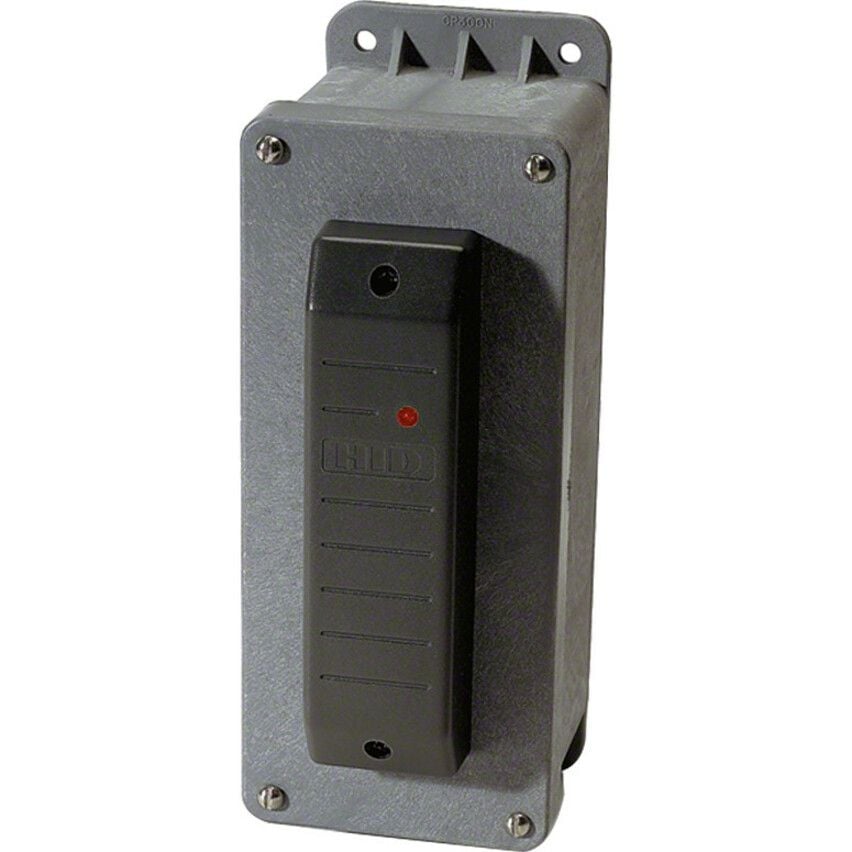

The Hazardous Location MiniProx® provides the same features and dimensions as the MiniProx reader, with an incorporated junction box rated for use in hazardous locations. The junction box is attached to an appropriate surface location utilizing four holes.
Technical Information
Interfaces/Ports
Wiegand:
Yes
Power Description
Input Voltage:
16 V DC
Physical Characteristics
Form Factor:
Mullion Mount
Product Material:
Polycarbonate
Product Color:
Black
Height:
6"
Width:
1"
Depth:
1.7"
Weight (Approximate):
3.81 oz
Miscellaneous
Additional Information:
- Accepts 5 to16 volts, meeting most voltage requirements.
- Available with Wiegand or Clock-and-data interface.
- Allows easy upgrade from magstripe to a proximity reader; no rewiring or pulling of new cable required.
- Offers high reliability, consistent read-range and low power consumption in an easy-to-install package.
- Mounts directly onto metal with no change in read range performance.
- Provides multicolor LED, compatibility with all standard access control systems and internal or host control of LED and beeper.
Certifications & Standards:
- Class I
- Div. 2
- Groups A,B,C,D
- FCC
- CE
- C-Tick Mark
- EMC
- UL 294
- UL 1604
Environmentally Friendly:
Yes
Item Numbers
UNSPSC:
46171600, 46171619
