HID 5355AGK00 Access Control Reader


0.0

(No reviews)

Be the first to

Write a Review

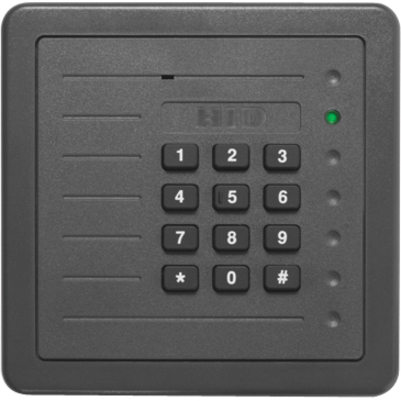

HID 5355 - ProxPro with Keypad 125 kHz Wall Switch Keypad Proximity Reader (Wiegand with Terminal Strip) - Color: Gray
$371.70
In Stock:
Ships Same Day
Your satisfaction is guaranteed!
We want to make sure you are completely satisfied with your purchase. Customers must return their product within 30 days of shipment to receive a full credit less a 15% restocking fee. Returns must be presented in new condition with all of the original packaging.
Share:
Ideal for medium-range applications.

The 5355 proximity card reader's weatherproof design and architecturally attractive enclosure allows easy mounting indoors or out. The 5355 is ideal for applications requiring a larger read range. This reader employs a high reliability, consistent read range characteristics, and low power consumption in a single, easy-to-install package. Features multicolor LED, internal or host control of the LED, and/or beeper and a beeper "off" switch for silent operation. The 5355 also provides Wiegand protocol interface compatibility with all standard access control systems. The HID 5355 offers an optional, fully integrated personal identification number keypad for heightened security. Can be mounted to glass (using the optional glass mounting kit).

General Information

  • Product Type: Card Reader/Keypad Access Device
  • Brand Name: HID
  • Manufacturer: HID Global Corporation
  • Product Model: 5355
  • Product Name: ProxPro 5355 Card Reader/Keypad Access Device
  • Product Line: ProxPro

Technical Information

  • Identification Method:
    • Proximity
    • Key Code
  • Application/Usage: Wall

Physical Characteristics

  • Height: 5"
  • Width: 5"
  • Depth: 1"
  • Color: Charcoal Gray
  • Weight (Approximate): 12 oz

Interfaces/Ports

  • Interfaces/Ports: Serial

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority:
    • RoHS
    • WEEE
  • Certifications & Standards:
    • Canada/UL 294 Listed: Access Control System Units
    • FCC Certification, United States
    • Canada Certification
    • CE Mark, Fifteen EU Countries under the R&TTE
    • Directive (EN60950 - ITE Electrical Safety, EN 300 330 - SRD, and ETS 300 683 - EMC)
    • IEC60950, ITE CB Scheme Electrical Safety
    • Australia C-Tick Mark, New Zealand EMC, China
    • Taiwan (5355 only)

Power Description

  • Input Voltage: 24 V DC
  • Input Current: 120 mA

Full specifications (PDF)

Full specifications (PDF)

Brand HID
Model 5355
Color Gray
Hardware Option Keypad Terminal Strip
Configuration Setting Beep on, LED normally red, reader flashes green on tag read
