HID 51400 ID Card Printer
Full specifications (PDF)

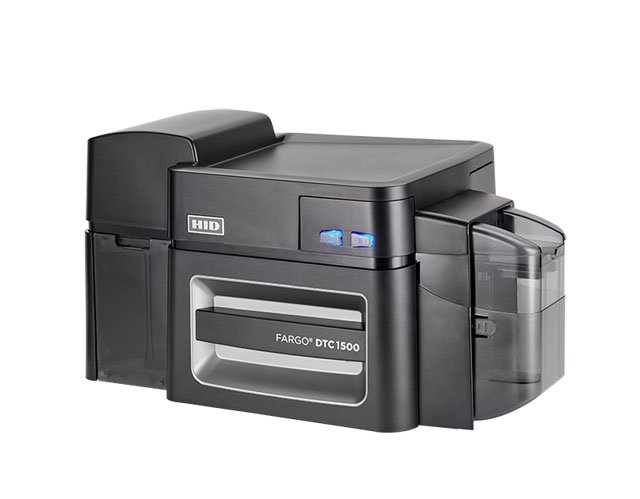

HID DTC1500 ID Card Printer Model Overview
The FARGO® DTC1500 Direct-to-Card Printer offers advanced card printing and encoding capabilities suitable for a wide range of organizations, including government ID projects, educational institutions, and healthcare facilities. Designed with innovative security features, it includes a built-in custom watermark overlay and resin scramble data protection to combat counterfeiting while providing high-quality cards efficiently. The modular design allows for easy upgrades, and the option for dual-sided printing ensures versatility without compromising on cost or quality.
Key Features:
- Built-in dual-side printing activated via RFID for effortless upgrades.
- Custom watermark overlay enhances security against duplication.
- Resin scramble data protection hides sensitive information.
- High-capacity consumables for lower costs per card.
- Eco-friendly certified with efficient energy consumption.
- Easy integration with Asure ID® software for personalized badge design.
Specifications:
- Print Method: Dye Sublimation / Resin thermal transfer
- Resolution: 300 dpi (11.8 dots/mm)
- Print Speed: 6 seconds (K*), 16 seconds (YMCKO*), 24 seconds (YMCKOK*)
- Card Sizes: CR-80 (3.375"L x 2.125"W) & CR-79 (3.313" L x 2.063" W)
- Input Hopper Capacity: 100 cards
- Output Hopper Capacity: 100 cards
- Operating Temperature: 65° to 80° F
- Weight: 11 lbs / 5 Kg (Printer only)
- Warranty: Three years on printer, printhead
Recommended Accessories
Category
- ID Card Printer Accessories (3)
Recommended Accessories for Model: HID 51400 ID Card Printer
Top ID Card Printer Accessories Purchased With HID 51400
-
HID EDP-00363 AccessoryPrinter Spare Parts, HID, Asy-PCB Main Prog DTC1500 Fd PlascoShips from vendor — chat for lead time$947.75 -
HID PCA-00376 AccessoryPrinter Spare Parts, HID, Asy-PCB Main Prog DTC1500Ships from vendor — chat for lead time$1,243.33 -
HID PCA-00377 AccessoryPrinter Spare Parts, HID, Asy-PCB Main Prog DTC1500 FdShips from vendor — chat for lead time$995.13
Frequently Asked Questions
What are the print speed and volume capabilities of the Fargo DTC1500?
The Fargo DTC1500 produces 225 full-color single-sided cards per hour, making it ideal for high-volume card issuance. The printer accepts large-run ribbon supplies, including a 500-print YMCKO ribbon and an 850-print half-panel color ribbon, delivering approximately 50% more prints per ribbon compared to previous models and one of the lowest cost-per-card rates available.
Can the DTC1500 printer be upgraded to dual-sided printing after purchase?
Yes, the Fargo DTC1500 comes standard with a built-in dual-sided flipper, so upgrading from single-sided to dual-sided printing is simple. If you later need to print on both sides of your cards, you can insert an included RFID tag into the printer to activate dual-sided printing without requiring a hardware replacement.
What security features does the DTC1500 offer for credential protection?
The DTC1500 includes multiple security layers: a custom security watermark capability (a transparent image printed over credentials) that requires no special overlaminates or equipment, password protection to restrict printer access to approved operators, and a resin erase feature that scrambles resin-printed text to prevent duplication. Optional lamination with UV or holographic films can further enhance anti-fraud properties and card durability.
What connectivity options are available on the Fargo DTC1500?
The DTC1500 comes standard with both USB 2.0 and Ethernet connectivity, allowing you to establish a network connection from one or more workstations. We also offer an optional Wi-Fi accessory that enables card issuance from anywhere, anytime, without requiring direct physical connection to the printer.
Is the DTC1500 suitable for temporary or reusable ID cards?
Yes, the DTC1500 is well-suited for visitor badges and temporary ID cards. When paired with rewritable cards, the printer's built-in erase and rewrite function allows cards to be reused for future issuance, making it efficient for organizations with fluctuating credential needs.
Can the DTC1500 encode magnetic stripe or smart card data?
The standard DTC1500 does not include encoding capability, but we offer inline encoding upgrades for magnetic stripes and smart card technologies. This optional configuration allows you to encode cardholder or company information and program access control data in a single pass, essential for high-security environments requiring identity verification and access control integration.
