HID 2102PGCMN-120568 Access Control Cards
Full specifications (PDF)
HID iCLASS SE Card Access Control Cards Model Overview

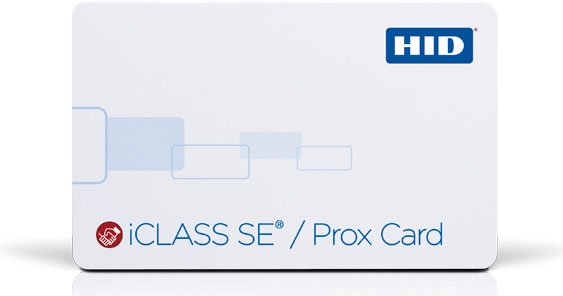

The HID iCLASS® SE™ Card is a next-generation high-frequency contactless smart card designed for versatile and secure access control applications. With advanced Secure Identity Object™ technology, this card provides multi-layered security that safeguards identity data while enabling easy integration into a wide range of systems. Its 13.56 MHz read/write capability ensures fast and reliable performance, making it ideal for various uses including biometric verification, time management, and customer loyalty programs. Choose the iCLASS SE Card for a future-proof solution that grows with your needs.
Key Features
- Multi-Layered Security: Ensures data authenticity and privacy.
- Flexible Configurations: Available in 2k, 16k, or 32k bits with options for magnetic stripes and custom artwork.
- Durability: Passive design guarantees a minimum of 100,000 reads.
- Trusted Identity Platform: Provides a secure ecosystem for interoperable products.
- High Compatibility: Works seamlessly with any reader that supports iCLASS SE™ technology.
Specifications
- Technology: 13.56 MHz read/write contactless smart card
- Dimensions: 2.127" x 3.375" x 0.033"
- Weight: 0.20 oz (5.7 g)
- Operating Temperature: -40 to 122°F (-40 to 50°C)
- Memory Options: 2k (256 Byte), 16k (2k Byte), 32k (4k Byte) configurations
- Write Endurance: Minimum 100,000 cycles
- Data Retention: 10 years
- Warranty: Lifetime warranty
Frequently Asked Questions
What processor and operating system does the Zebra TC5X-EXO1-01 use?
The TC5X-EXO1-01 is powered by a Qualcomm QCS4490 octa-core processor running at 2.4 GHz and comes with Android 13, which is upgradeable to Android 17. This combination delivers robust performance for warehouse and logistics operations while maintaining long-term software support through multiple Android versions.
Is the Zebra TC5X-EXO1-01 rugged enough for extreme warehouse environments?
Yes, the TC5X-EXO1-01 meets enterprise-grade durability standards with a 6 ft./1.8 m drop specification to concrete, IP65/IP67 sealing ratings, and operating temperatures from -22°F to +122°F (-30°C to +50°C). It also withstands 1,000 tumbles at 0.5 m and complies with MIL-STD 810H military standards, making it ideal for harsh logistics and warehouse environments.
What connectivity options are available on the TC5X-EXO1-01?
The device features two rugged USB 2.0 connectors and two charge pogo pads on each side for flexible connectivity and charging options. This dual-connector design ensures reliable data transfer and power management in demanding warehouse operations where devices may be docked or charged from multiple angles.
What security features does the TC5X-EXO1-01 include?
The TC5X-EXO1-01 incorporates FIPS 140-2 certification, Secure Boot, and Verified Boot security features to protect sensitive warehouse and logistics data. These enterprise-grade security protocols ensure compliance with data protection requirements and safeguard against unauthorized access.
How much memory does the Zebra TC5X-EXO1-01 have?
The TC5X-EXO1-01 is equipped with 6 GB of RAM and 64 GB of internal Flash storage, providing sufficient capacity for running multiple warehouse management applications and storing operational data without requiring constant cloud connectivity.
Can the TC5X-EXO1-01 operate in freezer environments?
Yes, the TC5X-EXO1-01 is designed for freezer operations with humidity tolerance of 5% to 95% in condensing conditions and operating temperatures down to -22°F (-30°C). This makes it suitable for cold chain logistics and frozen warehouse environments. Contact us today at barcodesinc.com to discuss your specific cold storage requirements.
