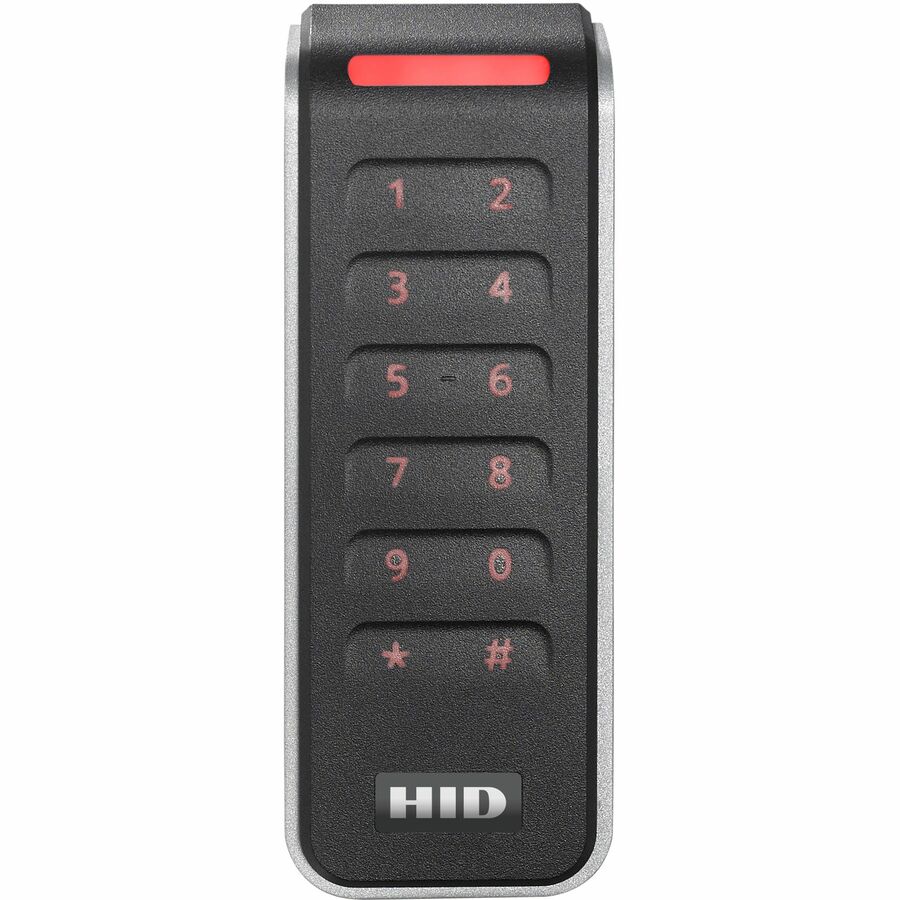

HID 20KTKS-01-000000 Access Control Reader

HID Indala Signo Reader 20k - Signo 20K, Black/Silver, Terminal, Crd Pfl Seos, Wiegand, 4-B MSG, 13-inch, Red LED, Green Flash, Red KBD
  • Highly Versatile - Support for the widest range of credential technologies, including HID Mobile Access® via native Bluetooth and Near Field Communication (NFC).
  • Unparalleled Performance - Ultra secure storage of cryptographic keys on certified secure element hardware, plus a new surface detection feature that enables the reader to automatically recalibrate and optimize read range performance.
  • Connected to the Future - All readers include out-of-the-box support for Open Supervised Device Protocol (OSDP) for secure bidirectional communication.
Read More
$410.34
Add to Quote
HID HID Indala Signo Reader 20k Access Control Reader Model Overview
HID Signo is the signature line of physical access control readers from HID Global. The versatility, performance and connected capabilities of HID Signo readers set a new industry benchmark for the most highly adaptable, interoperable and secure approach to electronic access control.
HID 20KTKS-01-000000 Access Control Reader Overview

HID Signo. The Signature Line of Readers from HID Global

Featuring a sleek new design, HID Signo™ Readers are highly versatile, reliably secure and provide a smarter, more connected access control experience.

Highly Versatile - HID Signo Readers support the widest range of credential technologies, including HID Mobile Access®. Also includes Apple's Enhanced Contactless Polling (ECP) to support credentials in Apple Wallet.

Unparalleled Performance - Offers ultra-secure storage of cryptographic keys on certified secure element hardware, plus a new surface detection feature that allows the reader to automatically recalibrate and optimize read range performance.

Connected to the Future - All readers include out-of-the-box support for Open Supervised Device Protocol (OSDP) for secure bidirectional communication and an easy migration from Wiegand. Each is also ready for mobile access. HID Signo Readers can also be connected and managed using a smartphone.

Energy Saving - HID Signo's Intelligent Power Mode feature reduces energy consumption by up to 43% when the reader is at rest.

Protection Against Brute Force Attacks - HID Signo™ Readers include velocity checking, a patented feature to protect against brute force rapid electronic attacks.

Reliable in Adverse Conditions - IP65 outdoor rating

Visually Impaired Mode - HID Signo™ Keypad Readers have a built-in visually impaired mode that can be activated by persons in need.

Technical Information
Identification Method:
  • Key Code
  • Proximity
Operating Range:
3.94"
Application/Usage:
  • Door
  • Indoor
  • Outdoor
Ingress Protection (IP) Rating:
IP65
Interfaces/Ports
Serial:
Yes
Wiegand:
Yes
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Form Factor:
  • Mullion Mount
  • Surface Mount
Color:
  • Black
  • Silver
Height:
4.8"
Width:
1.8"
Depth:
0.9"
Weight (Approximate):
3.17 oz
Miscellaneous
Compatibility:
  • Mobile Credentials powered by Seos® (HID Mobile Access)
  • Seos
  • iCLASS SE
  • iCLASS SR
  • iCLASS
  • MIFARE Classic
  • MIFARE DESFire EV1/EV2
  • FeliCa
  • Contactless e-Purse Application Specification (CEPAS)
  • HID Proximity
  • Indala Proximity
  • AWID Proximity
  • EM Proximity
Environmentally Friendly:
Yes
Item Numbers
UNSPSC: 46171600, 46171619
Questions? Get help from
an ID Expert!

How many IDs will you
print per year?

The HID 20KTKS-01-000000 Access Control Reader is also known as HID-20KTKS01000000
