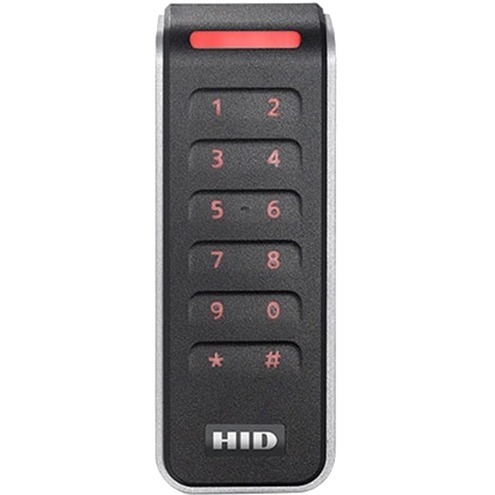

HID Signo Reader 20k Access Control Reader Model Overview
The HID Signo™ 20K adds an integrated keypad to the slim Signo form factor for multi-factor options (card/phone + PIN). Like the 20, it’s mobile-ready out of the box (Bluetooth and NFC with Apple ECP), supports a wide array of high- and low-frequency credentials, and connects cleanly to modern panels via OSDP. Built for easy deployment and remote configuration, the 20K is a versatile choice where added PIN entry is required.
Key Features:
Mobile-ready + keypad: Apple Wallet via ECP, with a 2×6 integrated keypad for PIN.
Operating Temperature: -31°F to +150°F (-35°C to +66°C)
Environmental Rating: UL294 indoor/outdoor, IP65
Dimensions (W x L x D): 1.78 in x 4.79 in x 0.85 in (45 x 121.5 x 21.5 mm)
Weight: 3.17–3.88 oz (terminal vs pigtail)
Certifications: UL294/cUL, FCC, IC, CE, RCM, SRRC, KCC, NCC, iDA, RoHS, MIC, Bluetooth SIG
Warranty: Limited Lifetime
HID 20KNKS-02-0002BL Access Control Reader Overview
THE SIGNATURE LINE OF READERS FROM HID GLOBAL
Highly Versatile - Support for the widest range of credential technologies, including HID Mobile Access® via native Bluetooth and Near Field Communication (NFC).
Unparalleled Performance - Ultra secure storage of cryptographic keys on certified secure element hardware, plus a new surface detection feature that enables the reader to automatically recalibrate and optimize read range performance.
Connected to the Future - All readers include out-of-the-box support for Open Supervised Device Protocol (OSDP) for secure bidirectional communication.
HID Signo™ is the signature line of physical access control readers from HID Global. The versatility, performance and connected capabilities of HID Signo readers set a new industry benchmark for the most highly adaptable, interoperable and secure approach to electronic access control.
Offering an unparalleled breadth of functionality, HID Signo affords security system installers and administrators a simple and effective approach to secure access control for almost any scenario.
With support for the widest array of credential technologies - past, present and future - HID Signo is the perfect choice for those looking to make the transition to a secure authentication technology.
HID Signo readers transcend the traditional approach to security by being designed to be connected and managed remotely without needing to physically touch each device. This functionality empowers access control systems to dynamically respond as new needs, configurations or threats arise.
The HID 20KNKS-02-0002BL Access Control Reader is also known as
HID-20KNKS020002BL
IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.
Full specifications (PDF)
