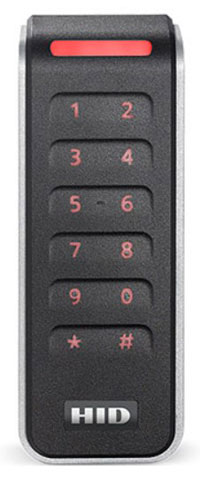

HID 20KNKS-00-000T6H Access Control Reader

The HID Signo™ 20K adds an integrated keypad to the slim Signo form factor for multi-factor options (card/phone + PIN). Like the 20, it’s mobile-ready out of the box (Bluetooth and NFC with Apple ECP), supports a wide array of high- and low-frequency credentials, and connects cleanly to modern panels via OSDP. Built for easy deployment and remote configuration, the 20K is a versatile choice where added PIN entry is required.

• Mobile-ready + keypad: Apple Wallet via ECP, with a 2×6 integrated keypad for PIN.
• Multi-layered security: EAL5+ Secure Element, OSDP secure channel, SIO-based authentication.
• Broad credential support: Seos®, iCLASS SE®/SR®, iCLASS®, MIFARE® (Classic, DESFire EV1/EV2), FeliCa™, CEPAS, plus 125 kHz HID/Indala/AWID/EM proximity.
• Seamless integration: Managed via HID Reader Manager®; part of the HID Origo® ecosystem.
• Outdoor-ready: UL294 indoor/outdoor and IP65 rated.

• Form factor / Mounting: Slim mullion-mount with integrated keypad (2×6)
• Operating Voltage: 12V DC
• Typical Read Range: Seos/MIFARE/ISO14443A: 1.6–4 in (4–10 cm); 125 kHz: 2.4–4 in (6–10 cm)
• Communications: Wiegand, Clock-and-Data, RS-485 (OSDP)
• Operating Temperature: -31°F to +150°F (-35°C to +66°C)
• Environmental Rating: UL294 indoor/outdoor, IP65
• Dimensions (W x L x D): 1.78 in x 4.79 in x 0.85 in (45 x 121.5 x 21.5 mm)
• Weight: 3.17–3.88 oz (terminal vs pigtail)
• Certifications: UL294/cUL, FCC, IC, CE, RCM, SRRC, KCC, NCC, iDA, RoHS, MIC, Bluetooth SIG
• Warranty: Limited Lifetime
