HID Signo Reader 20k Access Control Reader Model Overview

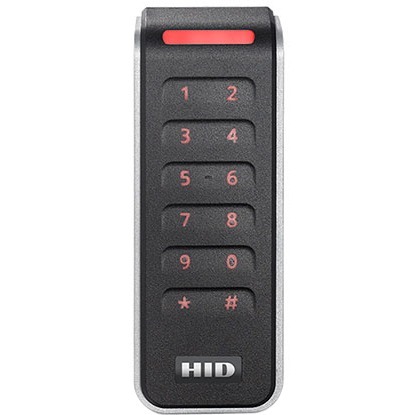

The HID Signo™ 20K adds an integrated keypad to the slim Signo form factor for multi-factor options (card/phone + PIN). Like the 20, it’s mobile-ready out of the box (Bluetooth and NFC with Apple ECP), supports a wide array of high- and low-frequency credentials, and connects cleanly to modern panels via OSDP. Built for easy deployment and remote configuration, the 20K is a versatile choice where added PIN entry is required.
Key Features:
Mobile-ready + keypad: Apple Wallet via ECP, with a 2×6 integrated keypad for PIN.
Operating Temperature: -31°F to +150°F (-35°C to +66°C)
Environmental Rating: UL294 indoor/outdoor, IP65
Dimensions (W x L x D): 1.78 in x 4.79 in x 0.85 in (45 x 121.5 x 21.5 mm)
Weight: 3.17–3.88 oz (terminal vs pigtail)
Certifications: UL294/cUL, FCC, IC, CE, RCM, SRRC, KCC, NCC, iDA, RoHS, MIC, Bluetooth SIG
Warranty: Limited Lifetime
HID 20KNKS-00-000000 Access Control Reader Overview
HID Signo™ is the signature line of physical access control readers from HID Global. The versatility, performance and connected capabilities of HID Signo readers set a new industry benchmark for the most highly adaptable, interoperable and secure approach to electronic access control.
Offering an unparalleled breadth of functionality, HID Signo affords security system installers and administrators a simple and effective approach to secure access control for almost any scenario.
With support for the widest array of credential technologies - past, present and future - HID Signo is the perfect choice for those looking to make the transition to a secure authentication technology.
HID Signo readers transcend the traditional approach to security by being designed to be connected and managed remotely without needing to physically touch each device. This functionality empowers access control systems to dynamically respond as new needs, configurations or threats arise.
The HID 20KNKS-00-000000 Access Control Reader is also known as
HID-20KNKS00000000
or 20KNKS00000000.
IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.
Full specifications (PDF)
