HID 2004PGGMN Access Control Cards

Part Number: 2004PGGMN
Model: Parts
to get Free Ground Shipping on your order.
$16.23

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Operating Frequency
13.56 MHz
Application/Usage
Cashless VendingBiometric VerificationPublic TransportLoyalty ProgramsAccess Control
Product Color
Glossy White
Product Material
Polyvinyl Chloride (PVC)

Product Description:

  Standard PVC, 32k Bits (4k Bytes) Application Areas 16k/16 + 16k/1, Programmed iClass, Plain White with Gloss Finish, Sequential Matching Internal/External (inkjet), No Slot Punch, Priced Per Card, Minimum Order Quantity:100, Requires Format Number, Facility Code, and Card range for Programming

HID Parts Accessory Model Overview

Products and parts from HID.

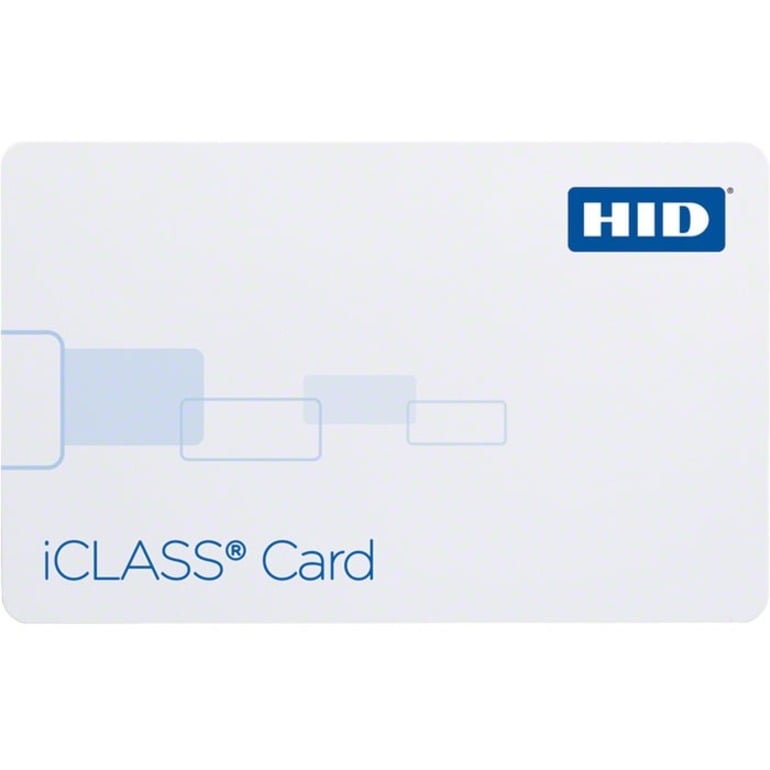

HID 2004PGGMN Access Control Cards Overview

HID's iCLASS® 13.56 MHz read/write contactless smart card technology can be used for diverse applications such as access control, biometrics, cashless vending, public transportation, airline ticketing and customer loyalty programs. Multiple, securely separated files enable numerous applications and support future growth.

The iCLASS Card offers iCLASS 13.56 MHz contactless read/write smart card technology along the ability to add a magnetic stripe, barcode, and anti-counterfeiting features including custom artwork or a photo identification directly on the credential. Your iCLASS Card can now be utilized for such diverse applications including access control, network log-on security, automotive vehicle identification, cashless vending, time and attendance, and biometric verification. Multiple securely separated files enable numerous applications and can support future capabilities. The iCLASS Card meets strict ISO thickness standards for use with direct image and thermal transfer printers.

Product Information
Operating Frequency:
13.56 MHz
Application/Usage:
  • Cashless Vending
  • Biometric Verification
  • Public Transport
  • Loyalty Programs
  • Access Control
Physical Characteristics
Product Color:
Glossy White
Product Material:
Polyvinyl Chloride (PVC)
Height:
2.1"
Width:
3.4"
Depth:
0"
Weight (Approximate):
0.20 oz
Miscellaneous
Additional Information:
  • Front/Back Gloss
  • Matching Number
  • NO SLOT PUNCH
  • Operating Frequency: 13.56 MHz
  • Multi-application Memory: 32k bit (4k Byte) 16k/16 + 16k/1
  • Write Endurance: Min. 100,000 cycles
  • Data Retention: 10 years
  • Transaction Time: <100 ms typical
  • Memory Type: EEPROM, read/write
  • Baud Rate:
    • 14443 B2 mode - 212 kbps
    • 15693 mode - 26 kbps
  • RF Interface:
  • As suggested by ISO/IEC
    • 15693 read/write
    • 14443B mode - 106 kbps
  • Typical Maximum Read Range:*
    • R10 2.0-3.0" (5.0-7.6cm)
    • R30/RW300 2.0-3.5" (5.0-8.9cm)
    • R40/RW400 2.5-4.5" (6.3-11.4cm)
    • RK40/RWK400 3.0-4.0" (7.6-10.1 cm)

*Dependent upon installation conditions

Item Numbers
UNSPSC: 32101617
