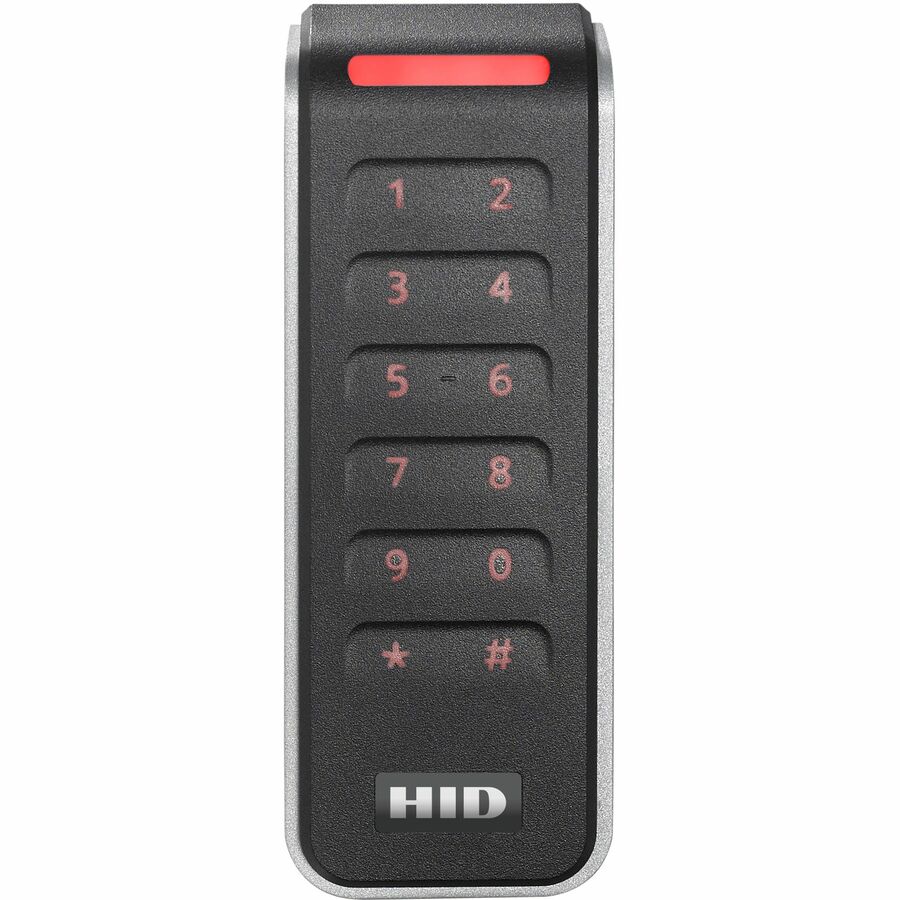

HID Signo Reader 20k Access Control Reader Model Overview
The HID Signo™ 20K adds an integrated keypad to the slim Signo form factor for multi-factor options (card/phone + PIN). Like the 20, it’s mobile-ready out of the box (Bluetooth and NFC with Apple ECP), supports a wide array of high- and low-frequency credentials, and connects cleanly to modern panels via OSDP. Built for easy deployment and remote configuration, the 20K is a versatile choice where added PIN entry is required.
Key Features:
Mobile-ready + keypad: Apple Wallet via ECP, with a 2×6 integrated keypad for PIN.
Operating Temperature: -31°F to +150°F (-35°C to +66°C)
Environmental Rating: UL294 indoor/outdoor, IP65
Dimensions (W x L x D): 1.78 in x 4.79 in x 0.85 in (45 x 121.5 x 21.5 mm)
Weight: 3.17–3.88 oz (terminal vs pigtail)
Certifications: UL294/cUL, FCC, IC, CE, RCM, SRRC, KCC, NCC, iDA, RoHS, MIC, Bluetooth SIG
Warranty: Limited Lifetime
HID 20KNKS-02-000000 Access Control Reader Overview
HID Signo. The Signature Line of Readers from HID Global
Featuring a sleek new design, HID Signo™ Readers are highly versatile, reliably secure and provide a smarter, more connected access control experience.
Highly Versatile - HID Signo Readers support the widest range of credential technologies, including HID Mobile Access®. Also includes Apple's Enhanced Contactless Polling (ECP) to support credentials in Apple Wallet.
Unparalleled Performance - Offers ultra-secure storage of cryptographic keys on certified secure element hardware, plus a new surface detection feature that allows the reader to automatically recalibrate and optimize read range performance.
Connected to the Future - All readers include out-of-the-box support for Open Supervised Device Protocol (OSDP) for secure bidirectional communication and an easy migration from Wiegand. Each is also ready for mobile access. HID Signo Readers can also be connected and managed using a smartphone.
Energy Saving - HID Signo's Intelligent Power Mode feature reduces energy consumption by up to 43% when the reader is at rest.
Protection Against Brute Force Attacks - HID Signo™ Readers include velocity checking, a patented feature to protect against brute force rapid electronic attacks.
Reliable in Adverse Conditions - IP65 outdoor rating
Visually Impaired Mode - HID Signo™ Keypad Readers have a built-in visually impaired mode that can be activated by persons in need.
The HID 20KNKS-02-000000 Access Control Reader is also known as
20KNKS02000000
