Hawking HAWNR3 Data Networking

Part Number: HAWNR3
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Broadband Transmission Technology
Ethernet
Wireless LAN Standard
IEEE 802.11n
ISM Band
Yes
UNII Band
No

Product Description:

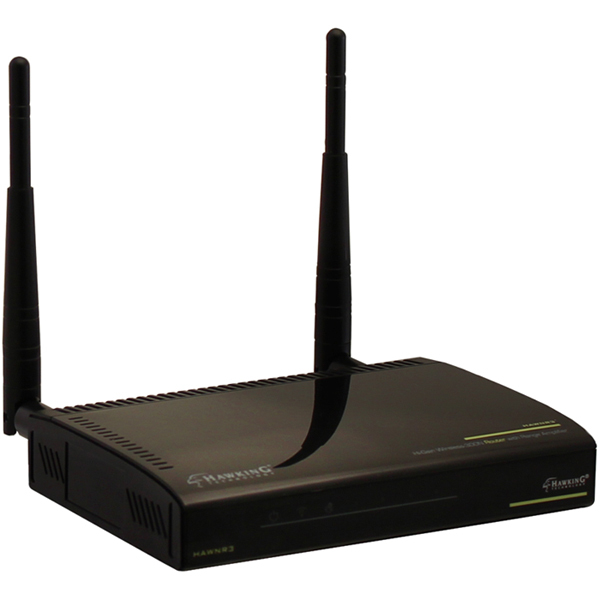

  Hawking Hi-Gain HAWNR3 IEEE 802.11n Wireless Router - 2.48 GHz ISM Band - 2 x Antenna - 37.50 MB/s Wireless Speed - 4 x Network Port - 1 x Broadband Port - Fast Ethernet - Desktop
Explore all Hawking Parts Accessories
Add to Quote
Hawking HAWNR3 Data Networking
Hawking HAWNR3 Data Networking
Hawking HAWNR3 Data Networking
Hawking HAWNR3 Data Networking
Hawking HAWNR3 Data Networking Hawking HAWNR3 Data Networking Hawking HAWNR3 Data Networking Hawking HAWNR3 Data Networking

Hawking Parts Accessory Model Overview

Products and parts from Hawking.
Hawking HAWNR3 Data Networking Overview

Go online and instantly share your internet access between computers in your home or office! Using the state-of-the-art wireless technology, Hawking's HAWNR3 Hi -Gain Wireless-300N Router with Range Amplifier delivers a solid networking experience for home and office users. With up to 6X the transfer speed and up to 250% the distance of a standard Wireless-G network, the HAWNR3 Router makes downloading multimedia files or data more enjoyable. Along with wireless connectivity, the HAWNR3 has 4 wired 10/100Mbps Ethernet ports for connecting your computers that do not have wireless access. It also offers the latest in wireless security, ensuring that your files and network are safe from outside intruders. Installation of the HAWNR3 is simple and straight forward. Just open your web browser and log into the secure setup page to setup the router in minutes.

Wireless Specifications
Broadband Transmission Technology:
Ethernet
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
No
ISM Minimum Frequency:
2.40 GHz
ISM Maximum Frequency:
2.48 GHz
Total Number of Antennas:
2
Antenna Gain:
3 dBi
Antenna Type:
Omnidirectional Antenna
Total Wireless Transmission Speed:
37.50 MB/s
Wireless Security:
  • 64/128-bit WEP
  • WPA
  • WPA2
Interfaces/Ports
Ethernet Port:
Yes
Fast Ethernet Port:
Yes
Gigabit Ethernet Port:
No
Number of Network (RJ-45) Ports:
4
Network (RJ-11):
No
VGA:
No
Serial:
No
USB:
No
Powerline:
No
PoE (RJ-45) Port:
No
Management Port:
No
Number of Broadband (RJ-45) Ports:
1
Network & Communication
Ethernet Technology:
Fast Ethernet
Management & Protocols
Management:
  • DHCP
  • Web Based Management
Security Features:

MAC Address Filtering

Power Description
Input Voltage:
12 V DC
Power Source:
AC Adapter
Physical Characteristics
Form Factor:
Desktop
Height:
1.1"
Width:
6"
Depth:
4.1"
Weight (Approximate):
6.72 oz
Miscellaneous
Package Contents:
  • Hi-Gain HAWNR3 Wireless Router
  • 2 x 3dBi Hi-Gain Omni Directional Antennas
  • 1 x Mac/PC CD
  • 1 x RJ-45 Ethernet Cable
  • 1 x Power Adapter
  • Easy to Follow Quick Installation Guide
System Requirements:

Web Browsers:

  • Internet Explorer 4.0 or Above
  • Netscape Navigator 4.7 or Above
  • Opera
  • Firefox
  • Safari
Certifications & Standards:
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • IEEE 802.3
  • IEEE 802.3u
  • FCC
  • CE
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0021112445220, 0151903068687, 0603992507047, 0818214490360, 0818240309063, 0818242449651, 0898029709529
UPC: 021112445220, 151903068687, 603992507047, 818214490360, 818240309063, 818242449651, 898029709529
EAN: 0021112445220, 0151903068687, 0603992507047, 0818214490360, 0818240309063, 0818242449651, 0898029709529
UNSPSC: 43222609
