Havis C-MM-304 Spare Parts

Havis Mount - Havis Mounting Adapter for Docking Station - 7.50 lb Load Capacity - 75 x 75 VESA Standard

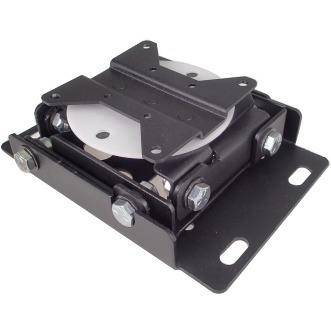

Monitor base adapter tilt/swivel assembly
For lightweight tablet docking stations with VESA 75 mounting hole pattern
Device mount end includes VESA 75 and 1.20" x 1.50" (30mm x 38mm) "amps" hole pattern
Device mount end rotates 90° degrees
Compact design is 1.75" inches high in closed position and extends to 6.5" when completely open
5" wide x 5.5" long (in closed position)
Maximum weight rating = 7.5 lbs. (for items mounted to motion device)
Mounts directly to Havis C-DMM-100 Series monitor mounts only (ordered separately)
Installer must remove the standard center swivel and replace it with the C-MM-304

Need a different version? See all Havis Mount Accessories

Chat Now for Qty Discount

Add to Quote

$84.09

Overview

Havis Mount Accessory Model Overview

Havis vehicle specific systems provide the strongest mounting solutions for valuable computing and radio equipment. Havis consoles are ergonomically designed to make your equipment easy to see, reach and operate while creating additional space and comfort.

Havis C-MM-304 Spare Parts Overview

Unique universal retrofit motion device provides generous tilt in four (4) directions plus 90 Degree rotation for the standard DMM motion device, for increased travel and motion

Detailed Specs

Product Information

Device Supported:

Docking Station

Maximum Load Capacity:

7.50 lb

Physical Characteristics

Mounting Pattern:

75 x 75

Depth:

6.5"

Warranty

Limited Warranty:

Lifetime

Item Numbers

GTIN: 0735899039106, 4963263188228, 4963273157672, 4973153188863

UPC: 735899039106

EAN: 0735899039106, 4963263188228, 4963273157672, 4973153188863

UNSPSC: 31162307
