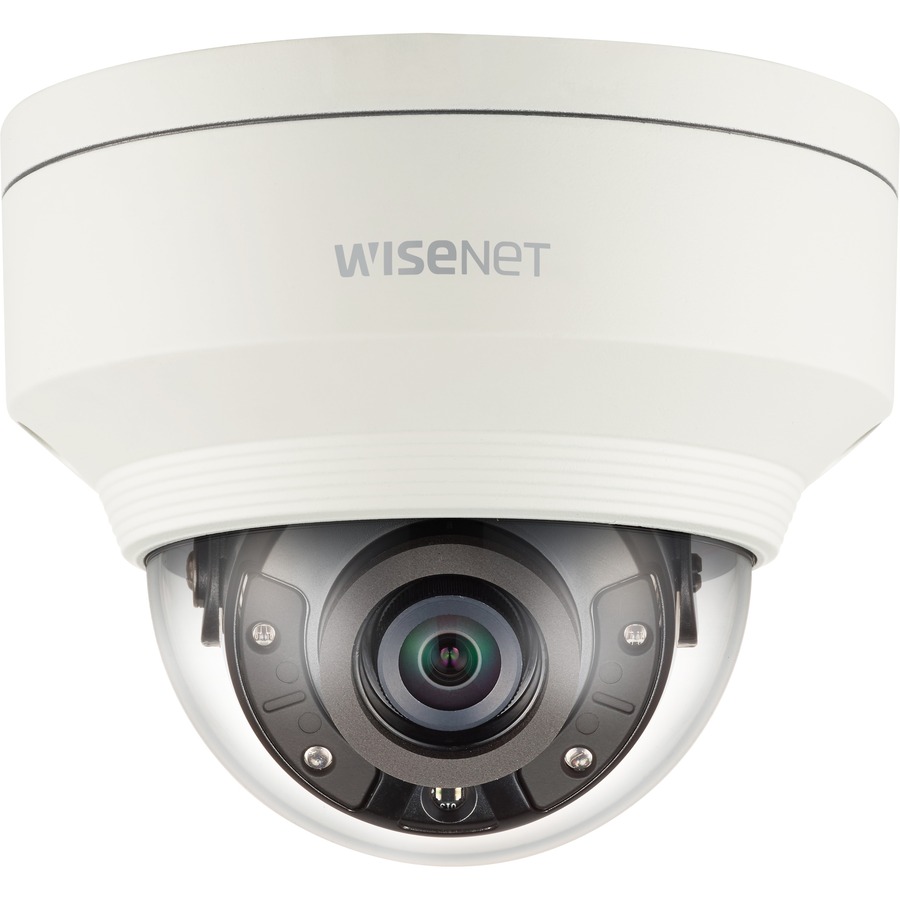

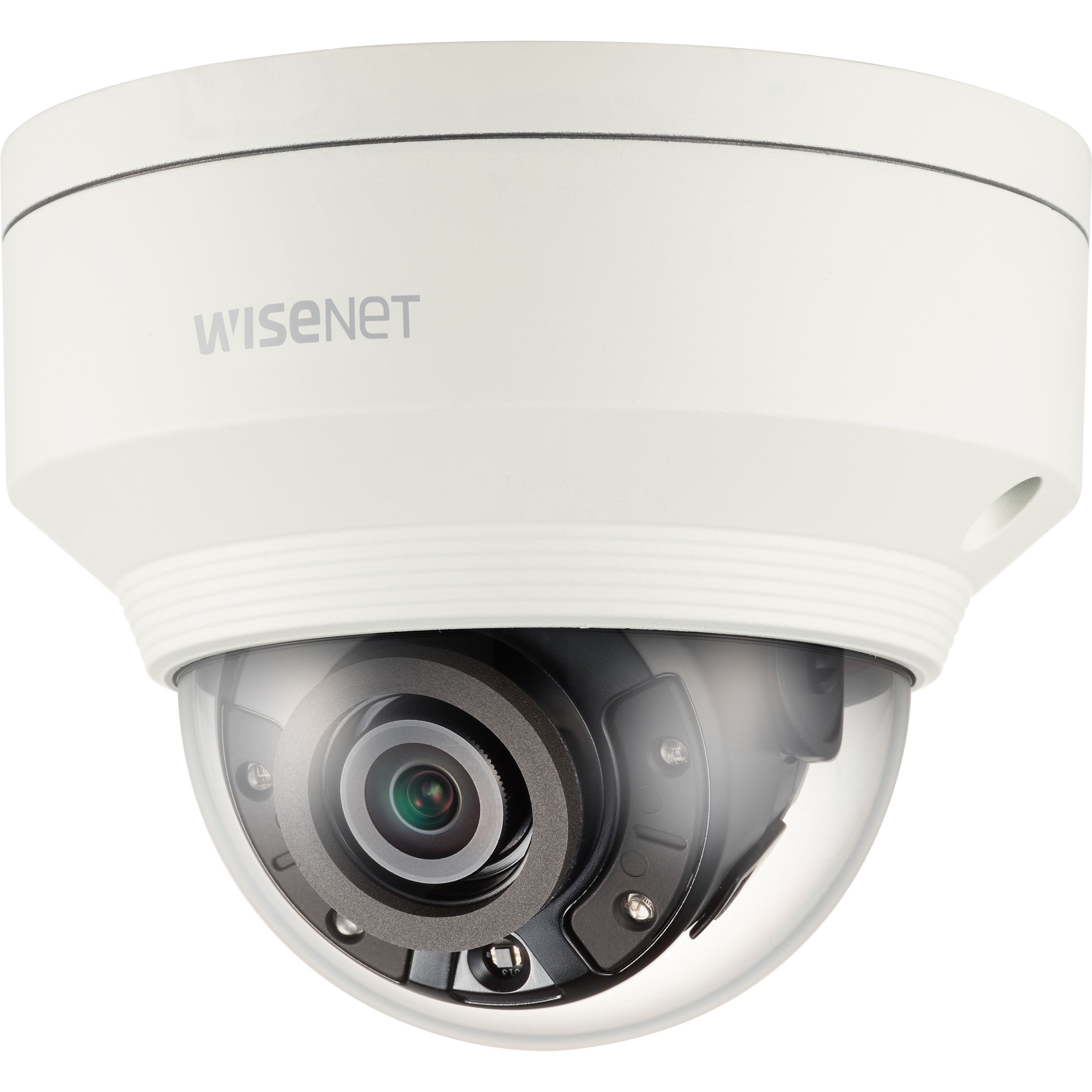

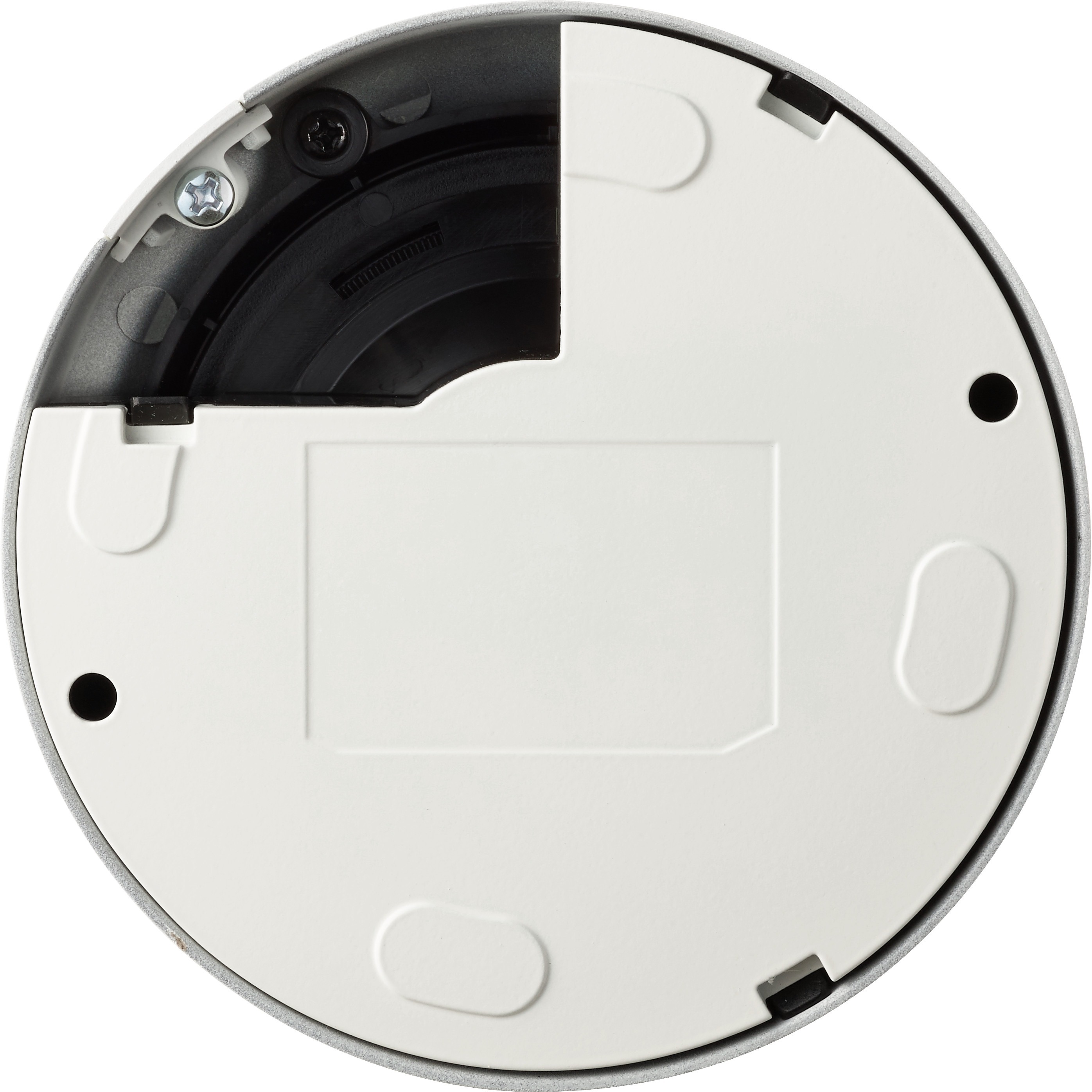

Hanwha Vision XNV-8020R Security Camera

Part Number: XNV-8020R
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$865.38
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
HD Recording
Yes
Night Vision
Yes
Night Vision Distance
98.43 ft
Night Vision Type
Infrared

Product Description:

  Security Cameras, Hanwha Techwin America XNV-8020R, Wisenet, 5 Megapixel Outdoor Network Camera, Color, Dome, 98.43 ft Infrared Night Vision, MJPEG, H.264, H.265, MPEG-4 AVC, 2560 x 1920 Fixed Lens, CMOS, Wall Mount, Parapet Mount, Pole Mount, Corner Mount, IP67
Explore all Hanwha Vision Parts Security Cameras
Add to Quote
Hanwha Vision XNV-8020R Security Camera
Hanwha Vision XNV-8020R Security Camera
Hanwha Vision XNV-8020R Security Camera
Hanwha Vision XNV-8020R Security Camera Hanwha Vision XNV-8020R Security Camera Hanwha Vision XNV-8020R Security Camera

Hanwha Vision Parts Security Camera Model Overview

Parts and products from Hanwha Vision.
Hanwha Vision XNV-8020R Security Camera Overview

WiseNet X powered by WiseNet 5 network IR outdoor vandal dome camera, 5MP @30fps WDR off/on, 3.7mm fixed focal lens (97.5°), H.265/H.264/MJPEG, WiseStream II compression technology, 120dB WDR, USB port for easy installation, advanced video analytics and sound classification, High powered IR LEDs range of 98', True D/N, dual SD card, hallway view, HLC, defog detection with simple focus, DIS , 12VDC/24VAC/PoE, IP67, IK10, Nema 4X

Technical Information
HD Recording:
Yes
Night Vision:
Yes
Night Vision Distance:
98.43 ft
Night Vision Type:
Infrared
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
Color
Field of View:
H : 97.5 ? / V : 71.9 ? / D : 126.2
Effective Camera Resolution:
5 Megapixel
Video
Video Formats:
  • MJPEG
  • H.264
  • H.265
  • MPEG-4 AVC
Maximum Video Resolution:
2560 x 1920
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
3.70 mm
Lens Included:
Yes
Maximum Aperture:
f/1.6
Exposure
Shortest Shutter Speed:
1/12000 Second
Longest Shutter Speed:
2 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
12 V DC
Power Source Type:
  • DC
  • PoE
Physical Characteristics
Mount Type:
  • Wall Mount
  • Parapet Mount
  • Pole Mount
  • Corner Mount
Form Factor:
Dome
Durability:
Vandal Resistant
Product Color:
Ivory
Height:
3.8"
Width:
4.7"
Diameter:
4.7"
Weight (Approximate):
1.36 lb
Miscellaneous
Indoor/Outdoor:
Outdoor
Impact Protection Rating:
IK10
Ingress Protection Rating:
  • IP66
  • IP67
NDAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0641753415378, 8801089100757, 8801089125729
UPC: 641753415378
EAN: 0641753415378, 8801089100757, 8801089125729
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Hanwha Vision XNV-8020R Security Camera is also known as SMG-XNV8020R
