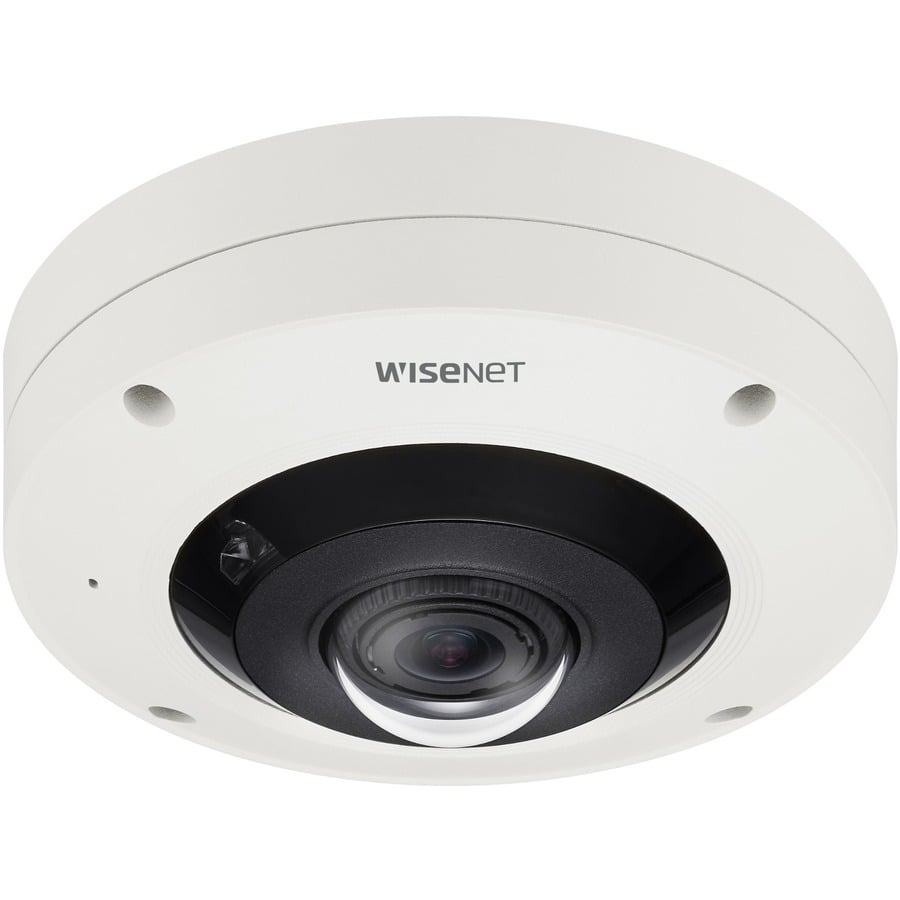

Hanwha Vision XNF-9010RV Security Camera

Part Number: XNF-9010RV
Model: Parts
to get Free Ground Shipping on your order.
Add to My Shopping List Add to Compare
$1,153.85
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
HD Recording
Yes
Night Vision
Yes
Night Vision Distance
32.81 ft
Night Vision Type
Infrared

Product Description:

  Security Cameras, Hanwha Techwin America XNF-9010RV, Wisenet, 12 Megapixel Outdoor Network Camera, Color, Fisheye, 32.81 ft Infrared Night Vision, H.264, H.265, MJPEG, 3008 x 3008, 1.08 mm Fixed Lens, CMOS, Wall Mount, IK10, IP66
Explore all Hanwha Vision Parts Security Cameras
Add to Quote
Hanwha Vision XNF-9010RV Security Camera
Hanwha Vision XNF-9010RV Security Camera

Hanwha Vision Parts Security Camera Model Overview

Parts and products from Hanwha Vision.
Hanwha Vision XNF-9010RV Security Camera Overview
12MP sensor 360° monitoring
Offers both wall mounting and overhead mounting modes

Wisenet Fisheye camera adopted 12MP sensor offering clean and vivid images with 360° coverage. Users can choose between wall mounting mode and overhead mounting mode depending on the installation environment, and monitor areas in detail.

Enhanced resolution for the peripheral regions

Wisenet Fisheye camera adopted the Stereo Graphic Type lens offering enhanced resolution for the peripheral regions of the image when mounted overhead for the top-down view.

With the Wise IR, which optimizes amount of IR light in the central and the peripheral regions of images in accordance with the installation environment, the camera constantly creates steady images without smudging effect. Moreover, it supports 30fps WDR, creating clear images without motion artifact.


Technical Information
HD Recording:
Yes
Night Vision:
Yes
Night Vision Distance:
32.81 ft
Night Vision Type:
Infrared
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
Color
Field of View:
H: 187° / V: 187° / D: 187°
Effective Camera Resolution:
12 Megapixel
Video
Video Formats:
  • H.264
  • H.265
  • MJPEG
Maximum Video Resolution:
3008 x 3008
Maximum Frame Rate:
30 fps
Video Signal Format:
  • NTSC
  • PAL
Analog Video Signal Format:
CVBS
Lens
Lens Type:
Fixed
Maximum Focal Length:
1.08 mm
Lens Included:
Yes
Maximum Aperture:
f/2.2
Exposure
Shortest Shutter Speed:
1/12000 Second
Longest Shutter Speed:
1/5 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
12 V DC
Power Source Type:
  • DC
  • PoE
Physical Characteristics
Mount Type:
Wall Mount
Form Factor:
Fisheye
Product Color:
White
Diameter:
6.3"
Weight (Approximate):
2.43 lb
Environmental Conditions
Minimum Operating Temperature:
-40°F (-40°C)
Maximum Operating Temperature:
140°F (60°C)
Operating Humidity:
95%
Miscellaneous
Features:
  • Day/Night
  • Back Light Compensation (BLC)
  • Built-in HLC
  • Digital Noise Reduction
  • Motion Detection
  • Privacy Masking
Indoor/Outdoor:
Outdoor
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
NDAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 8801089193384
EAN: 8801089193384
UNSPSC: 46171610
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Hanwha Vision XNF-9010RV Security Camera is also known as HAN-XNF9010RV
