Recording Formats:
Full HD
HD Recording:
Yes

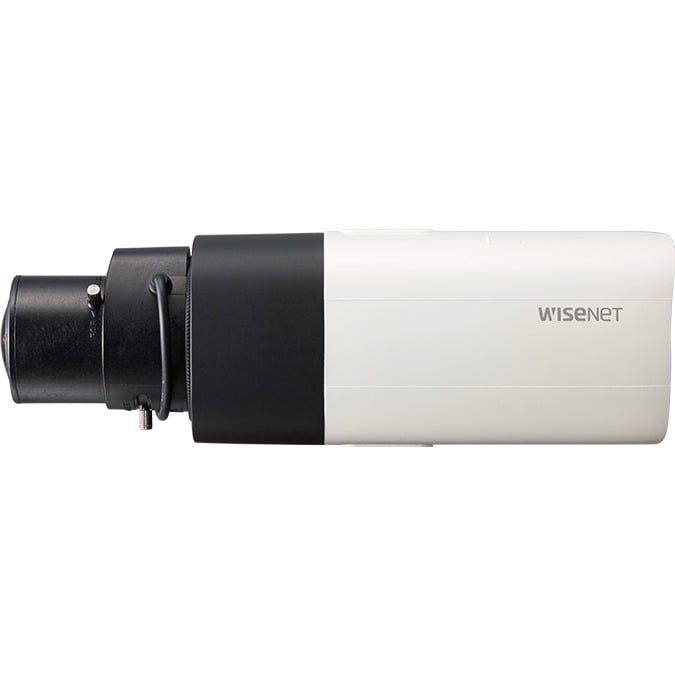

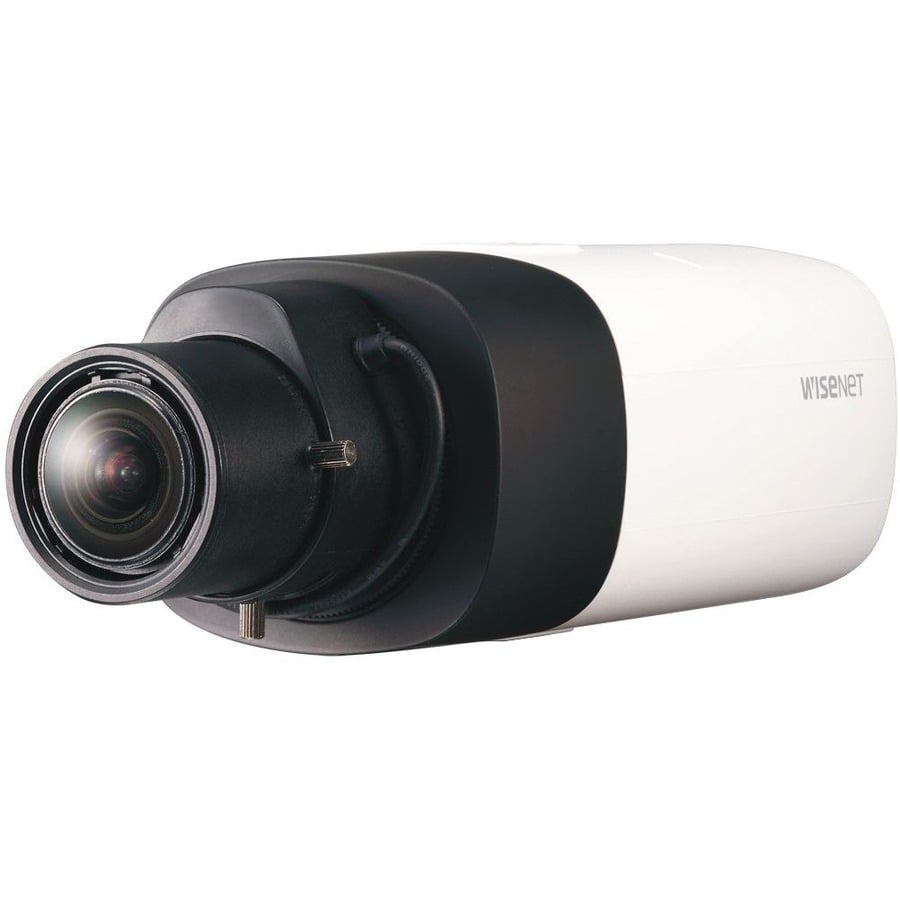

Hanwha Vision XNB-6005 Security Camera
Part Number:
XNB-6005
Model:
Parts
Hanwha Vision Parts Security Camera Model Overview
Parts and products from Hanwha Vision.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
Color
Effective Camera Resolution:
2 Megapixel
Video
Video Formats:
- H.265
- H.264 (MPEG-4 Part 10/AVC)
- H.264
- H.264M
- H.264B
- H.264H
- MJPEG
- H.265M
- H.265B
- H.265H
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
60 fps
Analog Video Signal Format:
CVBS
Lens
Lens Included:
No
Lens Mount Type:
C/CS-mount
Exposure
Shortest Shutter Speed:
1/12000 Second
Longest Shutter Speed:
2 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
- 12 V DC
- 24 V AC
Physical Characteristics
Mount Type:
Bracket Mount
Form Factor:
Box
Color Family:
Dual Color
Product Color:
- Black
- Ivory
Height:
2.6"
Width:
2.9"
Depth:
5.8"
Weight (Approximate):
14.82 oz
Environmental Conditions
Minimum Operating Temperature:
14°F (-10°C)
Maximum Operating Temperature:
131°F (55°C)
Maximum Operating Humidity:
90%
Miscellaneous
Features:
- Day/Night
- Back Light Compensation (BLC)
- Highlight Compensation (HLC)
- Wide Dynamic Range
- Digital Noise Reduction
- 3D Noise Filtering
- Digital Image Stabilization
- Automatic Defog
- Motion Detection
- Privacy Masking
- Auto Gain Control
- Automatic White Balance
- PTZ
- Audio Detection
- Face Detection
- Auto Tracking
- Alarm Triggering
- Microphone In
- Audio Compression
- SD Card Local Storage
NDAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
0641753511490, 8801089103000, 8801089125156
UPC:
641753511490
EAN:
0641753511490, 8801089103000, 8801089125156
UNSPSC:
46171610
The Hanwha Vision XNB-6005 Security Camera is also known as
SMG-XNB6005
