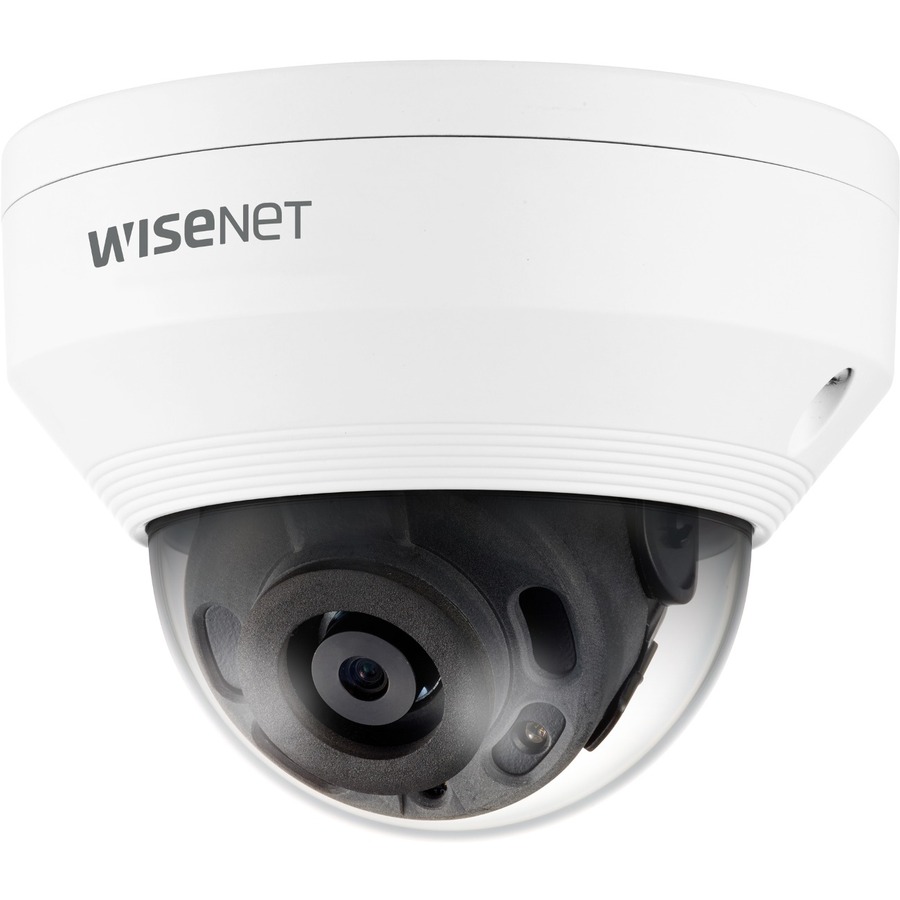

Hanwha Vision QNV-6022R1 Security Camera
Hanwha Vision Parts Security Camera Model Overview
Parts and products from Hanwha Vision.
Technical Information
Recording Formats:
Full HD
Night Vision Distance:
82.02 ft
Night Vision Type:
Infrared
Display & Graphics
Field of View:
H: 87.6 / V: 46.4° / D: 104.5°
Effective Camera Resolution:
2 Megapixel
Video
Video Formats:
- H.265
- H.264
- H.265M
- H.264M
- H.265H
- H.264H
- MJPEG
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
30 fps
Analog Video Signal Format:
CVBS
Lens
Maximum Focal Length:
4 mm
Exposure
Shortest Shutter Speed:
1/12000 Second
Longest Shutter Speed:
1/5 Second
Network & Communication
Connectivity Technology:
Wired
Storage
Storage Type:
Memory Card
Interfaces/Ports
Power Description
Physical Characteristics
Mount Type:
- Corner Mount
- Pole Mount
- Wall Mount
- Pendant Mount
- Hanging Mount
- Backbox Mount
- Box Mount
- Gooseneck
- Roof Mount
- Parapet Mount
- Ceiling Mount
Durability:
Vandal Resistant
Weight (Approximate):
1.12 lb
Environmental Conditions
Minimum Operating Temperature:
-22°F (-30°C)
Maximum Operating Temperature:
131°F (55°C)
Maximum Operating Humidity:
90%
Miscellaneous
Features:
- Motion Detection
- Tamper Detection
- SD Card Local Storage
- Built-in IR LED
- Day/Night
- Back Light Compensation (BLC)
- Wide Dynamic Range
- Digital Noise Reduction
- Privacy Masking
- Auto Gain Control
- Automatic White Balance
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
Warranty
Item Numbers
GTIN:
8801089209504
EAN:
8801089209504
UNSPSC:
46171610
The Hanwha Vision QNV-6022R1 Security Camera is also known as
HAN-QNV6022R1
