HD Recording:
Yes
Hanwha Vision QND-8011 Security Camera
Part Number:
QND-8011
Model:
Parts
Hanwha Vision Parts Security Camera Model Overview
Parts and products from Hanwha Vision.

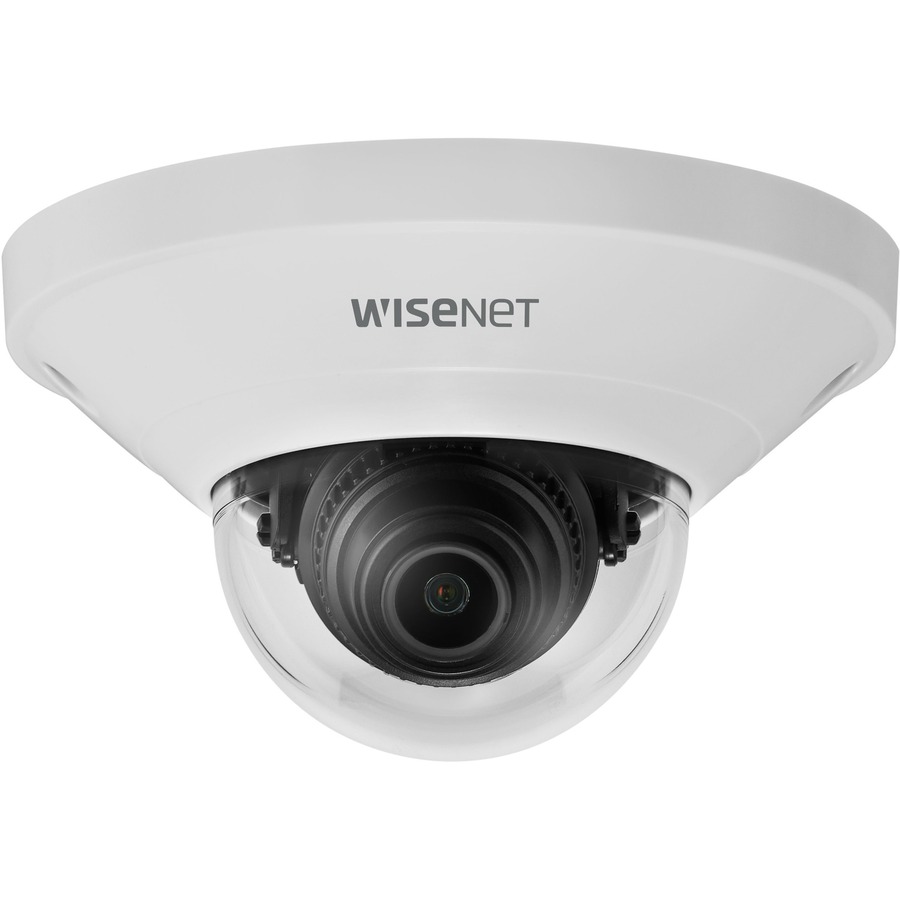

Hanwha Vision QND-8011 Security Camera Overview
The QND-8011 from Hanwha's Q mini Series affordable network camera line is a 5 Megapixel Super-Compact Indoor Dome network camera featuring WiseStream II, Hanwha's compression technology, triple codec H.265/H.264/MJPEG, 2.8mm lens, PoE, 120dB True WDR, IP42, IK08, defocus & tampering detection, Hallway View, and SD card slot (SD/SDHC/SDXC up to 128GB). The super-compact form factor perfectly blends into any environment, making it ideal for retail. The Wisenet Q mini series also features people counting business intelligence as well as real-time HDMI video output for public view monitor display.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
Color
Field of View:
H: 104.4°/ V: 76.7°/ D: 136.1°
Effective Camera Resolution:
5 Megapixel
Video
Video Formats:
- MJPEG
- H.264
- H.265
Maximum Video Resolution:
2592 x 1944
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
2.80 mm
Lens Included:
Yes
Maximum Aperture:
f/2
Exposure
Shortest Shutter Speed:
1/12000 Second
Longest Shutter Speed:
1/5 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
HDMI:
Yes
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
- Wall Mount
- Gang Box Mount
Form Factor:
Dome
Product Color:
White
Height:
2.2"
Diameter:
3.9"
Weight (Approximate):
5.82 oz
Environmental Conditions
Minimum Operating Temperature:
14°F (-10°C)
Maximum Operating Temperature:
104°F (40°C)
Operating Humidity:
90%
Miscellaneous
Features:
- SD Card Local Storage
- Motion Detection
- Alarm Triggering
- Gain Control
- Automatic White Balance
- Digital Noise Reduction
- Wide Dynamic Range
- Back Light Compensation (BLC)
- Day/Night
Indoor/Outdoor:
Indoor
NDAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
8801089162540
EAN:
8801089162540
UNSPSC:
46171610
Get help from a Barcoding Expert!
The Hanwha Vision QND-8011 Security Camera is also known as
SMG-QND8011
