Recording Formats:
Full HD
HD Recording:
Yes

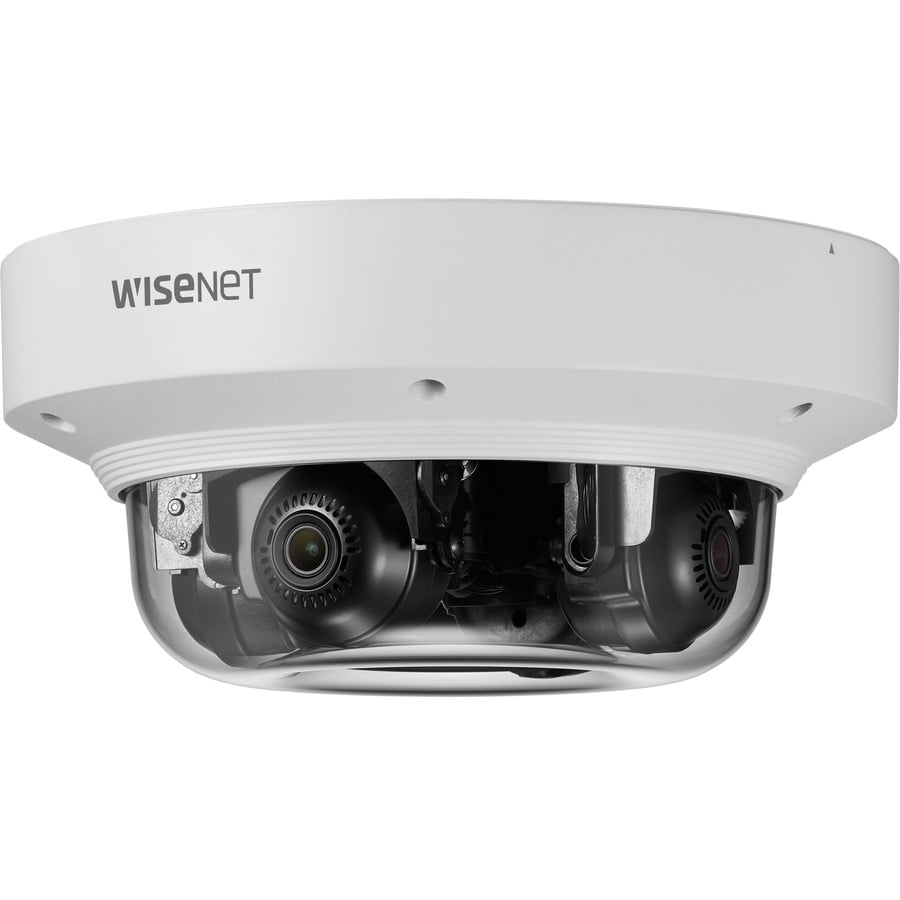

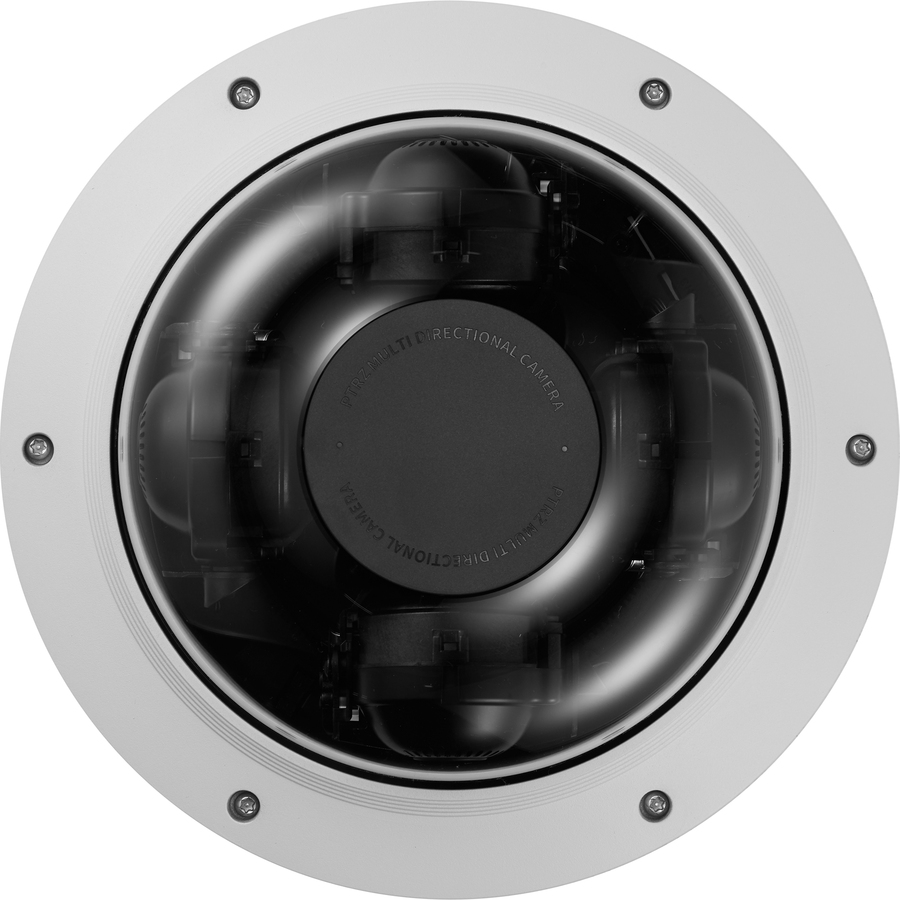

Hanwha Vision PNM-9084QZ1 Security Camera
Part Number:
PNM-9084QZ1
Model:
Parts
Hanwha Vision Parts Security Camera Model Overview
Parts and products from Hanwha Vision.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
Color
Field of View:
H: 107(Wide)~56.3(Tele) / V: 57(Wide)~31.5(Tele) / D: 126(Wide)~64.3(Tele)
Effective Camera Resolution:
8 Megapixel
Number of Sensors:
4
Video
Video Formats:
- H.265
- H.264
- MJPEG
- H.265M
- H.265B
- H.265H
- H.264M
- H.264B
- H.264H
Maximum Video Resolution:
1920 x 1080
Maximum Frame Rate:
60 fps
Lens
Lens Type:
Varifocal
Minimum Focal Length:
3 mm
Maximum Focal Length:
6 mm
Lens Included:
Yes
Minimum Aperture:
f/3.1
Maximum Aperture:
f/2.2
Optical Zoom:
2x
Exposure
Shortest Shutter Speed:
1/12000 Second
Longest Shutter Speed:
2 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Power Source Type:
DC
Physical Characteristics
Mount Type:
- Hanging Mount
- In-ceiling
Form Factor:
Dome
Product Color:
White
Diameter:
9.9"
Weight (Approximate):
6.61 lb
Environmental Conditions
Minimum Operating Temperature:
-40°F (-40°C)
Maximum Operating Temperature:
131°F (55°C)
Operating Humidity:
90%
Miscellaneous
Features:
- SD Card Local Storage
- Day/Night
- Automatic White Balance
- Highlight Compensation (HLC)
- Back Light Compensation (BLC)
- Digital Wide Dynamic Range (D-WDR)
- Wide Dynamic Range
- Gain Control
- Password Protection
- Alarm Triggering
- Digital Image Stabilization
- Defog
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
TAA Compliant:
Yes
Item Numbers
GTIN:
8801089216748, 8801089216786
EAN:
8801089216748, 8801089216786
UNSPSC:
46171610
Get help from a Barcoding Expert!
The Hanwha Vision PNM-9084QZ1 Security Camera is also known as
HAN-PNM9084QZ1
