HD Recording:
Yes

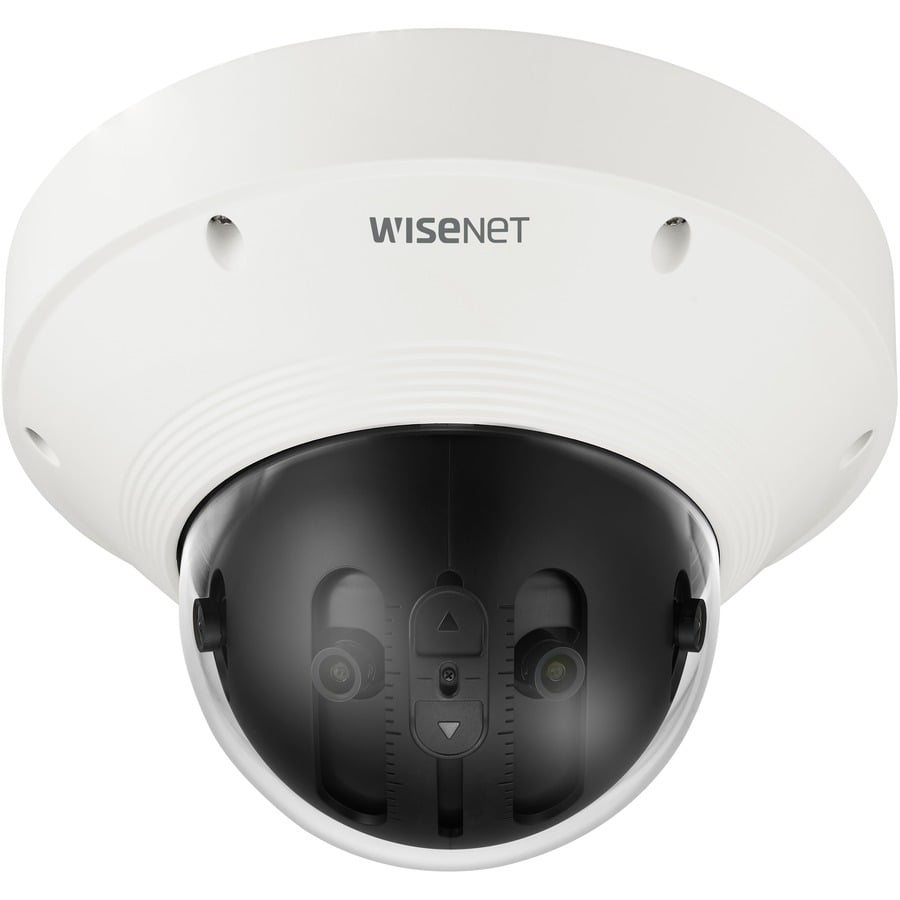

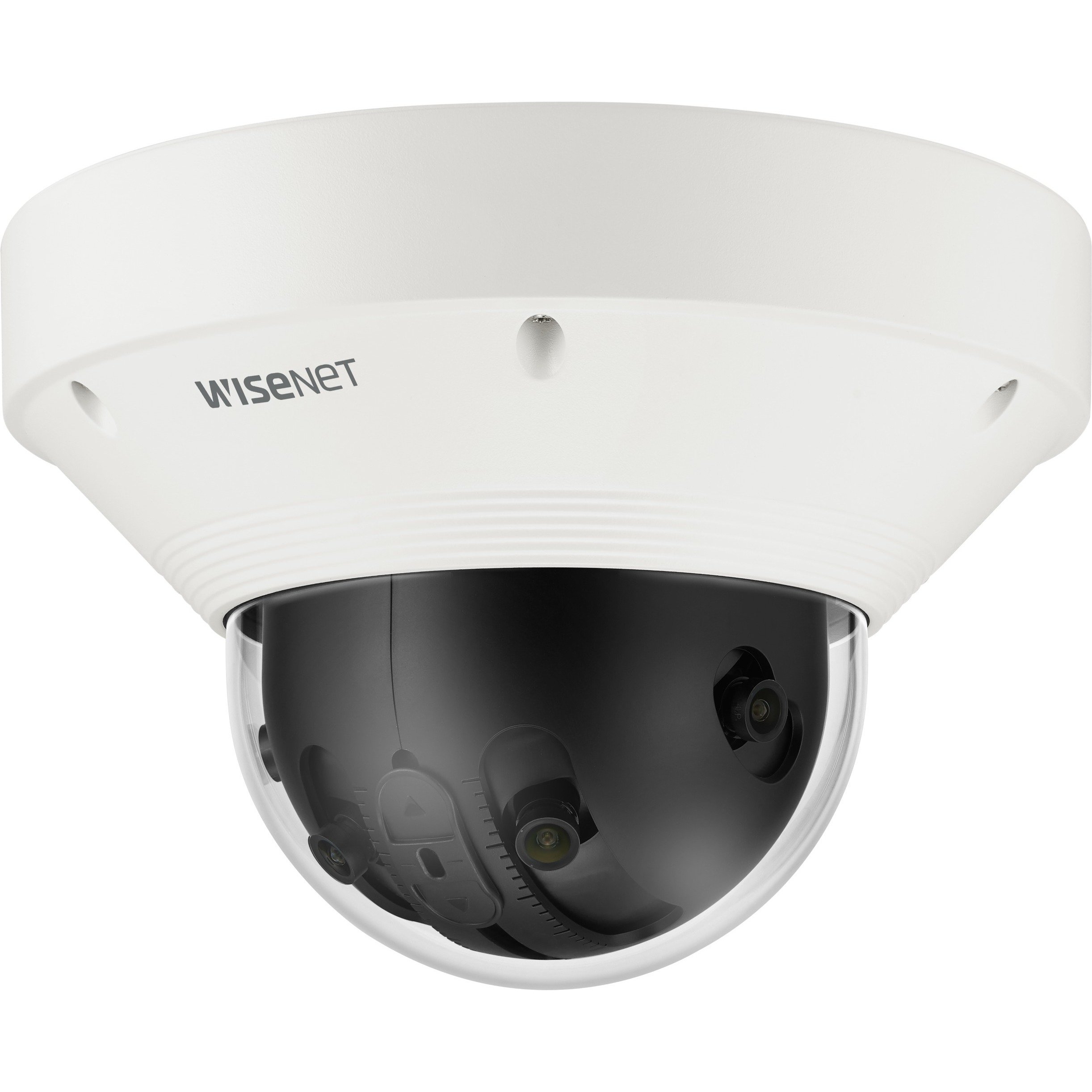

Hanwha Vision PNM-9022V Security Camera
Part Number:
PNM-9022V
Model:
Parts
Hanwha Vision Parts Security Camera Model Overview
Parts and products from Hanwha Vision.
Technical Information
Display & Graphics
Image Sensor Type:
CMOS
Color Supported:
Color
Field of View:
H: 209°, V: 83.3°
Effective Camera Resolution:
2 Megapixel
Number of Sensors:
4
Video
Video Formats:
- H.265
- H.264
- MJPEG
Maximum Video Resolution:
4608 x 1800
Maximum Frame Rate:
30 fps
Lens
Lens Type:
Fixed
Maximum Focal Length:
2.80 mm
Lens Included:
Yes
Maximum Aperture:
f/1.6
Exposure
Shortest Shutter Speed:
1/12000 Second
Longest Shutter Speed:
2 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Power Description
Input Voltage:
12 V DC
Power Source Type:
DC
Physical Characteristics
Mount Type:
- Box Mount
- Pipe Mount
- Wall Mount
Form Factor:
Dome
Durability:
Vandal Resistant
Color Family:
White
Product Color:
White
Diameter:
10"
Weight (Approximate):
7.05 lb
Environmental Conditions
Minimum Operating Temperature:
-40°F (-40°C)
Maximum Operating Temperature:
140°F (60°C)
Maximum Operating Humidity:
95%
Miscellaneous
Features:
- PTZ
- Day/Night
- Back Light Compensation (BLC)
- Highlight Compensation (HLC)
- Digital Noise Reduction
- Defog
- Motion Detection
- Privacy Masking
- Auto Gain Control
- Audio Detection
- Alarm Triggering
- Audio Compression
- HTTPS Encryption
- SD Card Local Storage
Indoor/Outdoor:
Outdoor
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
NDAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
8801089195869
EAN:
8801089195869
UNSPSC:
46171610
Get help from a Barcoding Expert!
The Hanwha Vision PNM-9022V Security Camera is also known as
HAN-PNM9022V
