HD Recording:
Yes

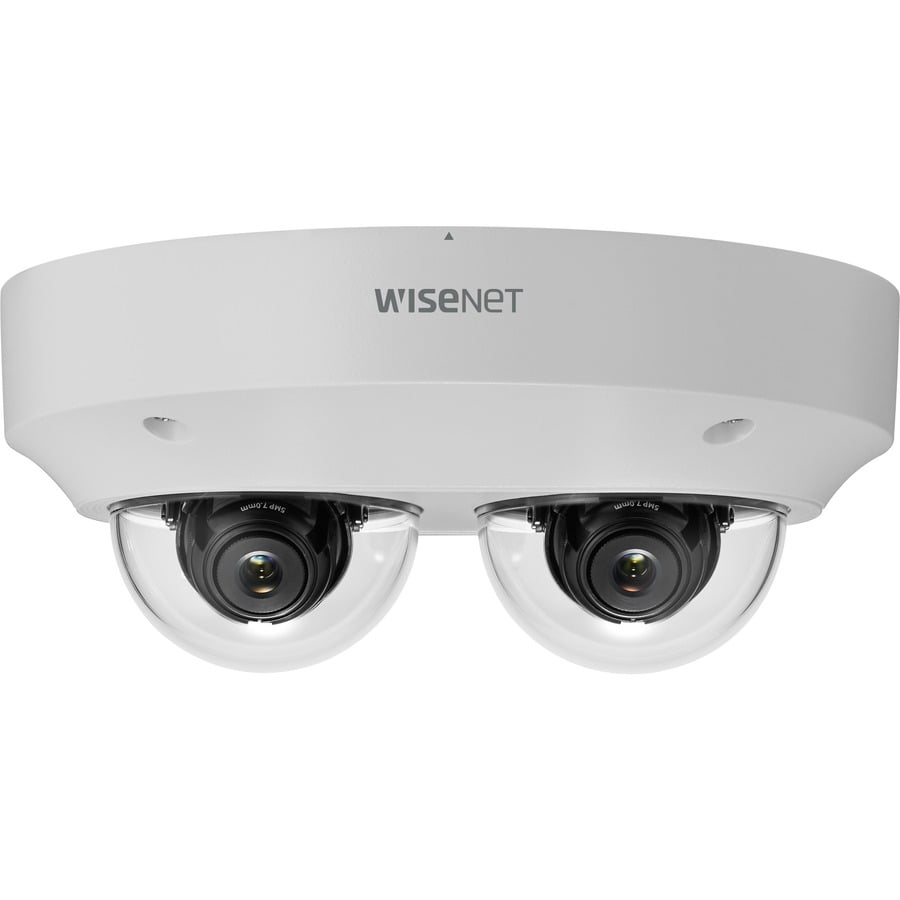

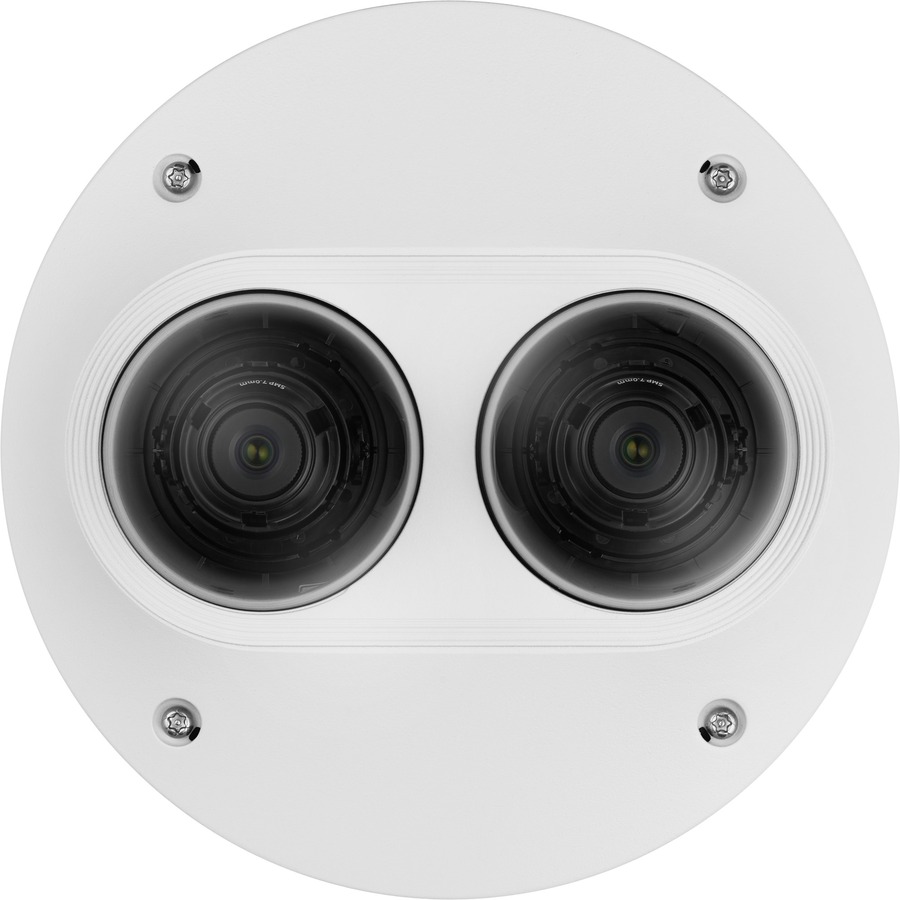

Hanwha Vision PNM-9000VD Security Camera
Part Number:
PNM-9000VD
Model:
Parts
Hanwha Vision Parts Security Camera Model Overview
Parts and products from Hanwha Vision.
Technical Information
Display & Graphics
Color Supported:
Color
Effective Camera Resolution:
5 Megapixel
Number of Sensors:
2
Video
Video Formats:
- H.265
- H.264
- MJPEG
- H.264 (MP)
- H.264 BP
- H.264 HP
Maximum Video Resolution:
2560 x 1920
Maximum Frame Rate:
30 fps
Analog Video Signal Format:
CVBS
Lens
Lens Included:
No
Exposure
Shortest Shutter Speed:
1/12000 Second
Longest Shutter Speed:
2 Second
Network & Communication
Connectivity Technology:
Wired
Remote Management:
Yes
Storage
Storage Type:
Memory Card
Interfaces/Ports
Network (RJ-45):
Yes
Physical Characteristics
Mount Type:
- Wall Mount
- Pendant Mount
- Corner Mount
- Parapet Mount
- Pole Mount
- Hanging Mount
- Box Mount
- Gooseneck
Form Factor:
Dome
Product Color:
White
Diameter:
7.8"
Weight (Approximate):
2.76 lb
Environmental Conditions
Minimum Operating Temperature:
-40°F (-40°C)
Maximum Operating Temperature:
131°F (55°C)
Operating Humidity:
90%
Miscellaneous
Features:
- Built-in Card Reader
- Defog
- Day/Night
- Motion Detection
- Tampering Alarm
- Face Detection
- Digital Noise Reduction
- Privacy Masking
Impact Protection Rating:
IK10
Ingress Protection Rating:
IP66
NDAA Compliant:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN:
8801089154200
EAN:
8801089154200
UNSPSC:
46171610
Get help from a Barcoding Expert!
The Hanwha Vision PNM-9000VD Security Camera is also known as
SMG-PNM9000VD
