Hand Held 90030080 Mobile Computer


0.0

(No reviews)

Be the first to

Write a Review

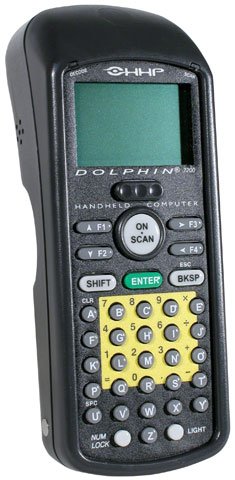

Hand Held Dolphin 7200 - 2D imager, 36 key alpha (shifted numeric), 2MB RAM & 16MB flash. Includes NiMH battery. Order cradle & cables separately. See accessories.
The Handheld Products Dolphin 7200 is an excellent choice for portable data collection.

The Dolphin 7200 is a rugged, pocketsize computer and barcode scanner with an open DOS architecture and up to 12 MB of memory. Ergonomically designed for both right and left-handed use, the Dolphin 7200 is available with a variety of integrated scanning options for exceptional performance on all major linear barcode symbologies. The Dolphin 7200's large, easy-to-read display is backlighted for easy reading in dark areas. Keyboard options for the Dolphin 7200 include a 36 key alphanumeric or a 20 key numeric that both have coated keys to prevent numbers from wearing off. Three integrated laser options also are available - standard range, long-range, or high-definition. The Dolphin 7200 terminal is part of a data collection system that includes peripherals designed for vehicle, desktop and hub operations.

Technical Information

  • Operating System: GS-DOS
  • Processor: ELAN SC310 20MHz
  • Scanner Type: Imager Long Range
  • Symbologies Supported:
    • Code 3 of 9
    • Interleaved 2 of 5
    • EAN
    • Codabar
    • Code 128
    • Code 93
    • UPC
    • Code 11
    • IATA 2 of 5
    • MSI
    • UPC-A
    • UPC EO
    • UPC EI
    • EANISAN13
    • EANISAB8
    • PDF 417
    • Micro PDF
    • MaxiCode
    • DataMatrix
    • Aztec
    • QR Code
    • Code 49
    • UCC RSS
    • Aztec Mesa
    • RSS-14
    • Coda Block
    • OCR-A
    • OCR-B
    • Postnet
    • Planet Code
    • BPO4 State
    • Canadian 4 State
    • Dutch Postal
    • Australian 4-State
    • Japanese Post

General Information

  • Manufacturer: Hand Held Products
  • Product Line: Dolphin
  • Product Name: Dolphin 7200 2D Mobile Computer

Physical Characteristics

  • Keyboard: 36 Key Alpha Shifted Numeric
  • Battery Capacity: 1500 mAh
  • Battery Type: NiMH
  • Weight: 13.8 oz - with Battery

Environmental Conditions

  • Environmental Sealing: IP64
  • Temperature:
    • -10°C (14°F) to 50°C (122°F) Operating
    • -20°C (-4°F) to 70°C (158°F) Storage
  • Humidity: 0 to 95% Non-condensing
  • Electrostatic Discharge (ESD): 15kV
  • Drop Spec: 5' To Concrete

Agency Approvals

  • Agency Approvals:
    • FCC class A
    • CE Mark
    • UL 94-VO

Memory

  • RAM Memory: 2MB
  • Flash Memory: 8MB

Warranty

  • Manufacturer Warranty: 2 Year(s)

Full specifications (PDF)

Full specifications (PDF)

Brand Hand Held
Model Dolphin 7200
Operating System DOS
RAM Memory 2 MB
Scanner Type Imager
Data Collection Type Batch
