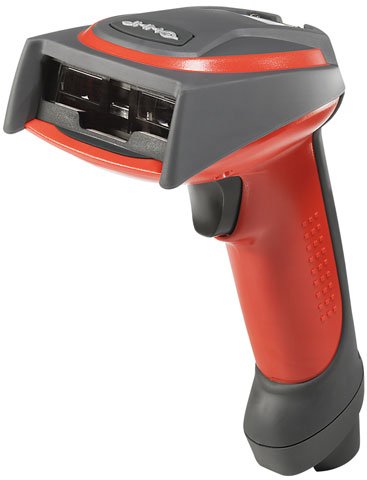

Hand Held 5800SR050-0G00 Barcode Scanner

Hand Held ImageTeam 5800 - Industrial linear imager with Keyboard wedge, USB & RS-232 interfaces. Includes user's guide. Order cables separately. See accessories.
Rugged Linear Imaging

The ImageTeam 5800 Industrial image readers are designed and built to handle today's (and tomorrow's) toughest industrial applications. The first industrial class readers to bring you Hand-Held's industry-leading image technology, allowing you to read barcodes at ranges exceeding 82 inches (208 cm). In addition to read range, the ImageTeam 5800's key differentiator is its rugged packaging. IP54 rating, impact absorbing, shock resistant housing ensures years of peak performance even in extreme temperatures

Technical Information

  • Form Factor: Handheld Scanner
  • Resolution: 7.5 mil(s)
  • Symbologies Supported:
    • Codabar
    • PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Matrix 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • China Post
    • RSS
    • Code 39
    • China Postal Code
  • Scanner Type: Imager
  • Scan Rate: 270 Scans/sec
  • Interface Options:
    • Keyboard Wedge
    • TTL level RS-232
    • IBM 46XX
    • Wand
    • USB
  • Interface Connectivity: Corded
  • Depth of Field:
    • 6.5 - 15"@7.5mils
    • 2.5 - 28" - 100% UPC
    • 2.5 - 31"@15mils
    • 1.5 - 42"@20mils
    • 4 - 82"@55mils

General Information

Physical Characteristics

  • Dimensions: 6.4" (162.56mm) x 3.2" (81.28mm) x 5.3" (134.62mm)
  • Weight: 7.5 oz

Agency Approvals

  • Agency Approvals:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • UL
    • cUL
    • TUV

Environmental Conditions

  • Temperature:
    • -22°F (-30°C) to 122°F (50°C) Operating
    • -40°F (-40°C) to 140°F (60°C) Storage
  • Humidity: 0 to 95% Non-condensing

Other

  • Package Contents:
    • IMAGETEAM 5800 Standard Range Industrial Barcode Scannerr
    • User's Guide

Warranty

  • Manufacturer Warranty: 3 Year(s)

Full specifications (PDF)

Full specifications (PDF)

Brand Hand Held
Model ImageTeam 5800
Scanner Capability 1D
Scanner Type Imager
