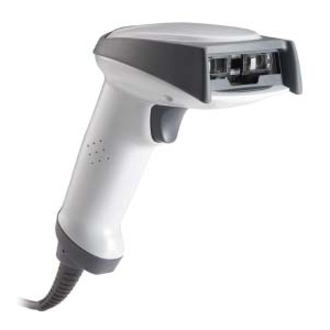

Hand Held ImageTeam 5600 – Barcode Scanner – 1D

Part Number: 5600SR150-0F00
Model: ImageTeam 5600
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D
Scanner Type
Imager

Product Description:

  commercial and retail linear imager with USB interface. Includes user's guide, UHOLDER and Commercial USB Cable - 42206161-01. Color: Black
Explore all Hand Held ImageTeam 5600 Barcode Scanners
Add to Quote
Hand Held 5600SR150-0F00 Barcode Scanner
Hand Held 5600SR150-0F00 Barcode Scanner
Hand Held 5600SR150-0F00 Barcode Scanner
Hand Held 5600SR150-0F00 Barcode Scanner Hand Held 5600SR150-0F00 Barcode Scanner Hand Held 5600SR150-0F00 Barcode Scanner
Full specifications (PDF)

Hand Held ImageTeam 5600 Barcode Scanner Model Overview

The ImageTeam 5600 is the most powerful linear (1-D) imager ever produced for use in retail & commercial applications. The ImageTeam 5600 has a read range out to 24 inches on barcodes used in retail applications making this a good choice for POS applications where heavy or bulky items are being scanned.
Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • Codabar
  • Code 3 of 9 including PARAF
  • Interleaved 2 of 5
  • Code 2 of 5
  • Matrix 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • UPC
  • EAN/JAN
  • Code 25
  • China Postal Code
  • RSS
  • GTIN Compliant
Light Source:
LED
Image Sensor Type:
Linear
Scan Rate:
270 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 4" - 14"@7.5mil
  • 2" - 18"@10mil - 80% UPC
  • 1" - 24"@13mil - 100% UPC
  • 1" - 36"@20mil
Cable Type Included:
USB
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Form Factor:
Handheld
Color:
Black
Height:
6.2"
Width:
3.2"
Depth:
5.3"
Weight (Approximate):
6.50 oz
Miscellaneous
Package Contents:
  • 5600 Handheld Bar Code Reader
  • Straight Commercial USB cable
  • User's guide
Additional Information:

Supported Interfaces:

  • TTL level RS-232
  • USB
  • Keyboard Wedge
  • Wand Emulation
  • TTL level Serial Wedge
  • IBM 46XX

    • Platform Supported:
    PC
    Certifications & Standards:

    Emissions:

    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive

    Laser classification:

    • IEC60825-1 Class 1

    Electrical:

    • UL
    • cUL listed
    • TuV
    Warranty
    Limited Warranty:
    5 Year
    Item Numbers
    UNSPSC: 43211701
