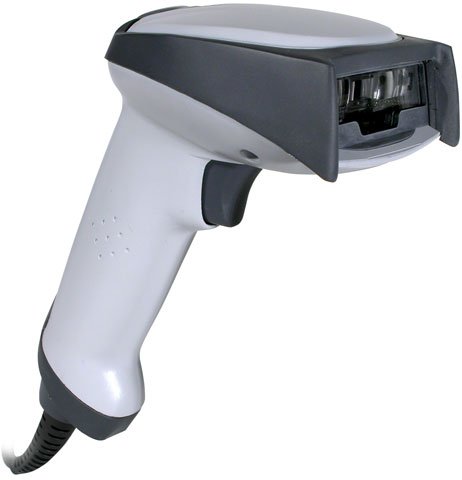

Hand Held ImageTeam 5600 – Barcode Scanner – 1D

Part Number: 5600SR050-0A00
Model: ImageTeam 5600
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D
Scanner Type
Imager

Product Description:

  commercial and retail linear imager Keyboard Wedge kit: Scanner, PS/2 'Y' cable, & user's guide.
Explore all Hand Held ImageTeam 5600 Barcode Scanners
Add to Quote
Hand Held 5600SR050-0A00 Barcode Scanner
Hand Held 5600SR050-0A00 Barcode Scanner
Hand Held 5600SR050-0A00 Barcode Scanner
Hand Held 5600SR050-0A00 Barcode Scanner Hand Held 5600SR050-0A00 Barcode Scanner Hand Held 5600SR050-0A00 Barcode Scanner
Full specifications (PDF)

Hand Held ImageTeam 5600 Barcode Scanner Model Overview

The ImageTeam 5600 is the most powerful linear (1-D) imager ever produced for use in retail & commercial applications. The ImageTeam 5600 has a read range out to 24 inches on barcodes used in retail applications making this a good choice for POS applications where heavy or bulky items are being scanned.
Hand Held 5600SR050-0A00 Barcode Scanner Overview

IMAGETEAM 5600 High Performance Retail Linear Imager is the most powerful linear imager ever produced. Powered by Hand Held Products exclusive Adaptus Imaging Technology, the IT5600 delivers superior bar code reading performance, prepares you for emerging standards such as 2005 Sunrise, and helps your employees work more efficiently. The IT5600 extended read range is ideal for handling bulky and heavy items found in most retail and commercial applications, this means less reaching and straining for your employees and a better shopping experience for your customers.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • PARAF
  • Interleaved 2 of 5
  • Code 2 of 5
  • Matrix 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • UPC
  • EAN/JAN
  • China Postal Code
  • RSS
  • Codabar
Light Source:
LED
Image Sensor Type:
Imager
Scan Rate:
270 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 4" - 14"@7.5mil
  • 1" - 24"@13mil - 100% UPC
  • 1" - 36"@20mil
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Color:
Gray
Height:
6.2"
Width:
3.2"
Depth:
5.3"
Weight (Approximate):
6.50 oz
Miscellaneous
Package Contents:
  • IMAGETEAM 5600 High Performance Retail Linear Imager
  • Keyboard Wedge Mini Din Cable
  • User's Guide
Additional Information:

Supported Interfaces:

  • Keyboard Wedge
  • Serial
  • USB

    • Platform Supported:
    PC
    Certifications & Standards:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED

    Safety:

    • Class 1
    • UL
    • cUL listed
    • TUV
    Warranty
    Limited Warranty:
    5 Year
    Item Numbers
    UNSPSC: 43211701
