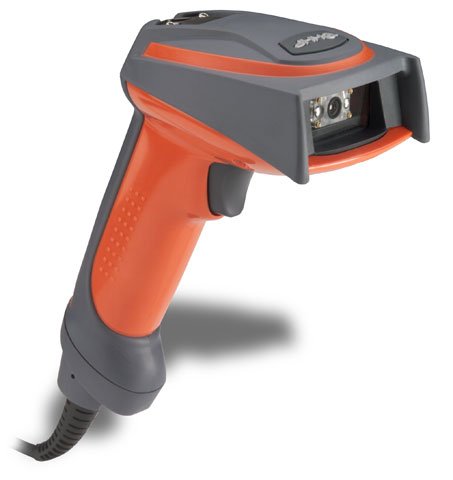

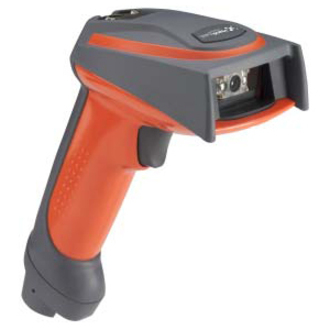

Hand Held 4800SR051C-0G00 Barcode Scanner

The Hand Held 4800SR051C-0G00 Barcode Scanner has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.
Hand Held ImageTeam 4800 - IT48002D industrial area imager with keyboard wedge, USB & RS-232 interfaces. Include user's guide. Order cables separately. See accessories..
Scanner Capability
1D
Scanner Type
Imager
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Rapidly incorporate 1D and 2D barcode information to records, spreadsheets, and databases
Read More

Need a different version? See all Hand Held ImageTeam 4800 Barcode Scanners

Discontinued Need Assistance?
Chat Now for Qty Discount
Add to Quote
Add to My Shopping List Add to Compare
Hand Held 4800SR051C-0G00 Barcode Scanner
Hand Held 4800SR051C-0G00 Barcode Scanner
Hand Held 4800SR051C-0G00 Barcode Scanner Hand Held 4800SR051C-0G00 Barcode Scanner
Full specifications (PDF)
Hand Held ImageTeam 4800 Barcode Scanner Model Overview
The ImageTeam 4800 Industrial 2D Area Imager is the first handheld area image reader powered by Adaptus imaging technology. Adaptus technology decodes faster, farther, and future-proofs your investment.
Hand Held 4800SR051C-0G00 Barcode Scanner Overview

The IMAGETEAM 4800 Bar Code Reader is the first handheld area image reader powered by Adaptus Imaging Technology. Adaptus technology decodes faster, farther, and future-proofs your investment. This means your workers spend less time trying to capture data, and more time using this data to make your business more cost efficient. It has Standard Range Imager and Green LED Aimer.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • PDF 417
  • Micro PDF-417
  • MaxiCode
  • DataMatrix
  • QR Code
  • Aztec
  • Aztec Mesas
  • Code 49
  • EAN-UCC Composite
  • Codabar
  • Code 39
  • PARAF
  • Interleaved 2 of 5
  • Code 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • UPC
  • EAN/JAN
  • RSS
  • Postnet
  • Planet Code
  • British Post
  • China Postal Code
  • Canadian Post
  • Japanese Post
  • Kix
  • OCR-A
  • OCR-B
Image Sensor Type:
Imager
Depth of Field:
  • 3" - 7.1"@8.3mil - Linear
  • 1.6" - 12.7"@13mil - UPC
  • 4" - 5.7"@6.6mil - PDF417
  • 2.6" - 8.5"@10mil - PDF417
  • 1.8" - 9.7"@15mil - Data Matrix
  • 1.5" - 12.5"@35mil - Maxi Code
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
14 V DC
Physical Characteristics
Height:
6.4"
Width:
3.2"
Depth:
5.3"
Weight (Approximate):
7.50 oz
Miscellaneous
Package Contents:
  • IMAGETEAM 4800SR Bar Code Reader
  • User's guide
Additional Information:

Supported Interfaces:

  • Keyboard Wedge
  • TTL level RS-232
  • IBM 468X/469X
  • Wand Emulation
  • USB

    • Platform Supported:
    PC
    Certifications & Standards:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED

    Safety:

    • Class 1
    • UL
    • cUL
    • TÜV
    Warranty
    Limited Warranty:
    5 Year
    Item Numbers
    UNSPSC: 43211701
    Get help from a Barcoding Expert!

    What type of Barcode are you scanning?

    The Hand Held 4800SR051C-0G00 Barcode Scanner is also known as HHP-4800SR051C0G or 4800SR051C0G00.
