Hand Held 4800SR051C-0F00 Barcode Scanners


0.0

(No reviews)

Be the first to

Write a Review

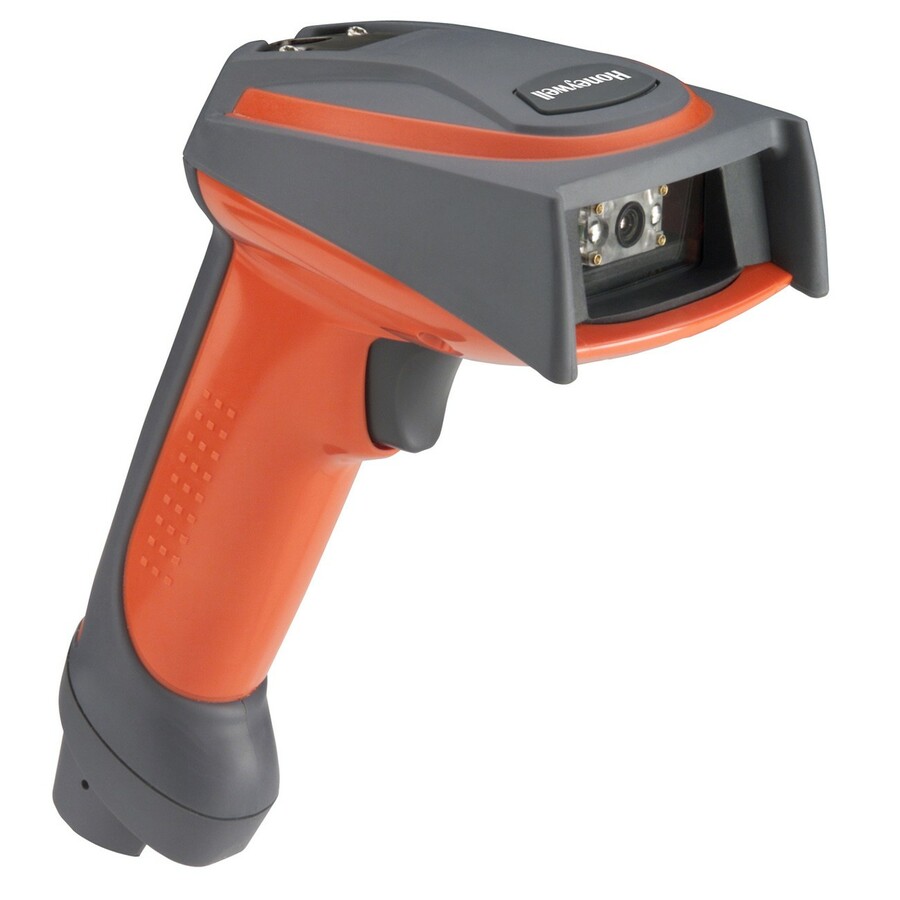

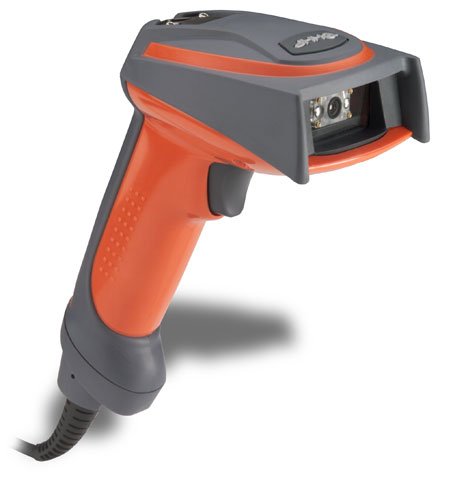

Hand Held ImageTeam 4800 - IT48002D industrial area imager USB kit: Scanner, USB cable, & user's guide.
Rugged 2D Imaging

The ImageTeam 4800 Industrial 2D Area Imager is the first handheld area image reader powered by Adaptus imaging technology. Adaptus technology decodes faster, farther, and future-proofs your investment.

Technical Information

  • Form Factor: Handheld Scanner
  • Barcode Dimension: 1D/2D
  • Resolution: 8 mil(s)
  • Symbologies Supported:
    • PDF 417
    • Micro PDF417
    • MaxiCode
    • DataMatrix
    • QR Code
    • Aztec
    • Code 49
    • EAN-UCC Composite
    • Codabar
    • Code 39
    • PARAF
    • Interleaved 2 of 5
    • Code 11
    • Code 93
    • Code 128
    • UPC
    • EAN/JAN
    • Postnet
    • Planet Code
    • British Post
    • China Post
    • Canadian Post
    • Japanese Post
    • KIX(Netherlands) Post
    • Code 2 of 5
    • Aztec Mesa
    • RSS
    • OCR-A
    • OCR-B
  • Scanner Type: Imager
  • Interface Options:
    • Keyboard Wedge
    • TTL level RS-232
    • IBM 468X/469X
    • Wand Emulation
    • USB
  • Interface Connectivity: Corded
  • Input Voltage Range: 4.5 to 12 V DC
  • Depth of Field:
    • 2.9 - 7"@8mils - Linear
    • 1.9 - 11.9"@13mils - UPC
    • 1.4 - 12.4"@35mils - MaxiCode

General Information

  • Manufacturer: Hand Held Products
  • Product Line: IMAGETEAM
  • Product Name: IMAGETEAM 4800 Industrial 2D Imager

Physical Characteristics

  • Dimensions: 6.4" (162.56mm) x 3.2" (81.28mm) x 5.3" (134.62mm)
  • Weight: 7.5 oz

Agency Approvals

  • Agency Approvals:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • Class 1
    • UL
    • cUL listed
    • TUV

Environmental Conditions

  • Temperature:
    • -10°C (14°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity: 0 to 95%

Other

  • Cables Included: USB

Warranty

  • Manufacturer Warranty: 5 Year(s)

Full specifications (PDF)

Full specifications (PDF)

Brand Hand Held
Model ImageTeam 4800
Scan Pattern Area
Scanner Type Imager
Scanner Capability 2D
