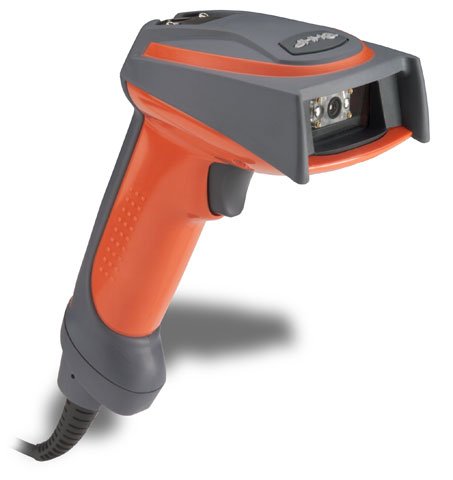

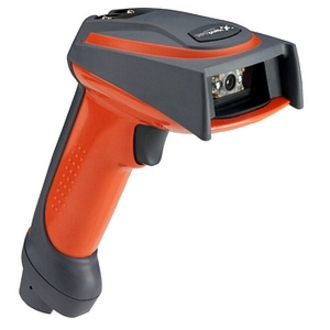

Hand Held 4800SR051C-0DAA Barcode Scanner

Hand Held ImageTeam 4800 - RS-232, User Guide, Power supply, Flex Neck Stand, Green Aimer, Keyboard wedge and Complete Decode
Rugged 2D Imaging

The ImageTeam 4800 Industrial 2D Area Imager is the first handheld area image reader powered by Adaptus imaging technology. Adaptus technology decodes faster, farther, and future-proofs your investment.

Technical Information

  • Form Factor: Handheld Scanner
  • Barcode Dimension: 1D/2D
  • Symbologies Supported:
    • Matrix
    • PDF
    • OCR
    • Codabar
    • Code 39
    • PARAF
    • Interleaved 2 of 5
    • Code 2 of 5
    • Code 93
    • Code 11
    • Code 128
    • UPC
    • EAN/JAN
    • RSS
    • Postnet
    • Planet Code
    • British Post
    • China Post
    • Canadian Post
    • Japanese Post
    • KIX(Netherlands) Post
  • Scanner Type: Imager
  • Interface Options:
    • Keyboard Wedge
    • TTL level Serial Wedge
    • IBM 468X/469X
    • Wand Emulation
    • USB
  • Interface Connectivity: Corded
  • Input Voltage Range: 4.5 to 12 V DC
  • Depth of Field:
    • 2.9 - 7"@8mils - Linear
    • 1.9 - 11.9"@13mils - UPC
    • 3.9 - 5.7"@6.6mils - PDF417
    • 2.5 - 8.4"@10mils - PDF417
    • 3.1 - 5.9"@15mils - Data Matrix
    • 1.4 - 12.4"@35mils - MaxiCode

General Information

  • Manufacturer: Hand Held Products
  • Product Line: IMAGETEAM
  • Product Name: IMAGETEAM 4800 Industrial 2D Area Imager

Physical Characteristics

  • Dimensions: 6.4" (162.56mm) x 3.2" (81.28mm) x 5.3" (134.62mm)
  • Weight: 7.5 oz

Agency Approvals

  • Agency Approvals:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1 LED
    • Class 1
    • UL
    • cUL listed
    • TÃúV

Other

  • Package Contents:
    • IMAGETEAM 4800 Industrial 2D Area Imager
    • RS-232 cable (42203758-04)
    • Domestic Power Supply (PS5U-41)
    • Flex Neck Stand (HFSTAND5)
    • User's Guide
  • Cables Included: RS-232

Environmental Conditions

  • Temperature:
    • -10°C (14°F) to 50°C (122°F) Operating
    • -40°C (-40°F) to 60°C (140°F) Storage
  • Humidity: 0 to 95%

Warranty

  • Manufacturer Warranty: 5 Year(s)

Full specifications (PDF)


Recommended Accessories for Model: Hand Held ImageTeam 4800 Scanner
Hand Held Cable (42206161-01E)
USB, black, Type A, 2.6m (8.5'), straight, host power
In Stock
$20.10
+ Add to Quote
Honeywell Stand (HFSTAND5E)
Black flex neck stand holder for 4600, 4800i, 3800r and 3800i (for hands-free and presentation scanning)
In Stock
$29.40
+ Add to Quote
Honeywell Cable (42206202-03E)
USB, Host Powered, 12.1 feet, Coiled, Type A, Black.
In Stock
$69.80
+ Add to Quote
Honeywell Accessories (TOOLBAL)
Take-Up Reel/Balancer, Compatible with Honeywell 4800 Scanner.
In Stock
$90.60
+ Add to Quote
Hand Held Cable (42206212-02E)
Combo kit with resistor Connector: Mini Din or Din PCs and PS/2 Length: 9.2 ft. (2.8m)
Temporarily out of stock; available to order
$44.40
+ Add to Quote

The Hand Held 4800SR051C-0DAA is also known as HandHeld HHP-4800SR051C0DAA or 4800SR051C0DAA .
